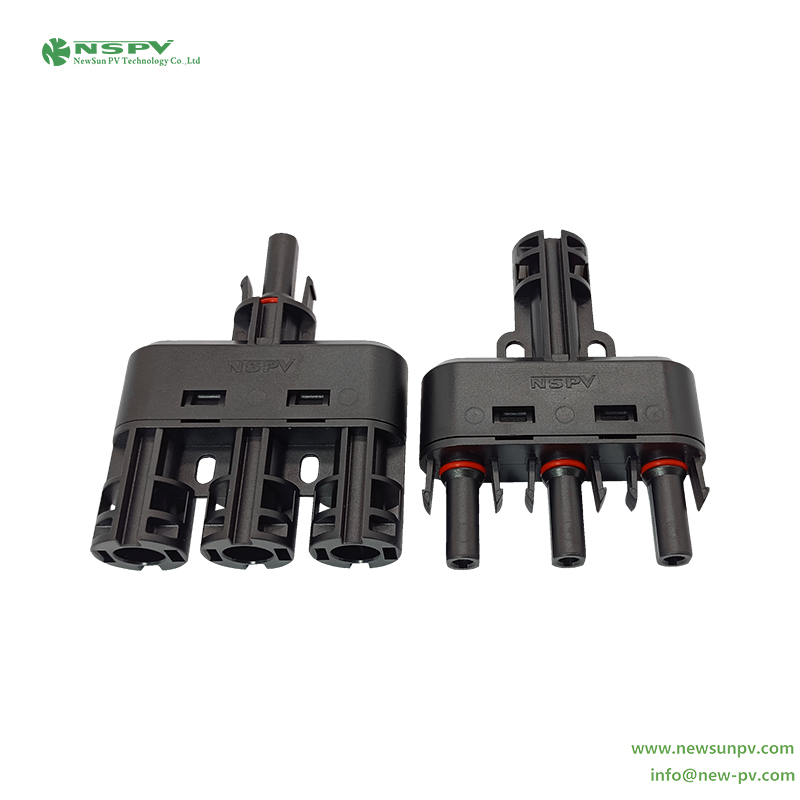

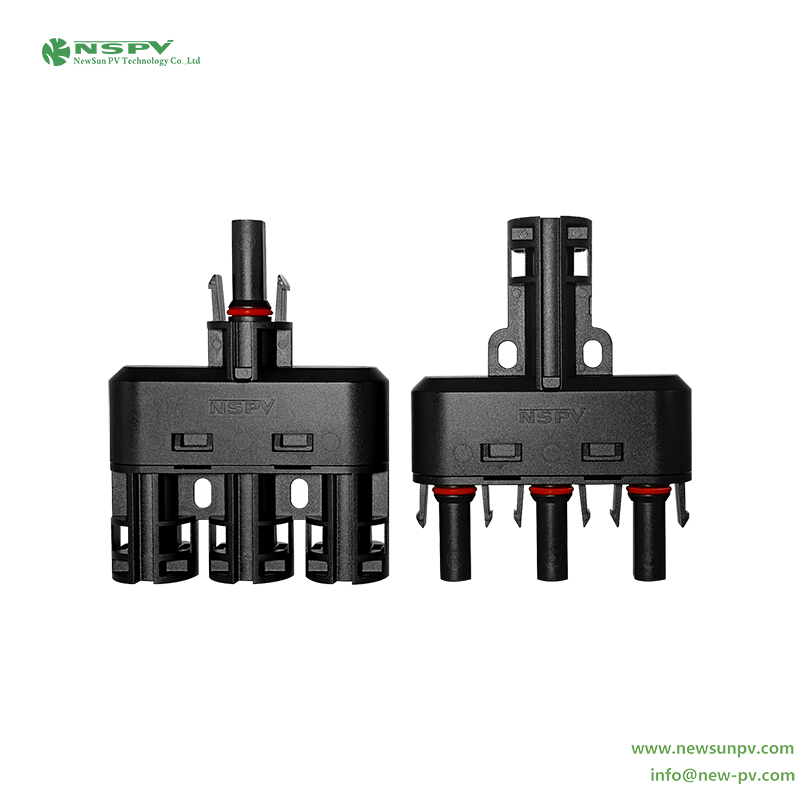

1500VDC PV4.0 3in1 solar branch connector
- The PV4.0 DC solar branch connector is used for solar system assemble, the waterproof is IP68, it is a detachable, new type connector, good stable specification, convenient to assemble.
- INQUIRY
PV4.0 DC Solar Connector Product Specifications
| Product Specifications | |
| Insulation material | PPE |
| Rated current | 35(TUV) |
| Rated voltage | 1500VDC |
| Test voltage | 8KV(50Hz,Imin) |
| Typical contact resistance | ≤0.35mΩ |
| Contact material of MC4 connector | Copper, Tin, Plated |
| Degree of protection | IP68（1m,1H) |
| Safety degree | II |
| Flames class | UL94-V0 |
| Upper limiting temperature | 110°c |
| Suitable cable cross sections | 2.5~10mm2 /14~8AWG |
| Ambient temperature range | -40°c until+85°c |
