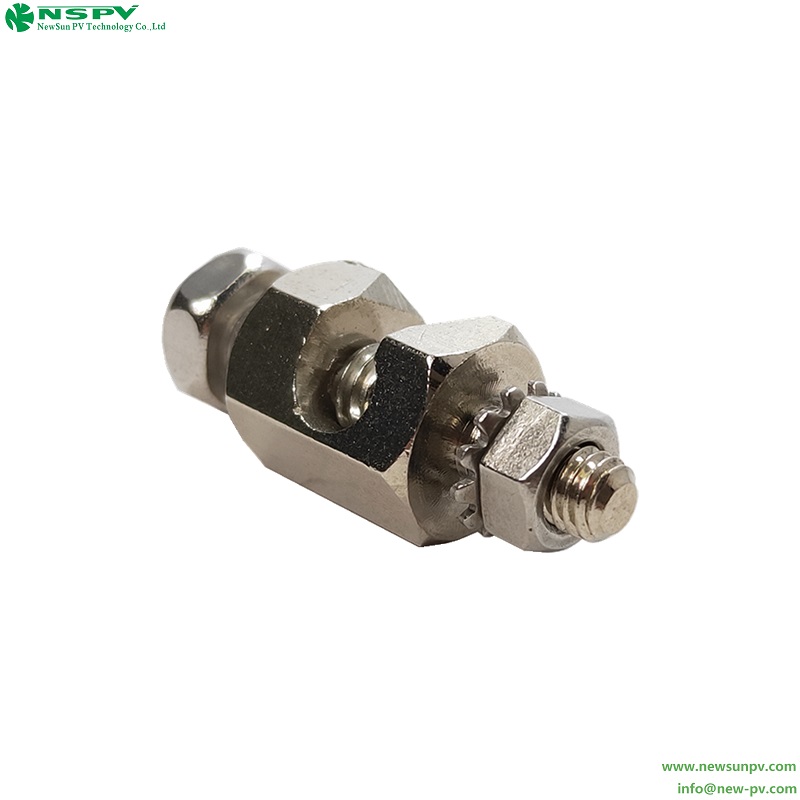

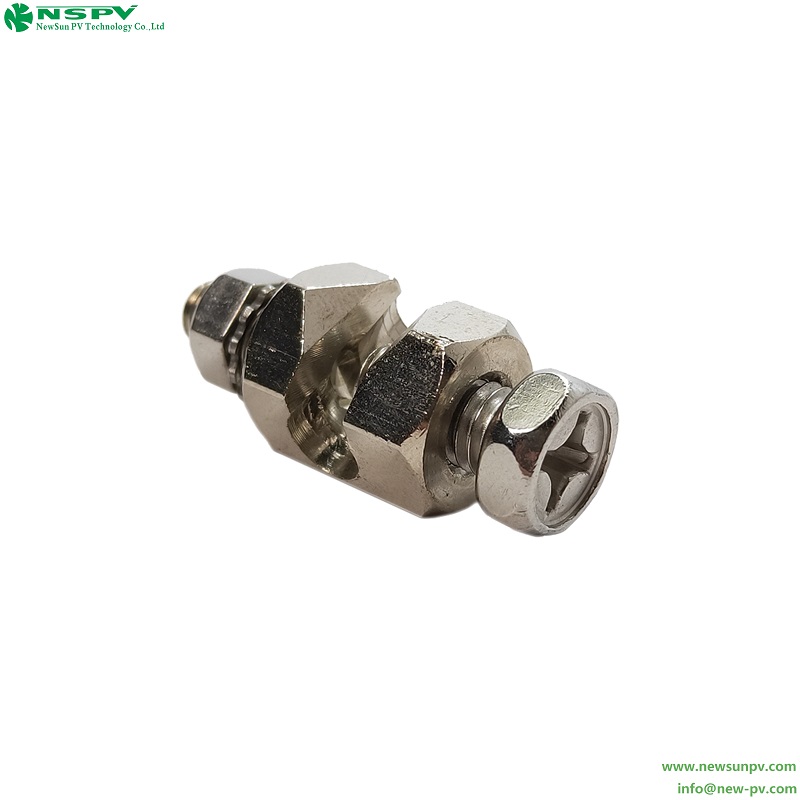

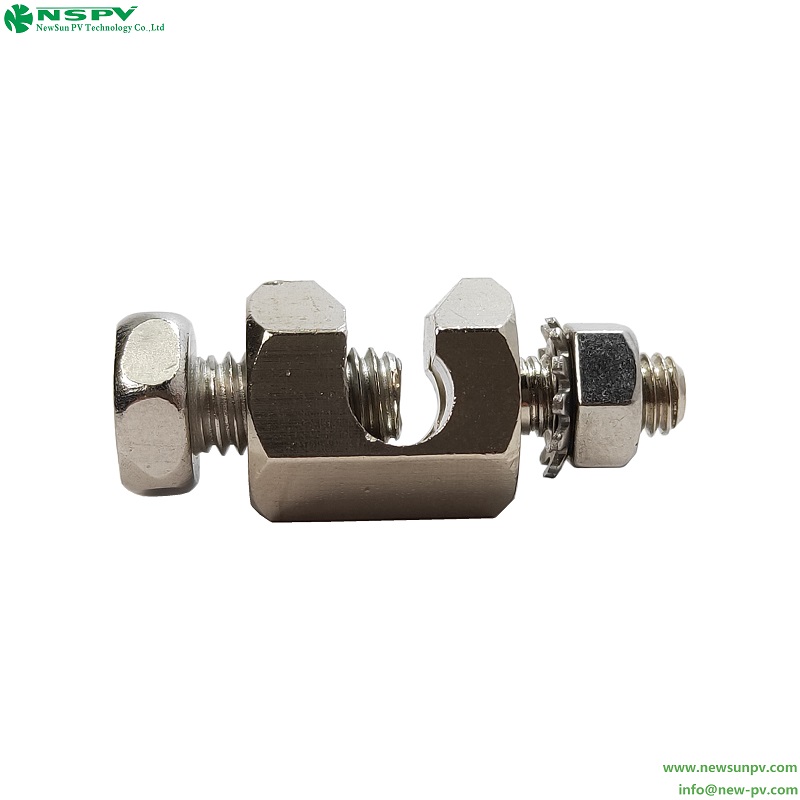

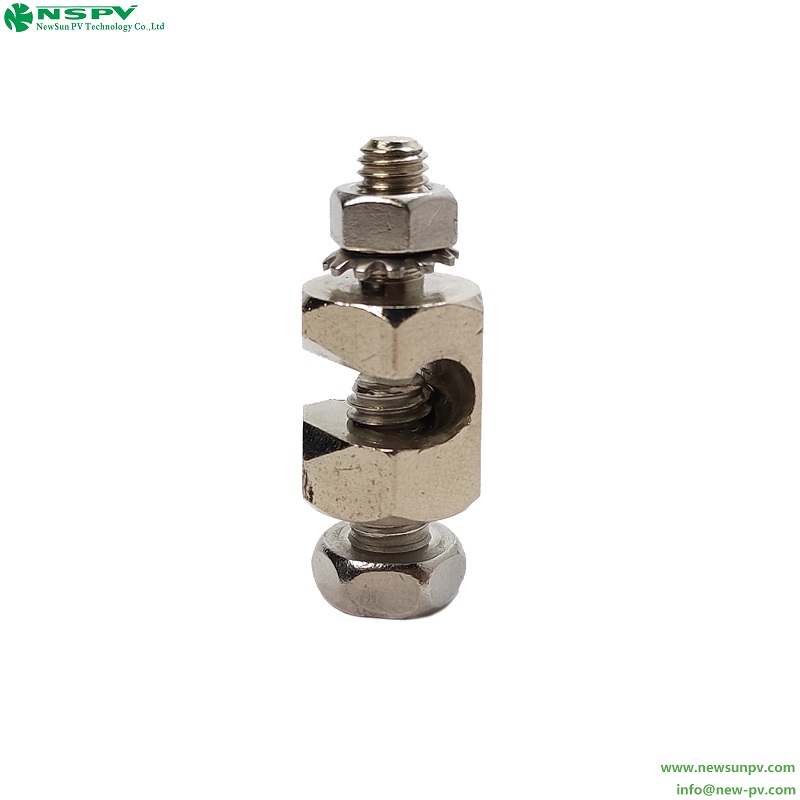

Solar grounding connector/earth lugs
- The photovoltaic ground clamp is used to fasten the cable, which makes the cable easier to manage, more beautiful and easy to install and use.
- INQUIRY
Product Description
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: NSPV
Model Number: Earth clamp
Type: Earth Clamp for solar system
Materials: Copper
Color: White
Frame Thickness Range: 1.1-4.5mm
Mounting hole diameter: diameter 5.2±0.1
Temperature: -40°C to 90°C
Suitable cable cross sections: 2.5/4.0/6.0/10mm2 & 14/12/10/6Awg

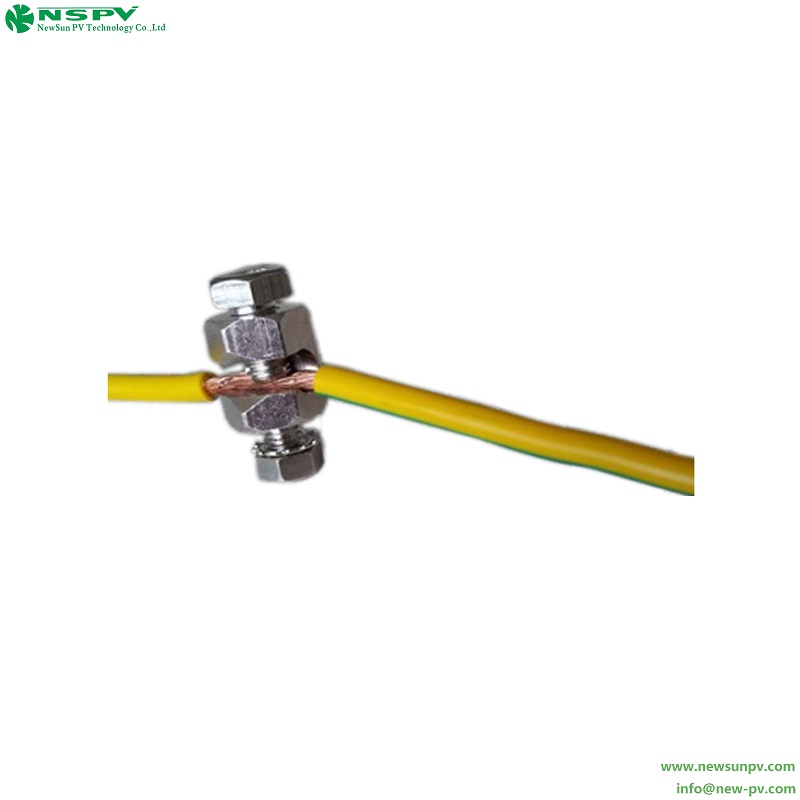

Used with: earth cable 2.5mm2-10mm2
Advantages
Earthing clamp made by copper
Clamps assembly consists of a wire bolt,used for solar power system
1Quick and easy mounting procedures.
2Rgged and compact hex bolt design made from stainless steel.
3Bottom edge feature cuts through the anodized aluminum surface when securing the hex bolt to the module frame.
4Standard tooling can be used with the hex nuts.
5Product appearance concise.
6Twenty-five Year warranty.
7Small,Flexible and Fitted various place assemble.
