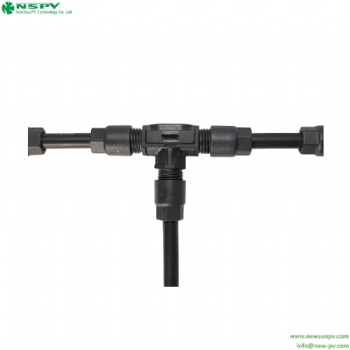

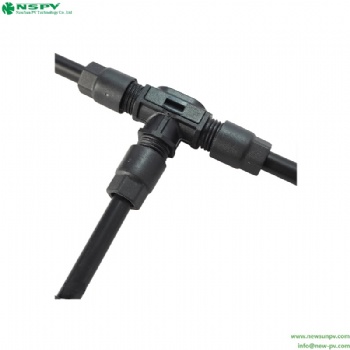

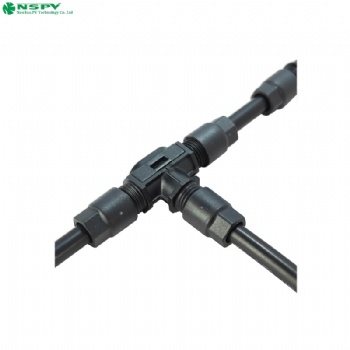

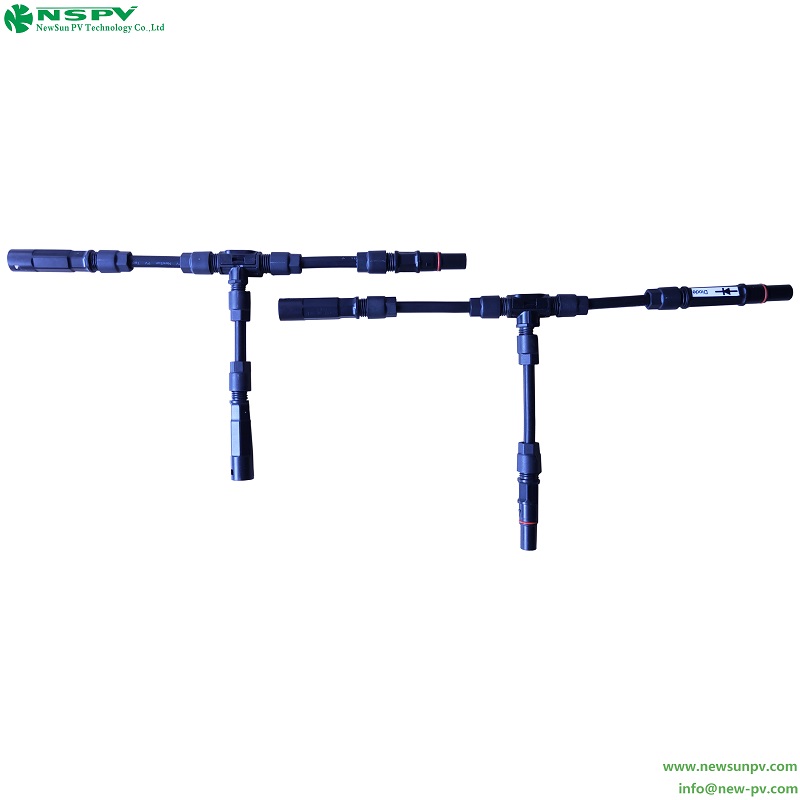

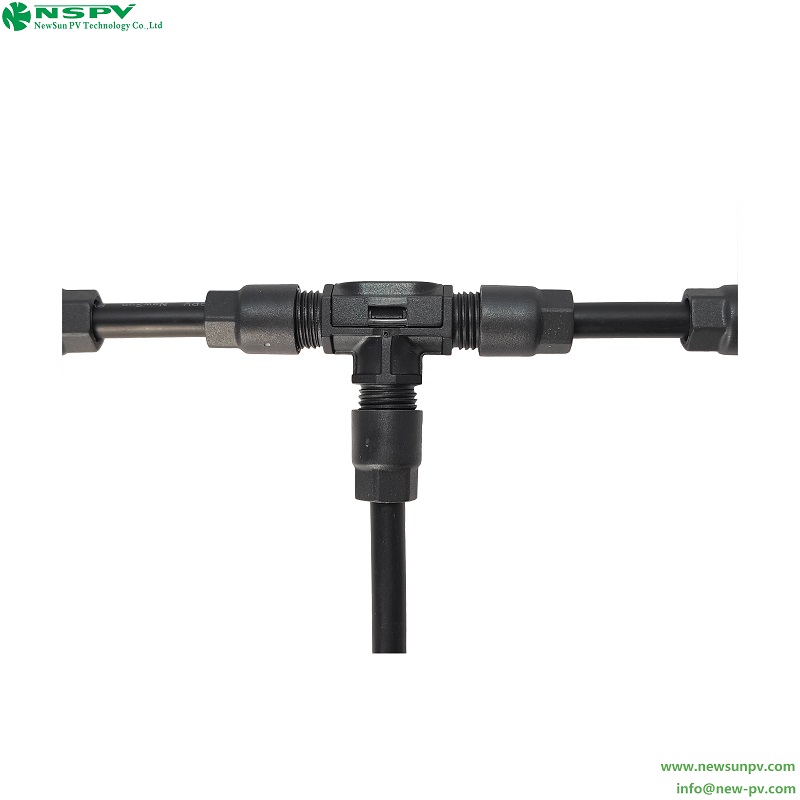

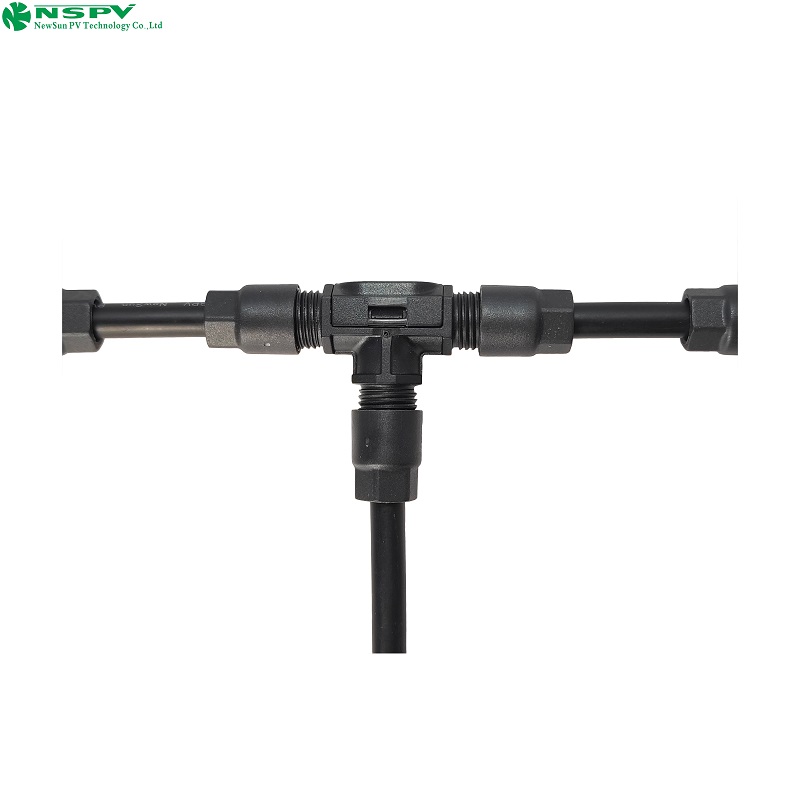

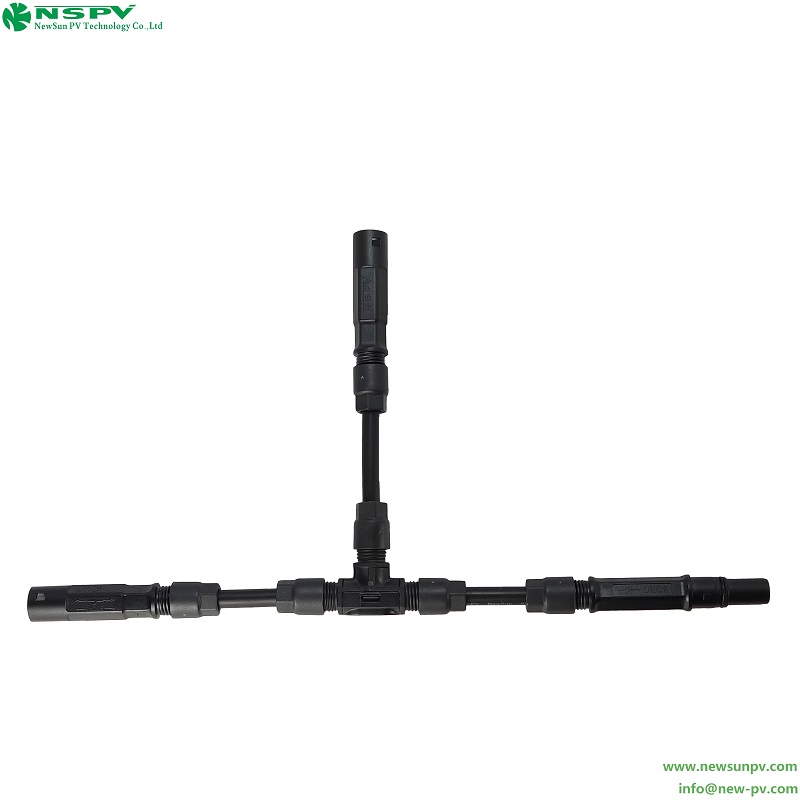

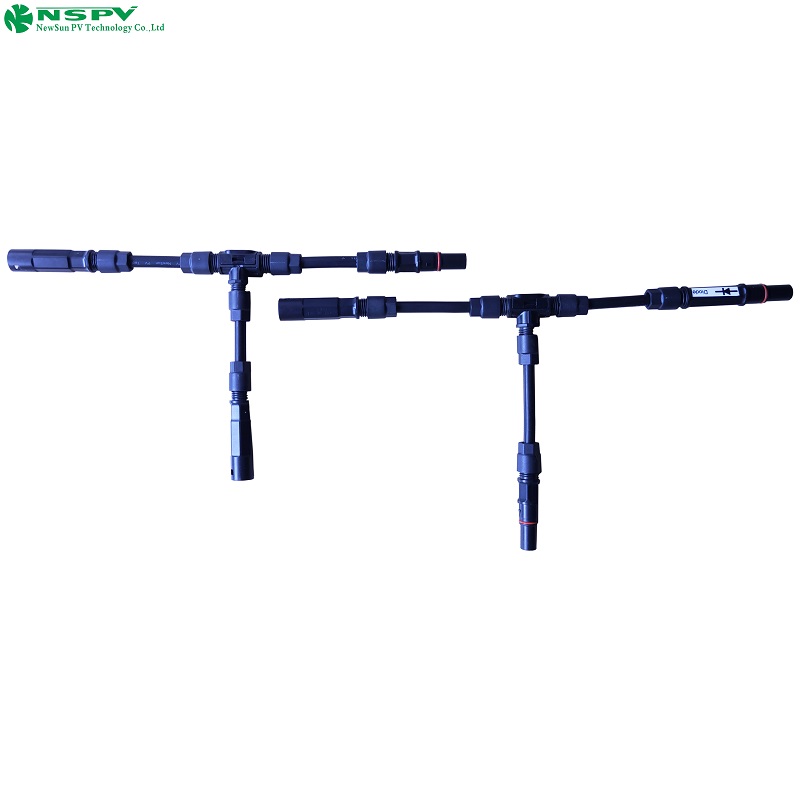

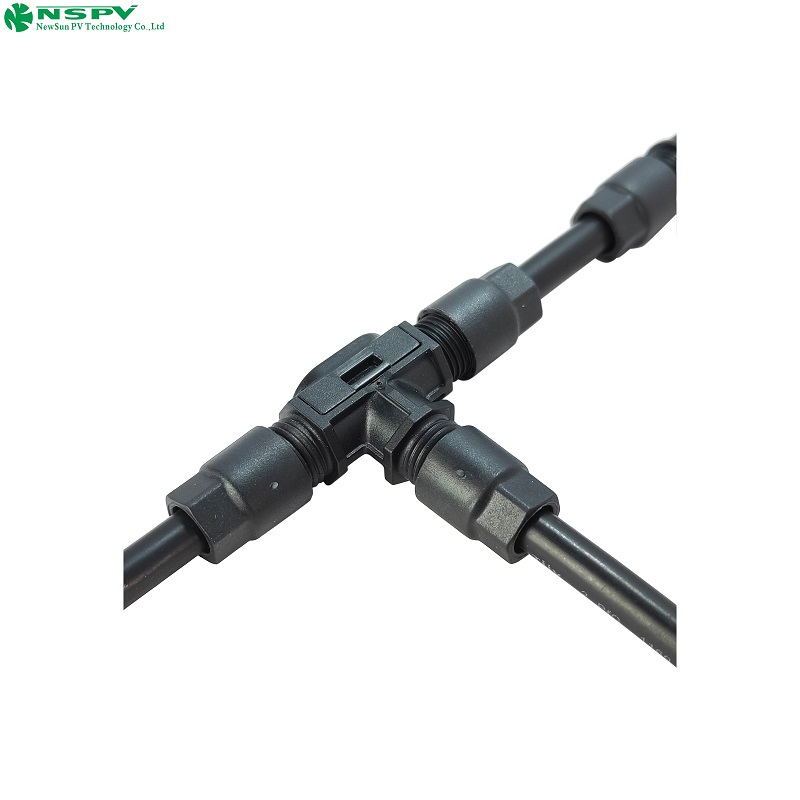

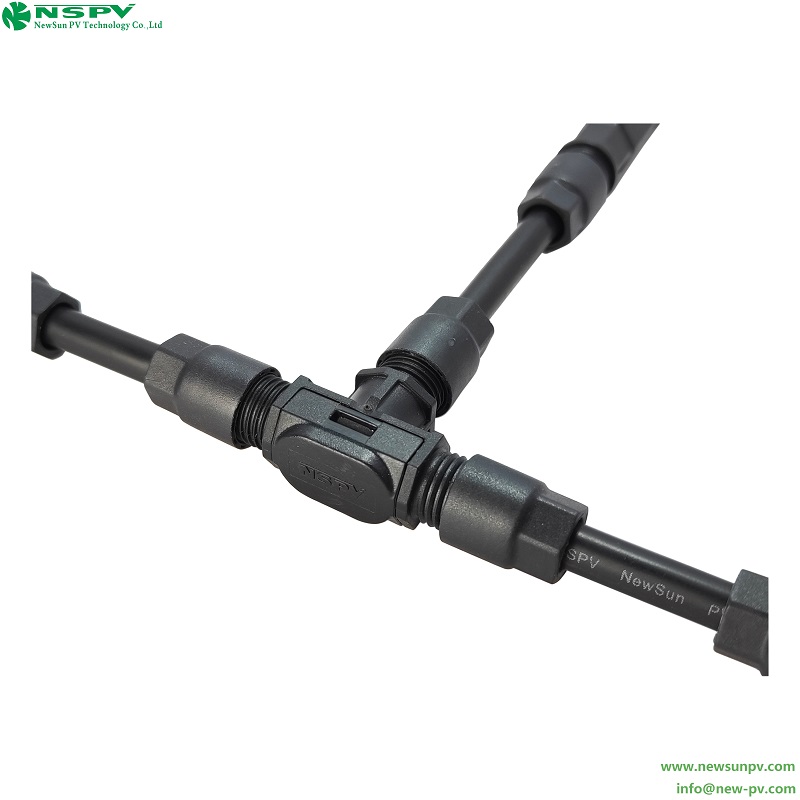

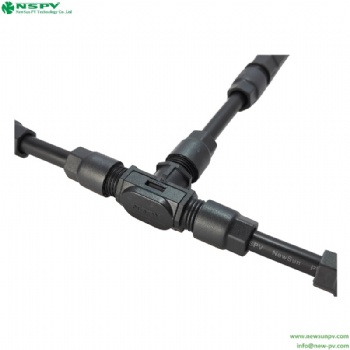

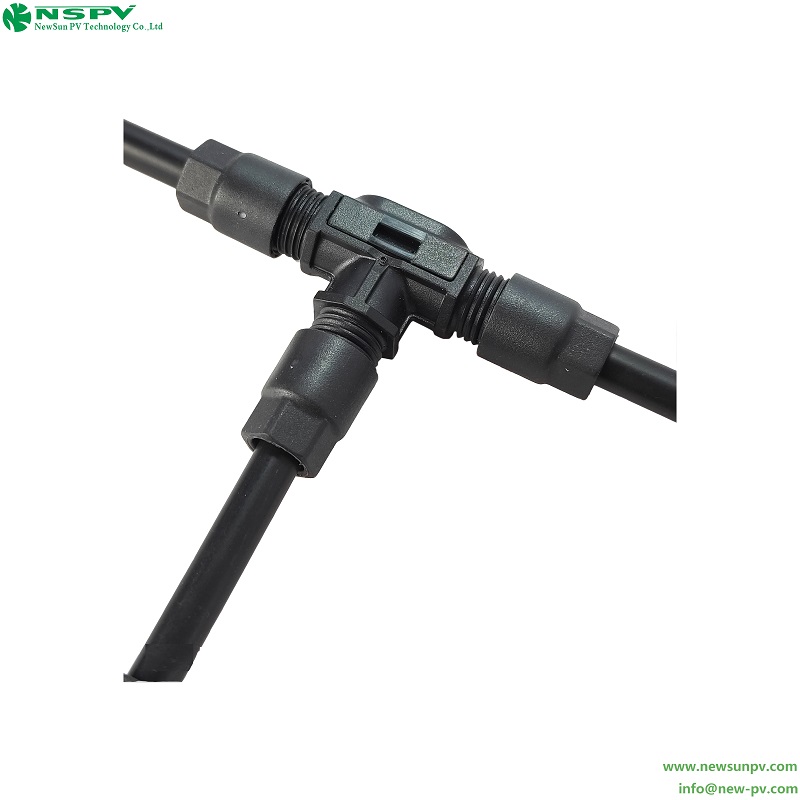

Solar L mini T branch connector
- Solar mini connectors are applicable in glass solar system with BIPV junction box.
- INQUIRY
| L_Mini Connector T Type | |||||||||
| Product Specifications | |||||||||
| Insulation material | PPE/PA | Safety degree | II | ||||||
| Rated current | 20A | Flame class | UL94-V0 | ||||||
| Rated voltage | 1500V DC | Insertion force/Withdrawal force | ≤50N / ≥50N | ||||||
| Test voltage | 8kV(50Hz,Imin) | Ambient temperature range | -40℃…+85℃(IEC) | ||||||
| Typical contact resistance | ≤0.25 mΩ | Suitable cable cross sections | 1.5~4mm2 /16-12AWG | ||||||
| Contact material | Copper,Tin plated | Connecting system | Crimp connection | ||||||
| Degree of protection | IP67 | Nut cap locking force | 1-1.5Nm | ||||||
| Cable O.D. size Max.(mm) | 6.2 | Upper limiting temperature | 110℃(IEC) | ||||||
