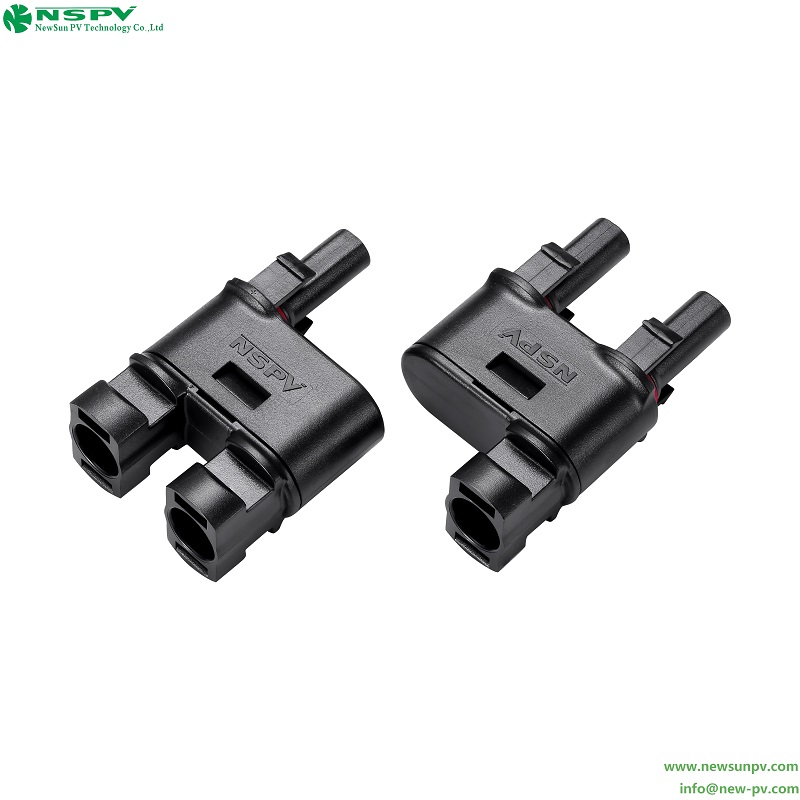

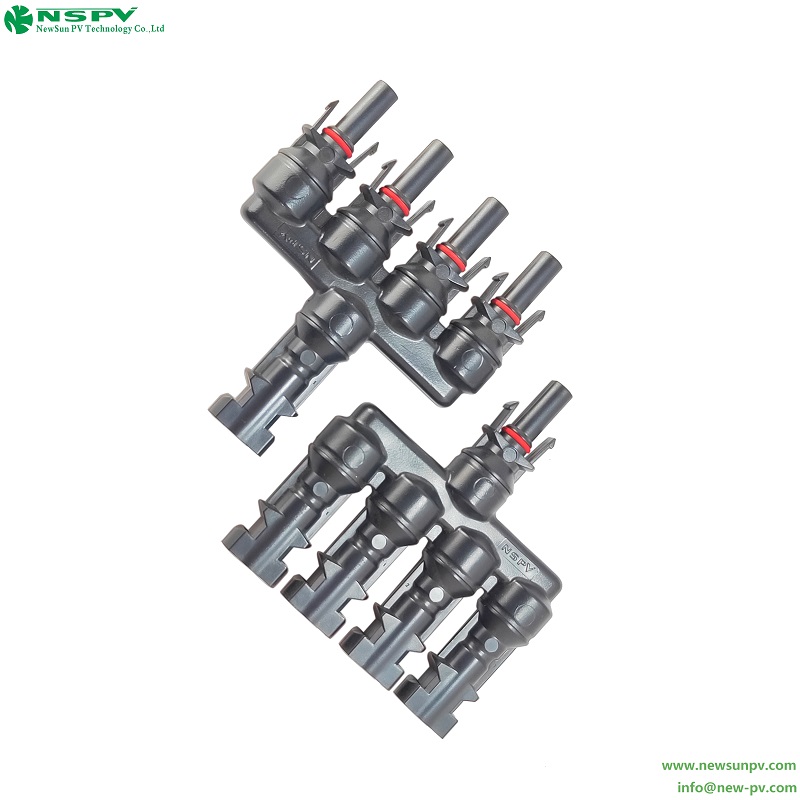

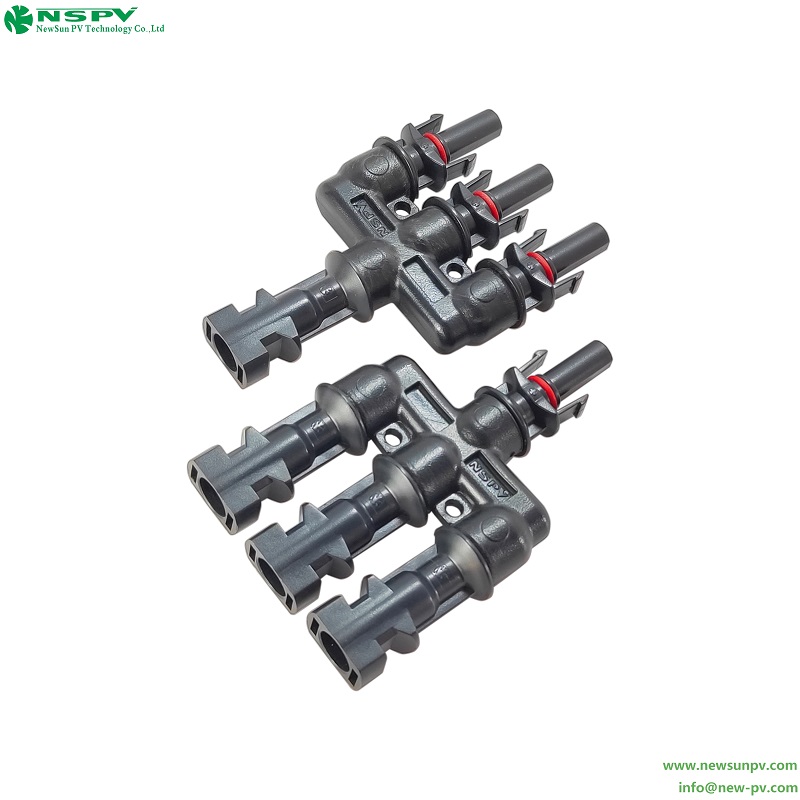

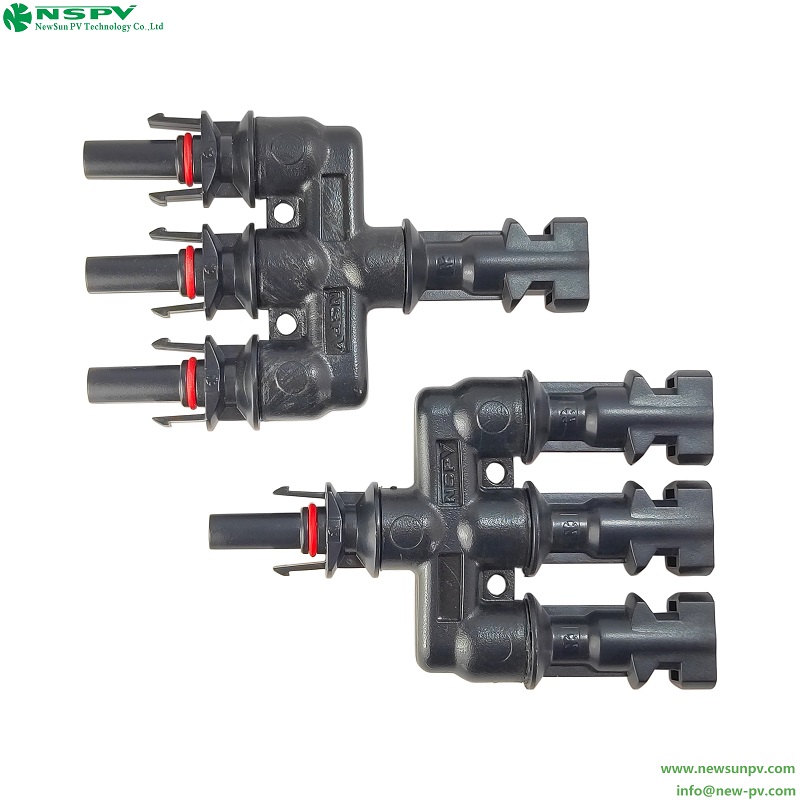

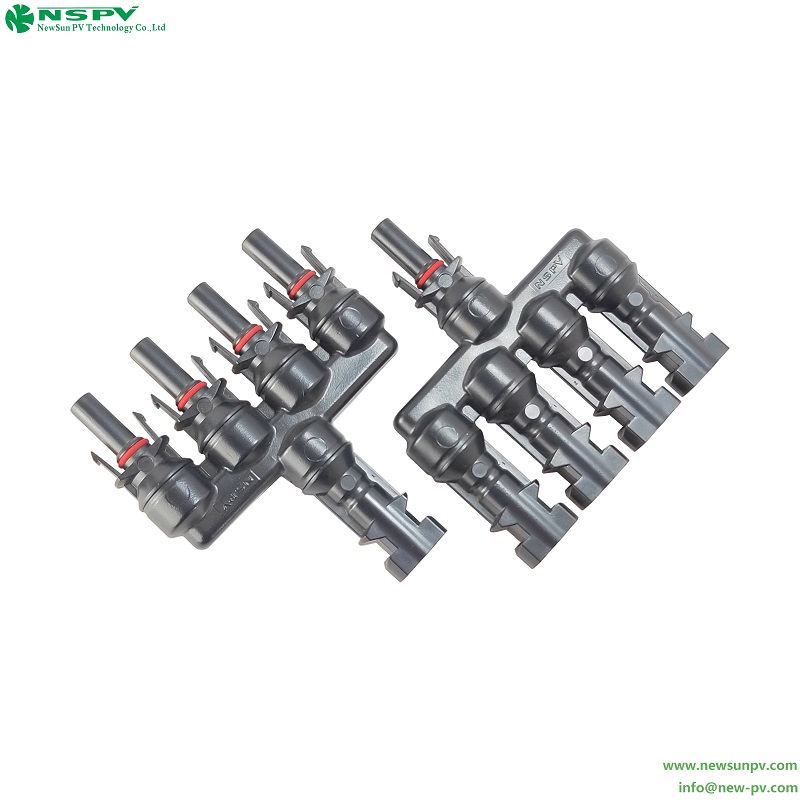

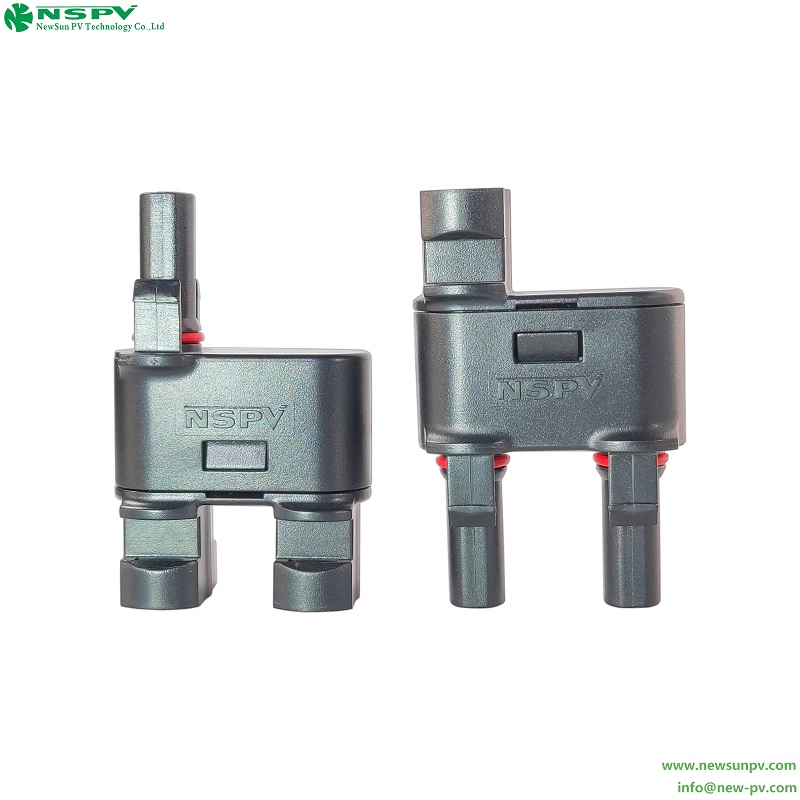

Solar 1500VDC PV4.0 2in1/3in1/4in1 branch Connector
- The PV4.0 DC solar cable connector is used for solar system assemble, the waterproof is IP68, it is a detachable, new type connector, good stable specification, convenient to assemble.
- INQUIRY
PV4.0 DC Solar Connector Product Specifications
| Product Specifications | |
| Insulation material | PPE |
| Rated current | 35(TUV) |
| Rated voltage | 1500VDC |
| Test voltage | 8KV(50Hz,Imin) |
| Typical contact resistance | <5mΩ |
| Contact material of MC4 connector | copper, Tin, Plated |
| Degree of protection | IP2X/IP68 |
| Safety degree | II |
| Flames class | UL94-V0 |
| Upper limiting temperature | 110°c |
| Withdrawal force | ≥50N |
| Insertion force | ≤50N |
| Ambient temperature range | -40°c until+85°c |
