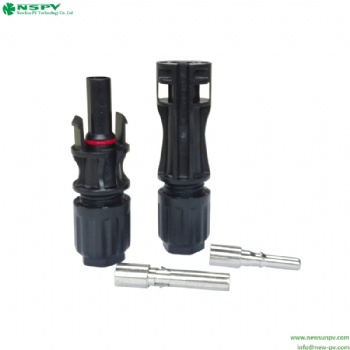

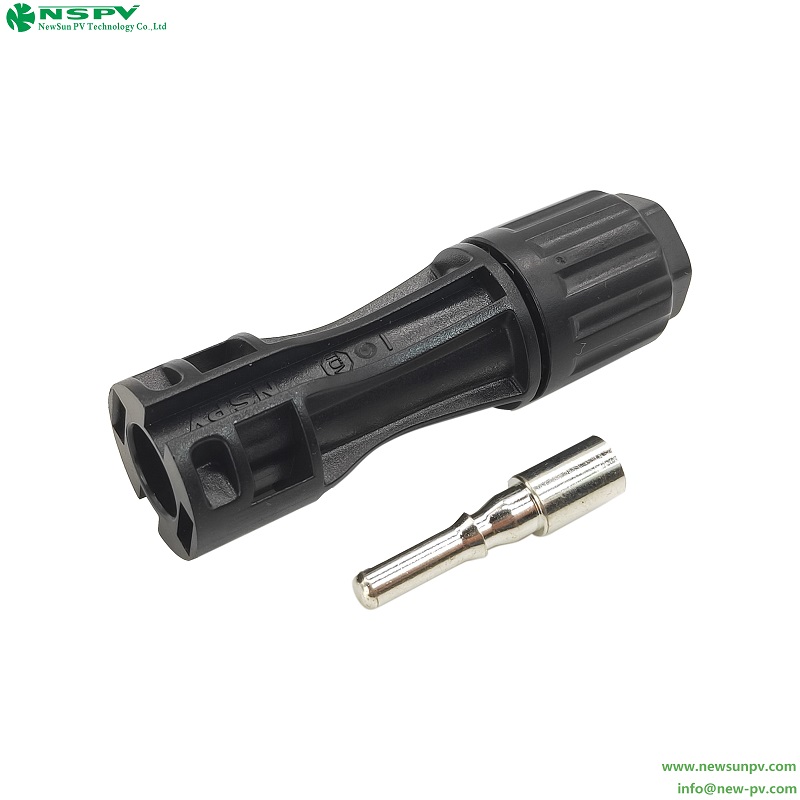

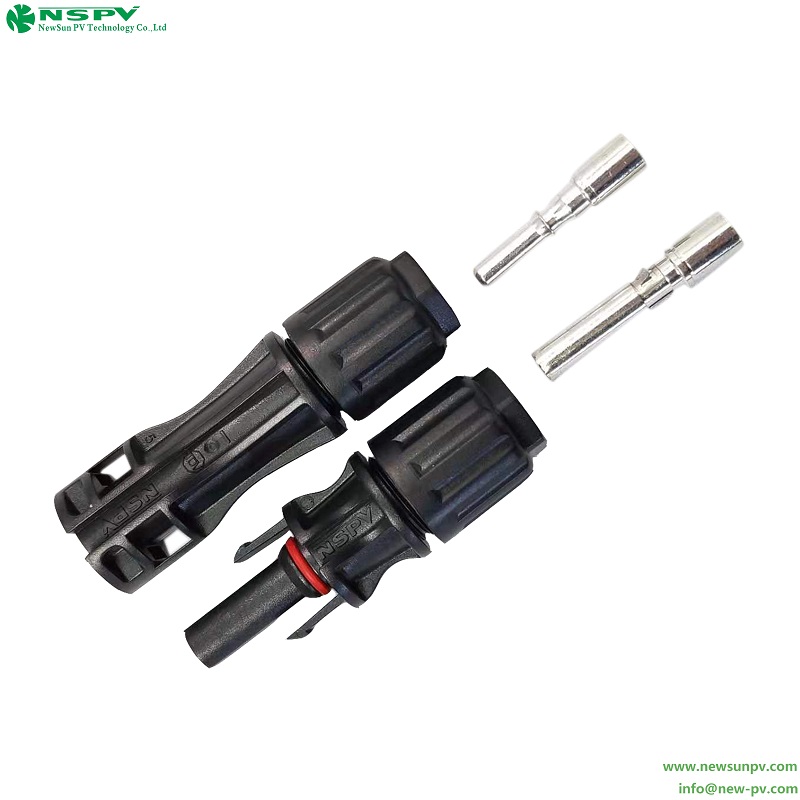

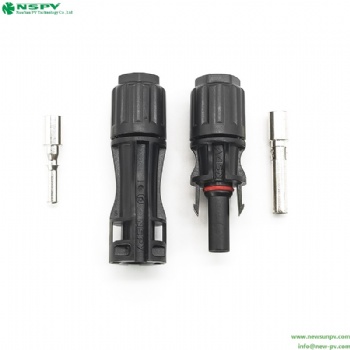

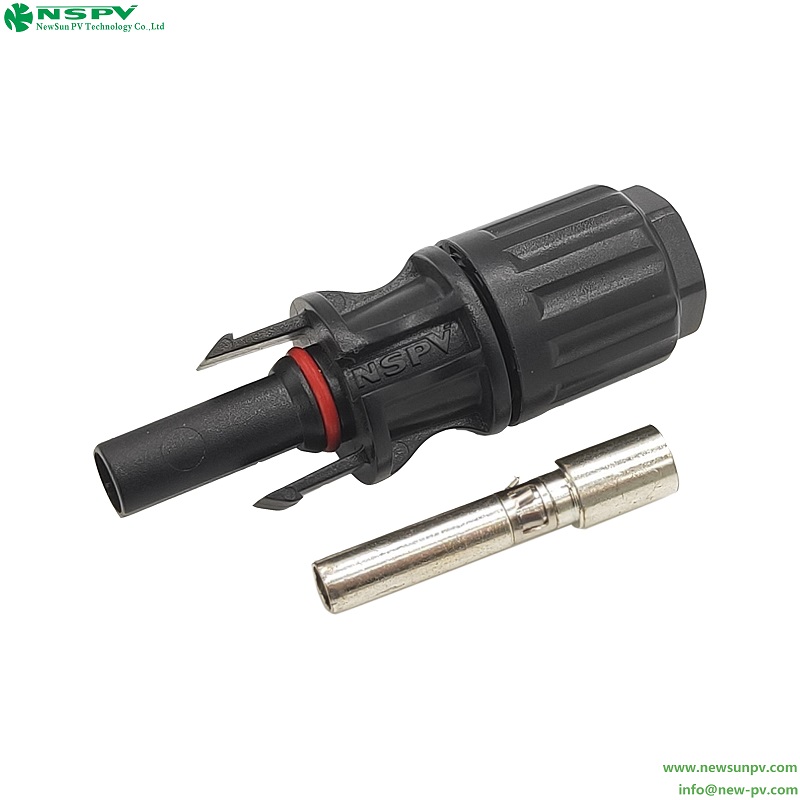

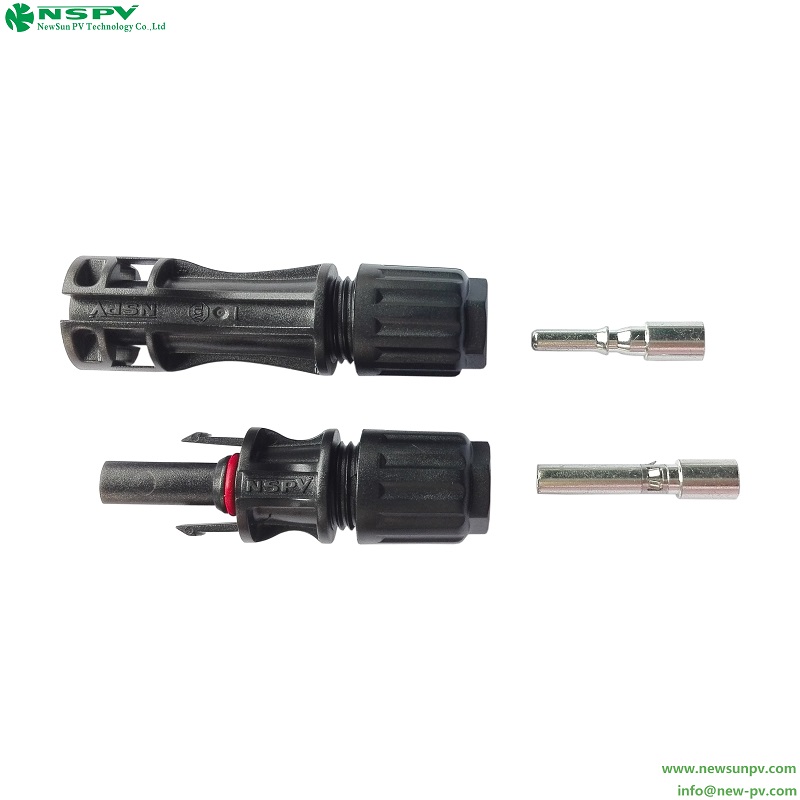

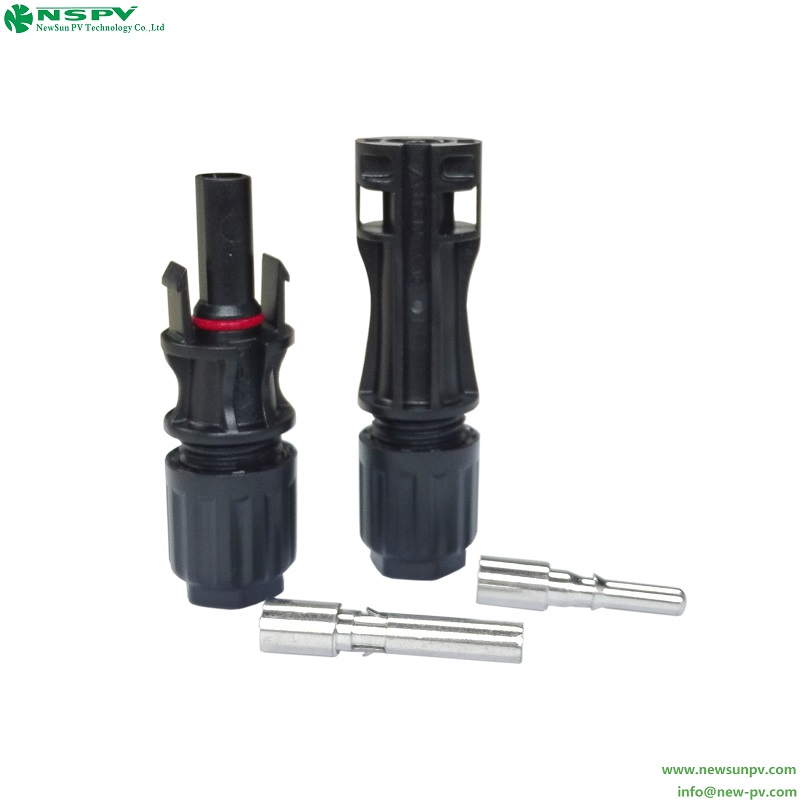

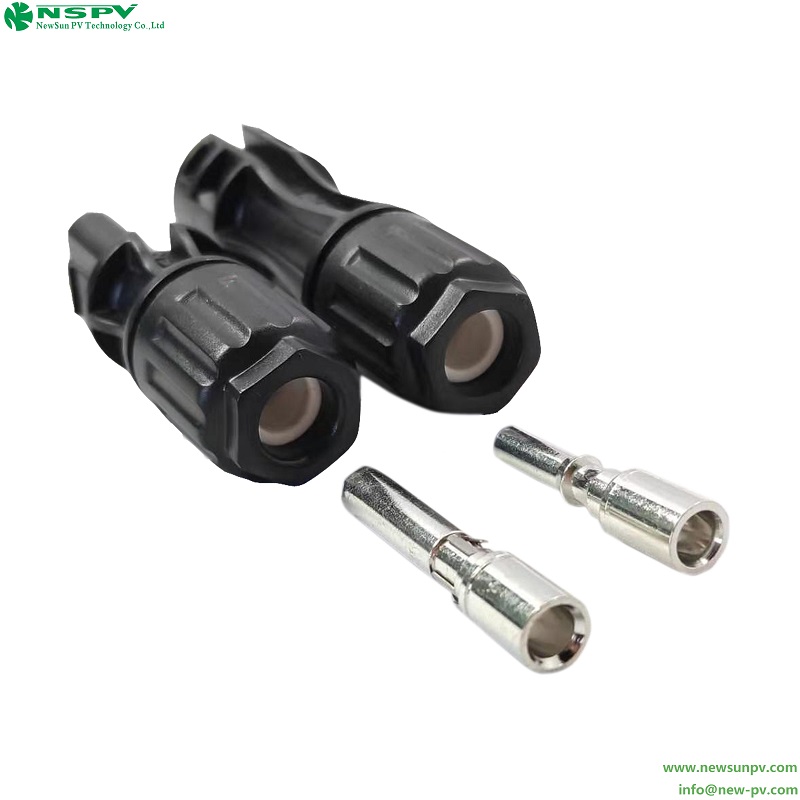

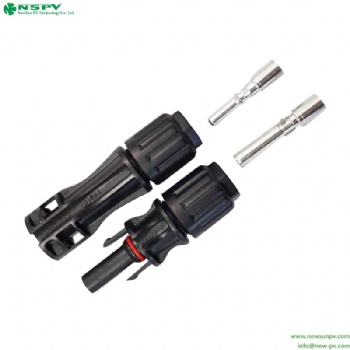

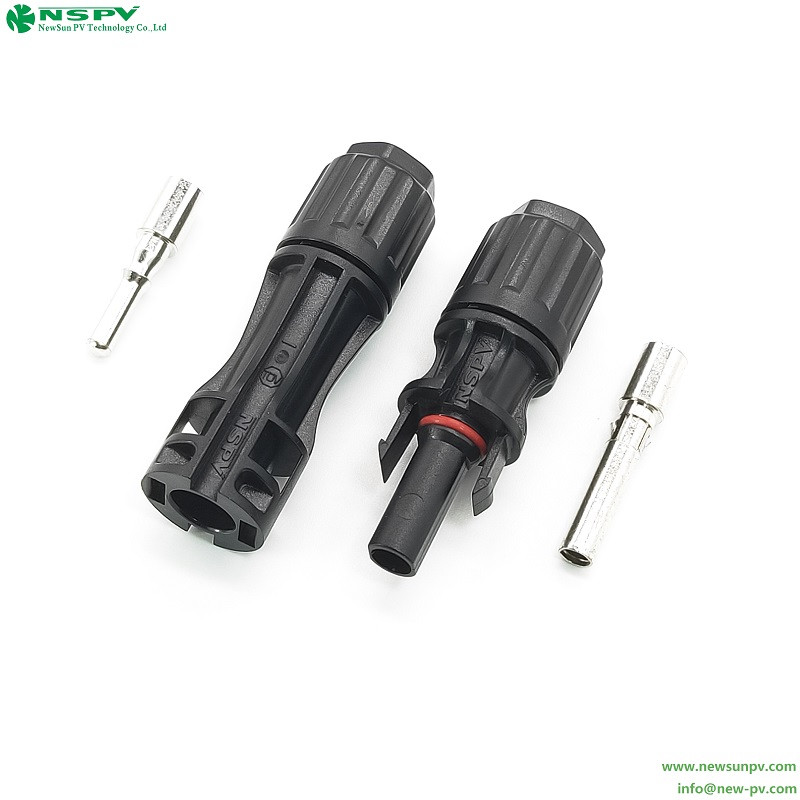

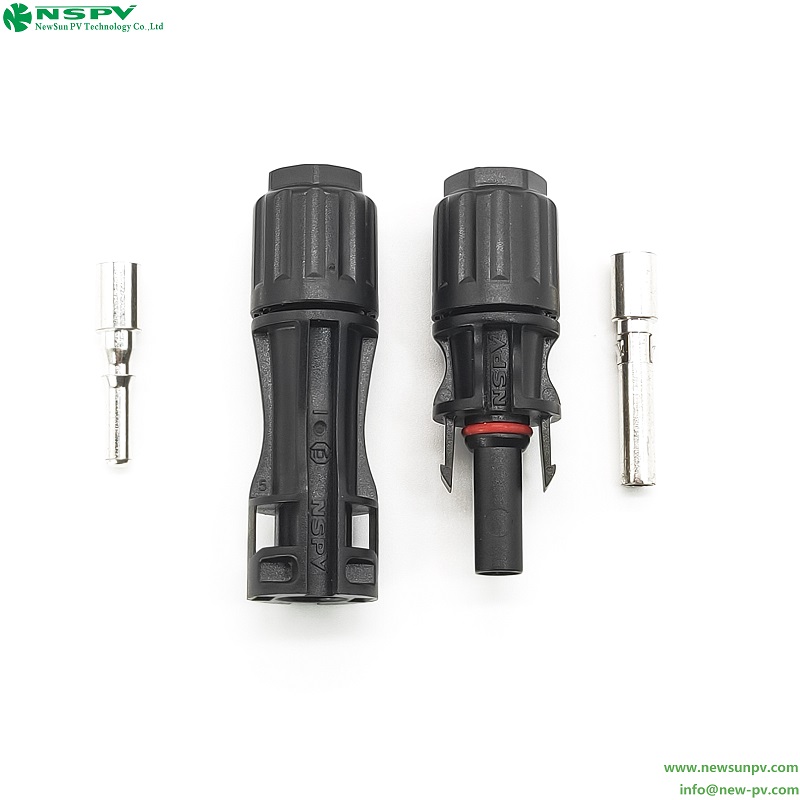

Solar 1500VDC PV4.0 DC Cable Connector 10sqmm
- The PV4.0 DC solar cable connector is used for solar system assembly, the waterproof class is IP68, it is a new type connector, detachable and good stablility, convenient to install.
- INQUIRY
PV4.0 DC Solar Connector Product Specifications
| Product Specifications | |
| Insulation material | PPE |
| Rated current | 35-60A |
| Rated voltage | 1500VDC |
| Test voltage | 8KV(50Hz,Imin) |
| Typical contact resistance | <5mΩ |
| Contact material of MC4 connector | Copper, Tin Plated |
| Degree of protection | IP2X/IP68 |
| Safety degree | II |
| Flames class | UL94-V0 |
| Material RTI | 110°c |
| Withdrawal force | ≥50N |
| Insertion force | ≤50N |
| Ambient temperature range | -40°c until+85°c |
| Suitable cable cross sections | 2.5~10mm²(14AWG~6AWG) |
| Connecting system | Crimp connection |
