Home > Products
Solar Junction box > Solar L mini junction box >

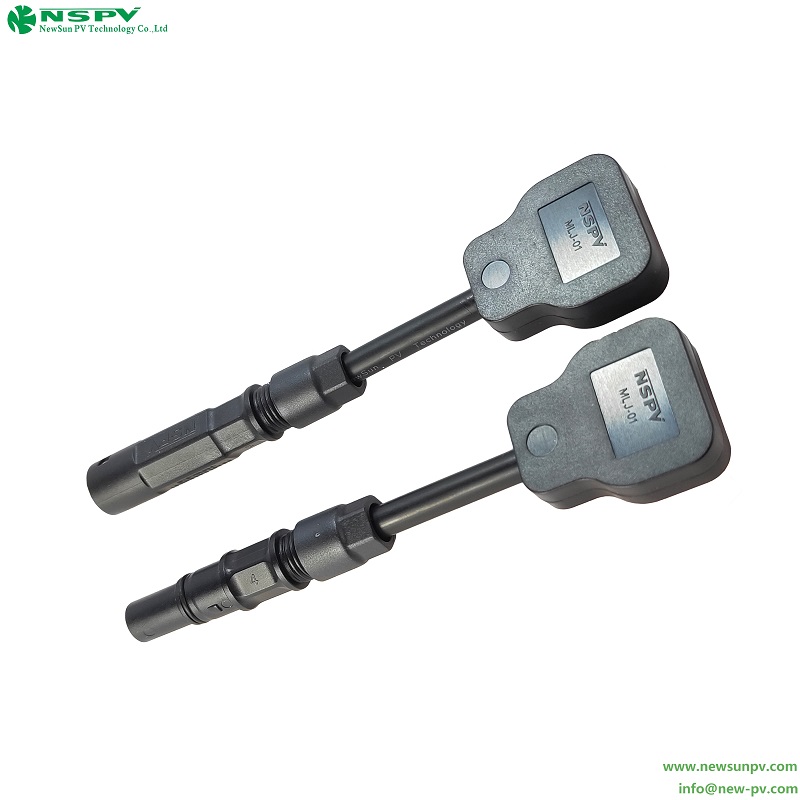

Solar L mini junction box
- The mini junction box can be assembled on the solar panel flexibly, mini type, easy to install.
- INQUIRY
Specifications
| L_Mini Junction Box | |||||||||
| Product Specifications | |||||||||
| BOX Material | PPE/PA | Flame class | UL94-V0 | ||||||
| Rated current | 20A | Ambient temperature range | -40℃…+85℃(IEC) | ||||||
| Rated voltage | 1000V (IEC) | Suitable cable cross sections | 2.5/4.0mm2 | ||||||
| Test voltage | 6kV(50Hz,1min) | Diode Number | Non | ||||||
| Typical contact resistance | ≤ 0.25 mΩ | Upper limiting temperature | 110℃(IEC) | ||||||
| Contact material | Copper,Tin plated | Range of cable gland(mm) | O.D.:5.5 | ||||||
| Degree of protection | IP67(In potting) | Ribbons size(mm) | 6.5(W)*0.2-0.8(T) | ||||||
| Safety degree | II | Connection of bus ribbons | Solder | ||||||
