Solar Junction box

Junction Boxes and Edge Connectors for Blpv Modules

Junction Boxes and Edge Connectors for Blpv Modules

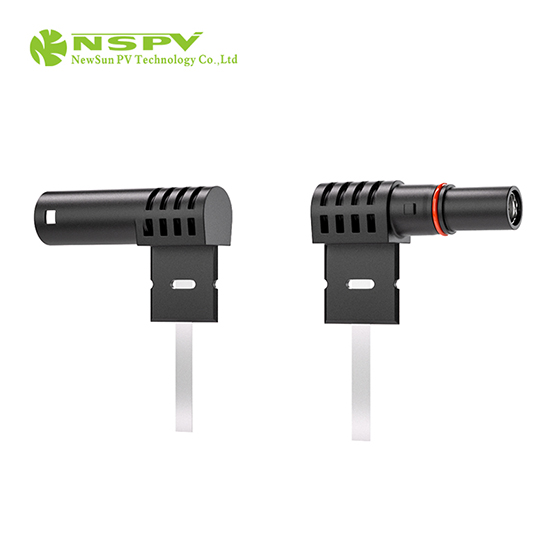

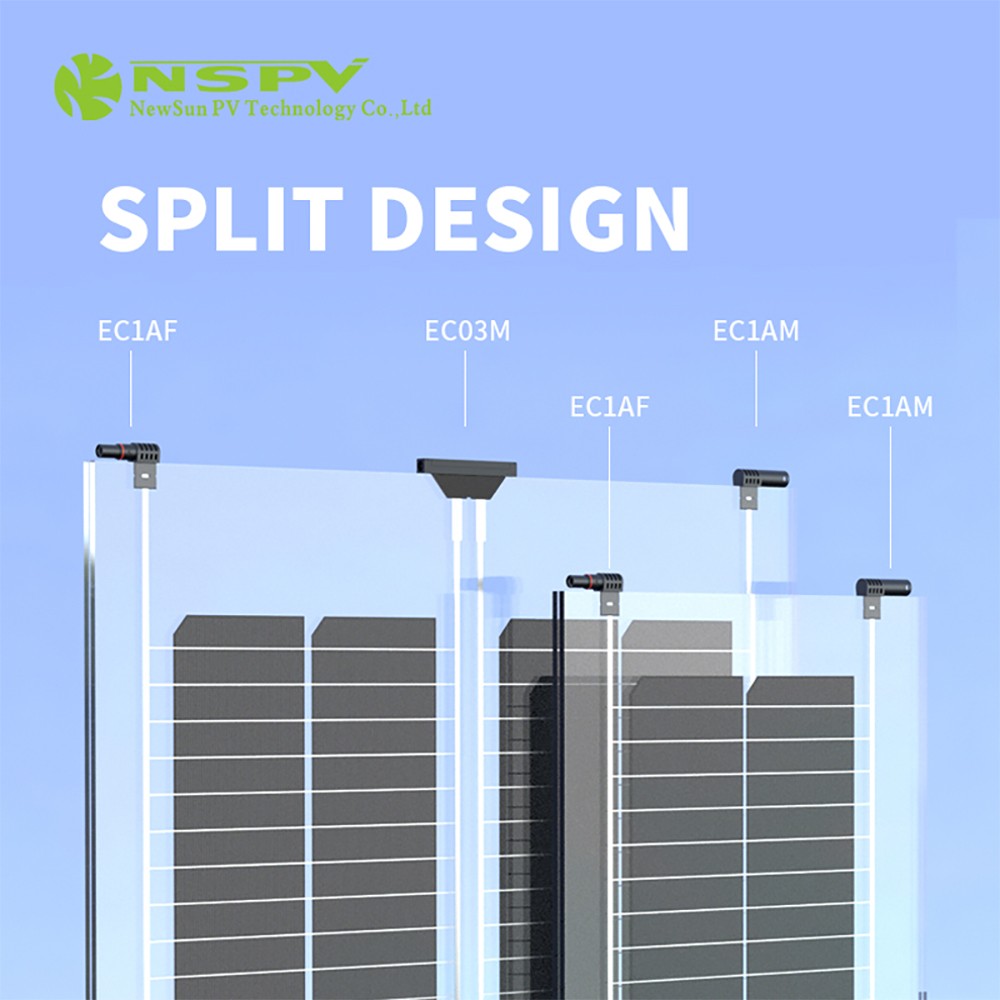

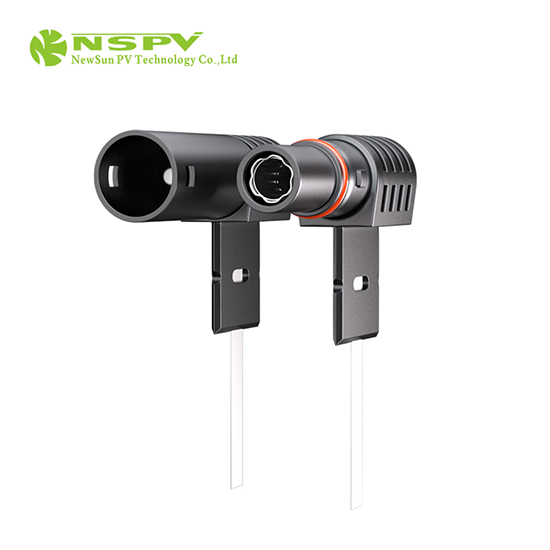

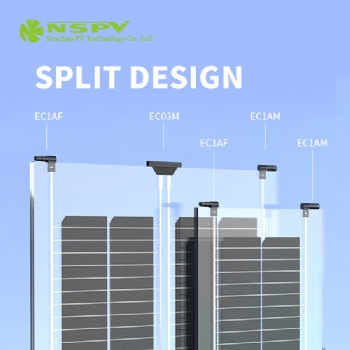

The slimline EC1A junction box can be mounted on the edge of double-sided panels without obscuring any solar cells. Where the panels are intended for use in a building integrated photovoltaics (BIPV) system, this enables the connector and cabling to be hidden within the façade frame.
INQUIRY

The slimline EC1A junction box can be mounted on the edge of double-sided panels without obscuring any solar cells. Where the panels are intended for use in a building integrated photovoltaics (BIPV) system, this enables the connector and cabling to be hidden within the façade frame.

Product specification:

BOX Material	PA/CU
Rated voltage	1000V&1500VDC
Test voltage	8kV(50Hz,Imin)
Typical contact resistance	≤ 0.25mΩ

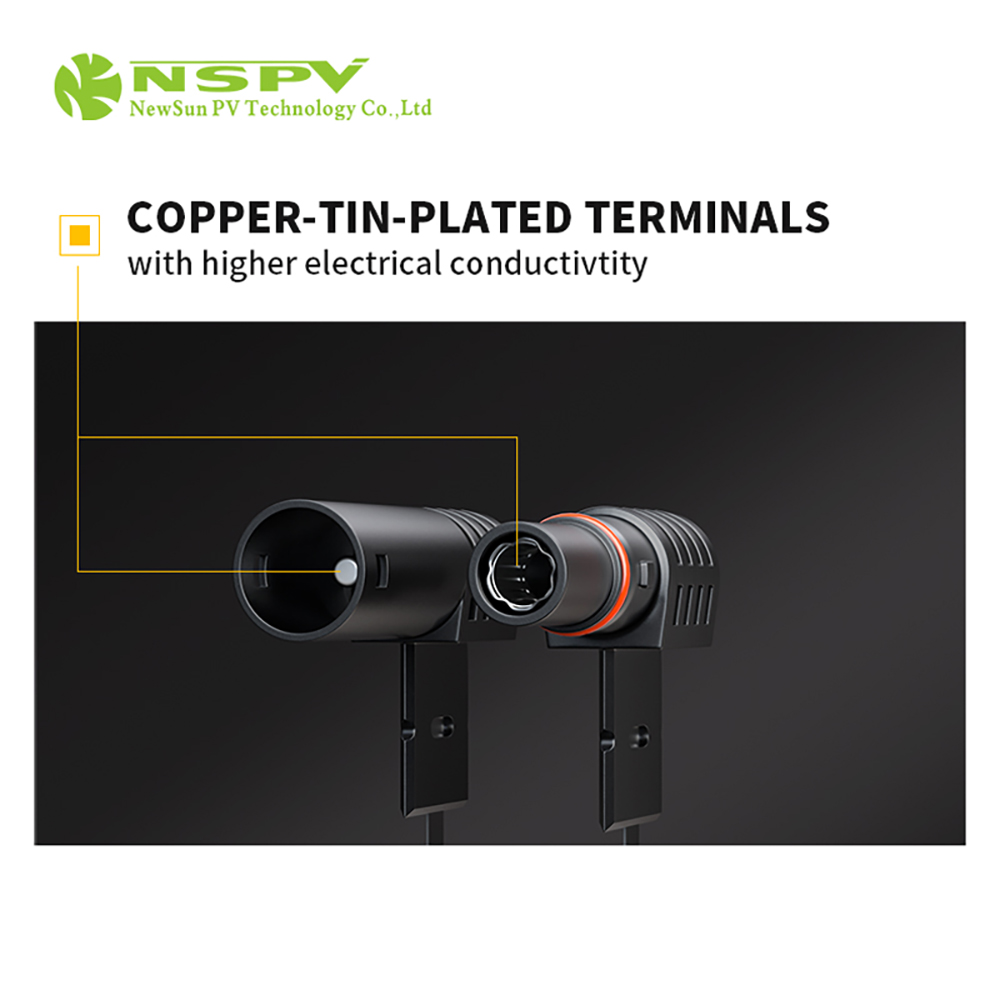

Contact material	Copper, tin plated

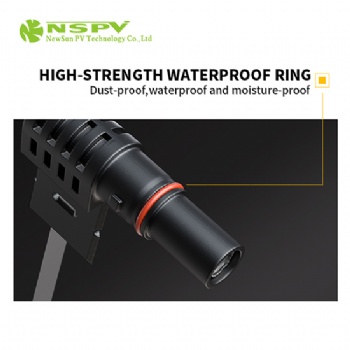

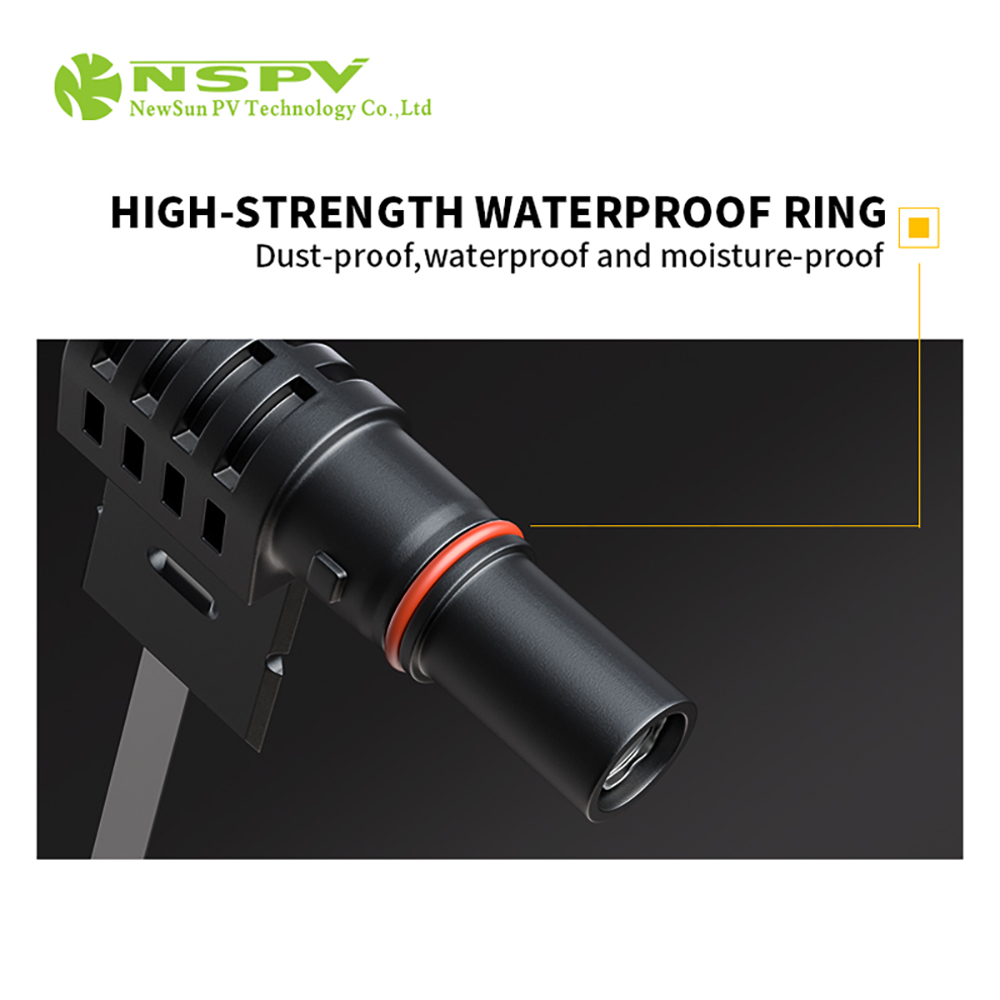

Degree of protection	IP65/IP67
Safety degree	II
Flame Class	UL94-V0
Ambient temperature range	-40℃…+85℃(IEC)
Upper limiting temperature	150℃ (1H)
