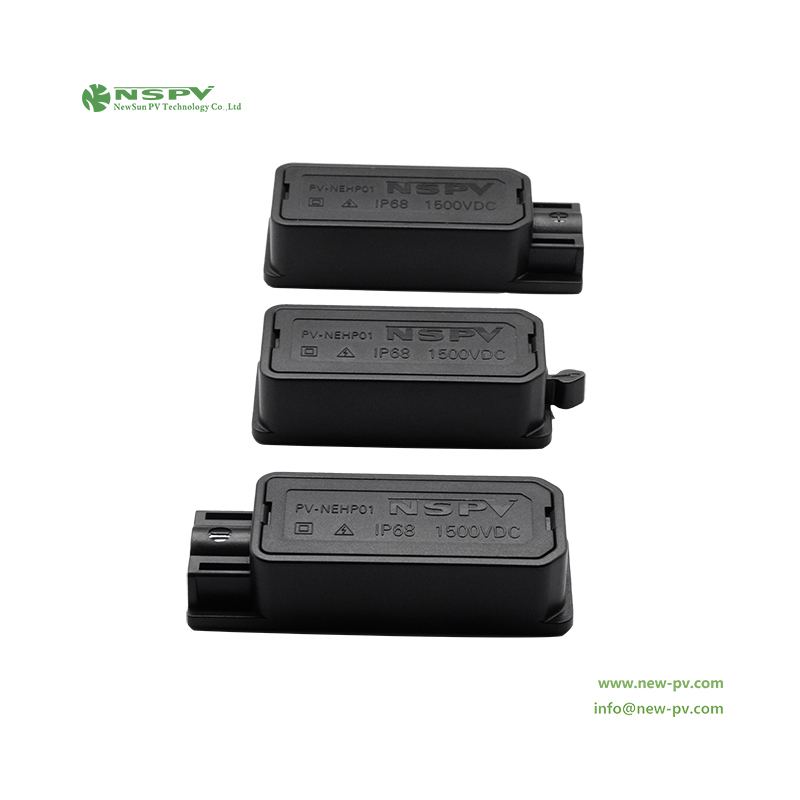

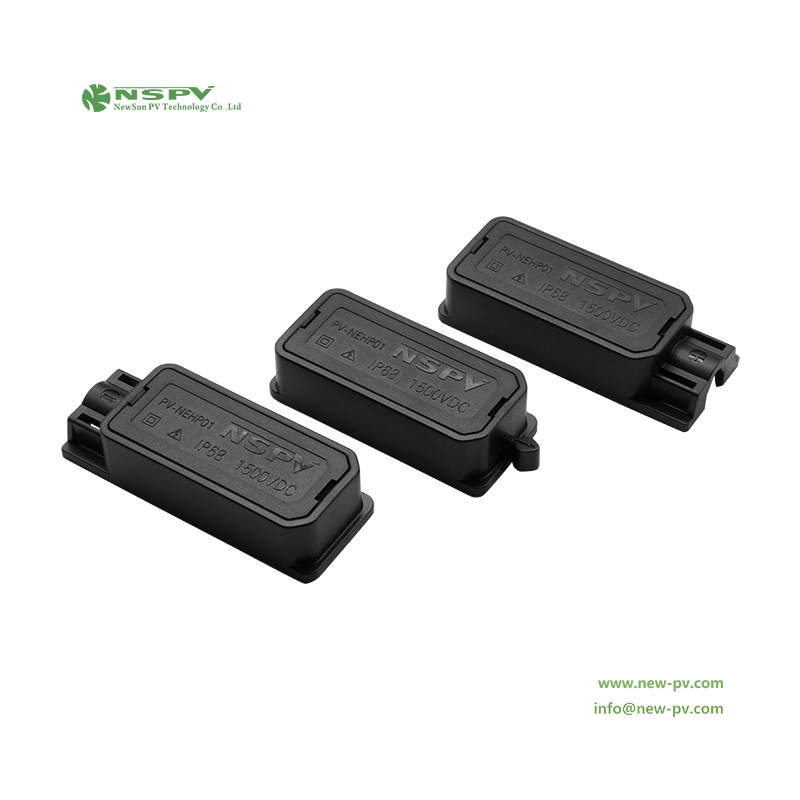

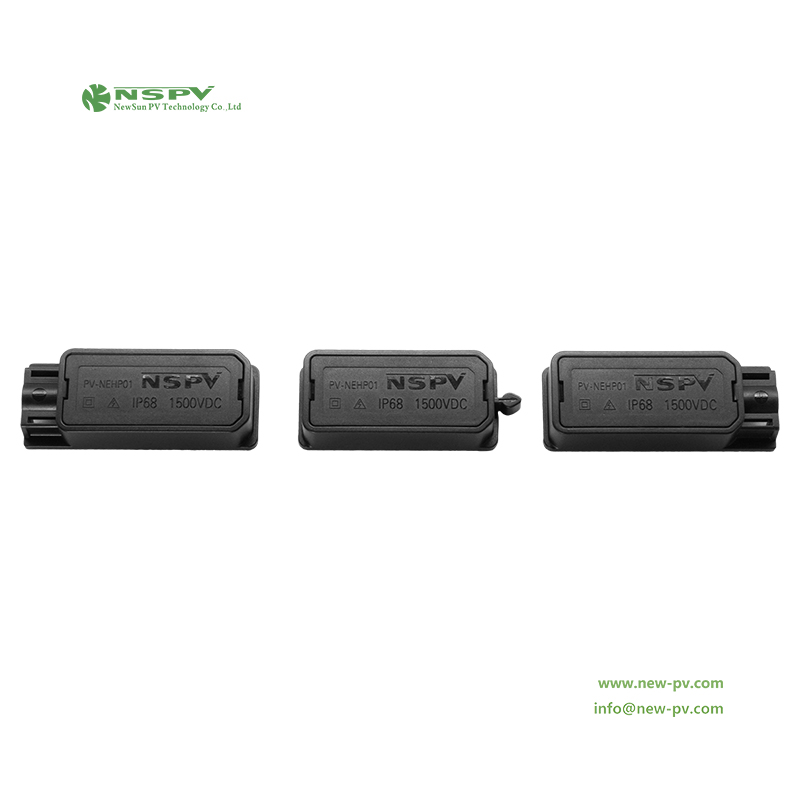

Solar PV junction box PV-NEHP01
- A PV junction box is an enclosure on the solar PV module where the PV strings are electrically connected.
- INQUIRY
PV-NEHP01 Solar Junction Box
| BOX Material | PPE/PA | Flame Class | UL94-V0 |
| Rated current | 30A(With diode) | Ambient temperature range | -40℃…+85℃(IEC) |
| Rated voltage | 1500VDC | Suitable cable cross sections | 6mm2 (10AWG) |
| Test voltage | 8kV(50Hz,Imin) | Diode Number | Each 1PC |
| Typical contact resistance | ≤ 0.25mΩ | Upper limiting temperature | 110℃(IEC) |
| Contact material | Copper, tin plated | Range of cable gland(mm) | O.D.:6.0 |
| Degree of protection | IP68(in potting) | Ribbons size(mm) | Max.8(W)*0.2-0.5(T) |
| Safety degree | II | Connection of bus ribbons | Soldering |
