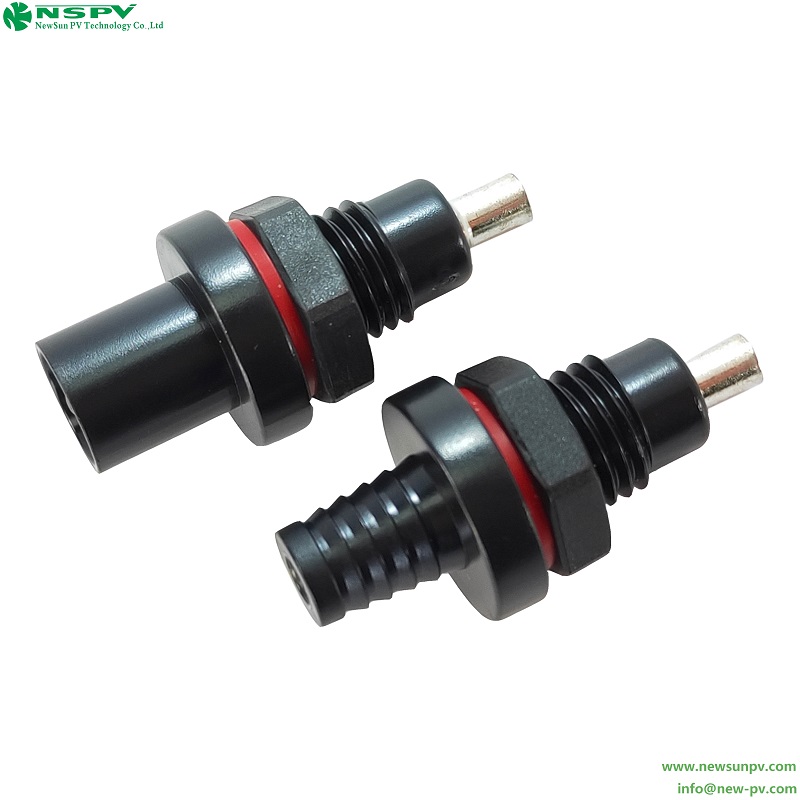

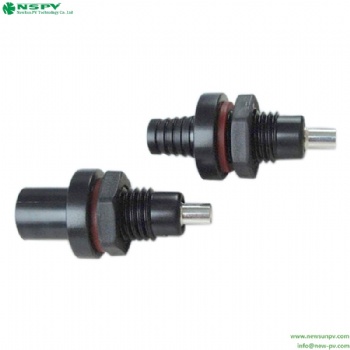

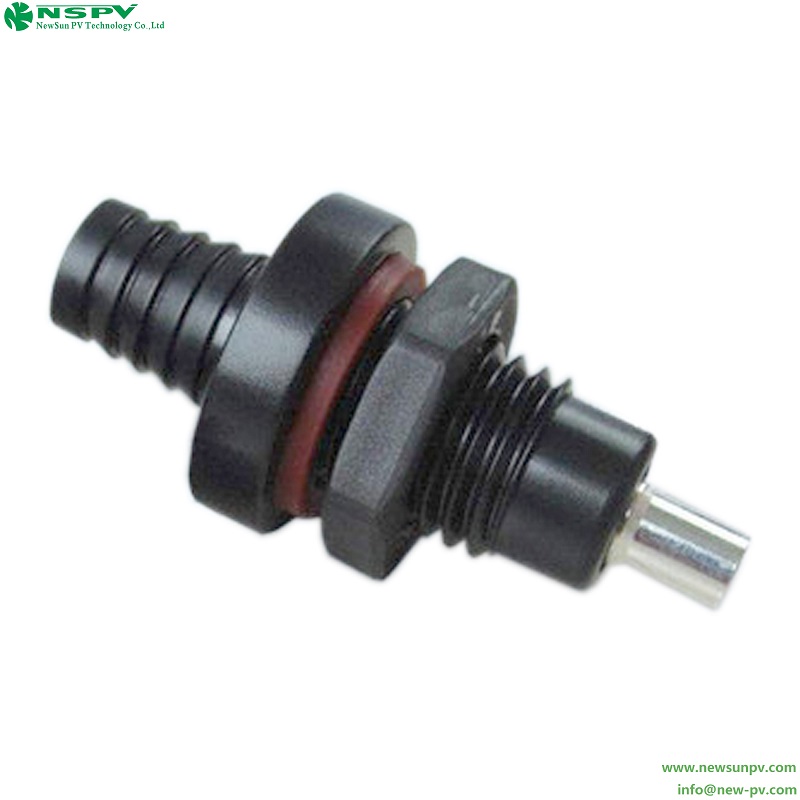

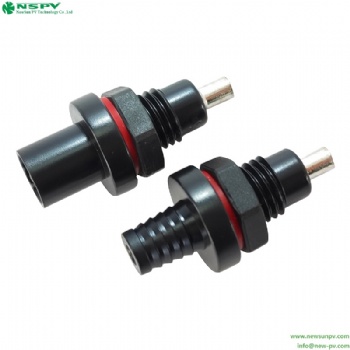

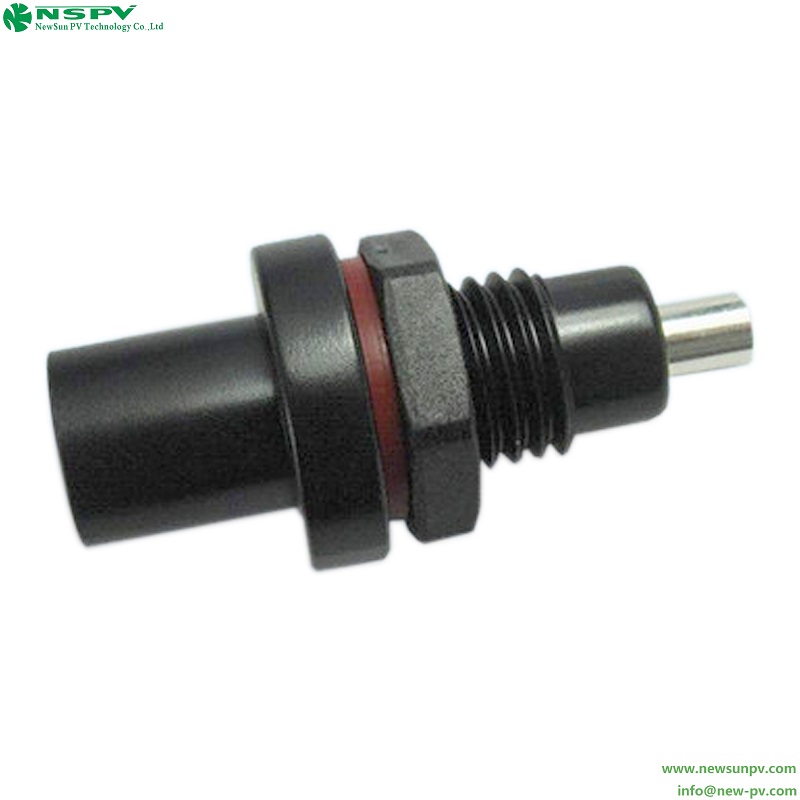

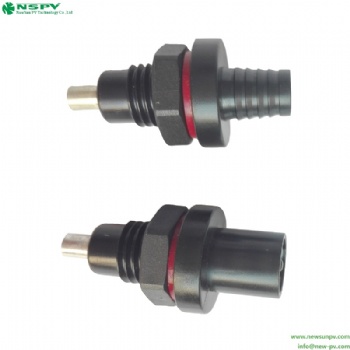

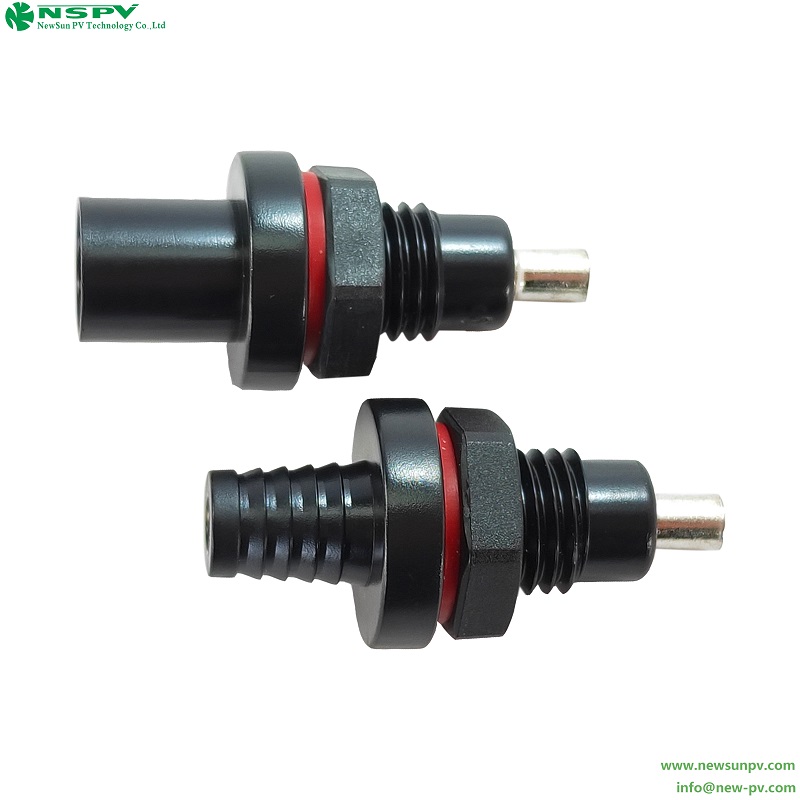

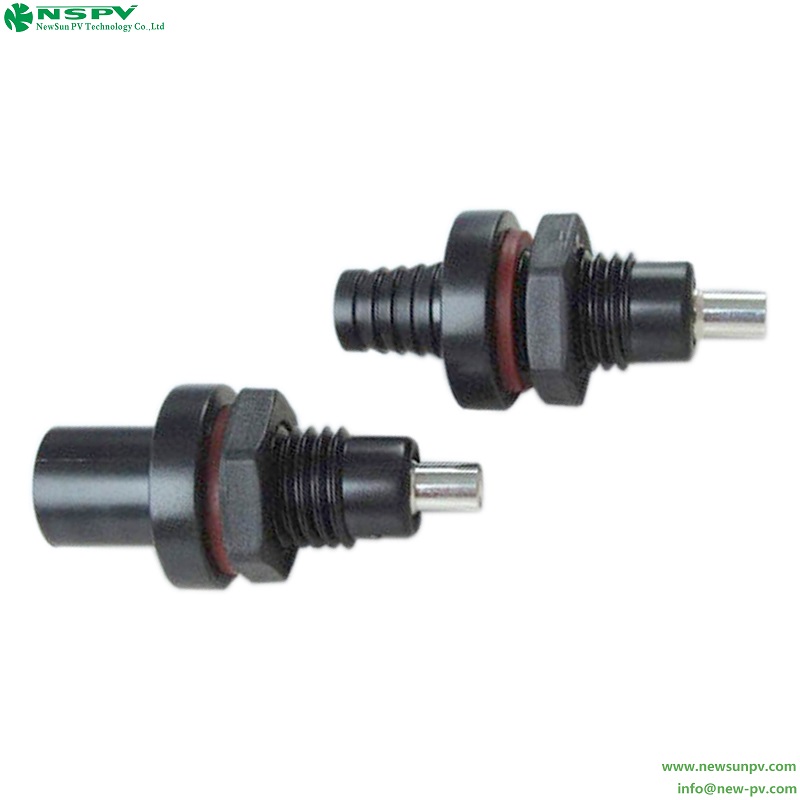

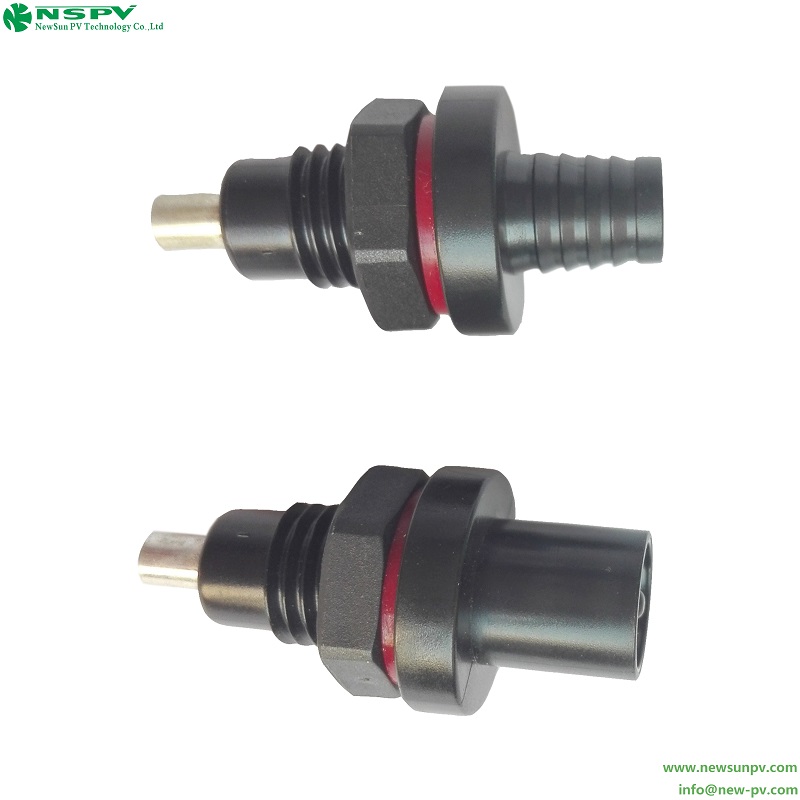

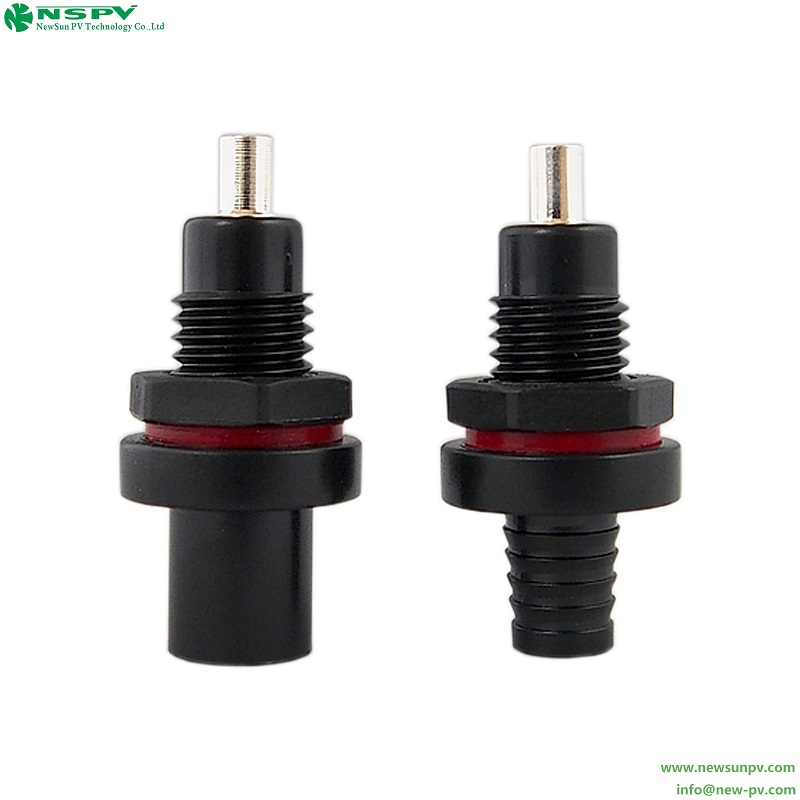

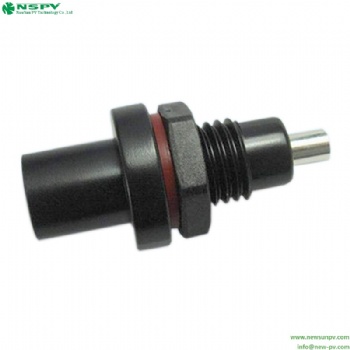

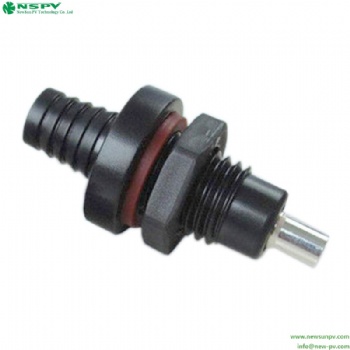

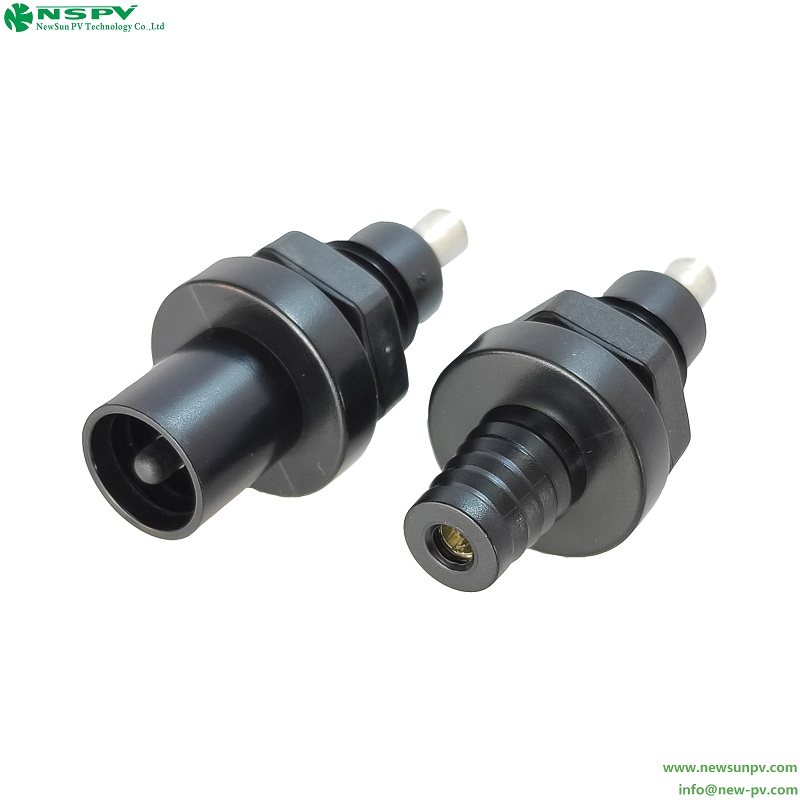

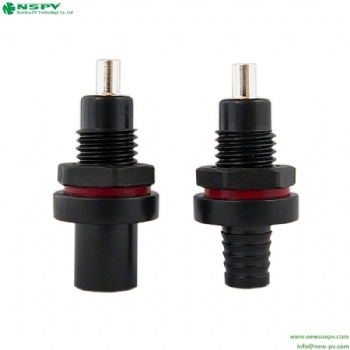

Solar PV3.0 DC panel connector for rubber connector
- The PV3.0 DC solar cable connector is used for solar system assemble, the waterproof is IP67,new type connector, good stable specification, convenient to assemble.
- INQUIRY
Product specificatioin
Insulation material: PPE
Rated current: 30A
Rated voltage: 1,000V (TUV)
Testing voltage: 6,000V(50Hz,1min)
Contact resistance: ≤0.5mΩ
Contact material: Copper,Tin Plated
Protection degree: IP67
Safety degree: 2
Flammability: UL94-V0
Material RTI: 110°C
Withdrawal force: ≥50N
Insertion force: ≤50N
Application class: A
Ambient temperature range : -40°C to +85°C
Material RTI: 110°C
Pin dimensions : Ø3.0
Advantages
Weatherproof and waterproof
Anti-aging and anti-ultraviolet radiation
Standard module design, discretionary assembly
