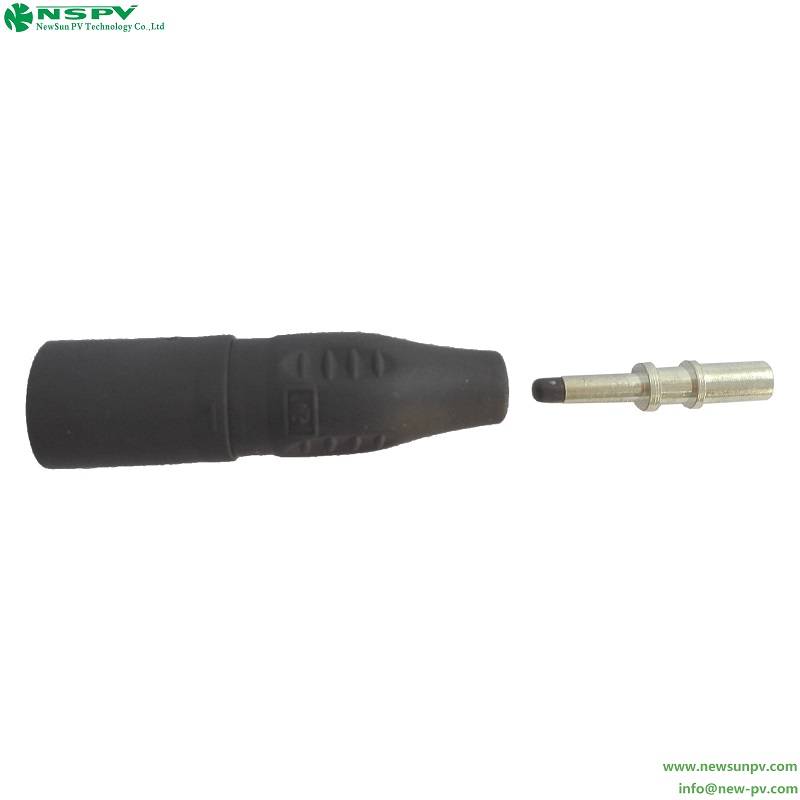

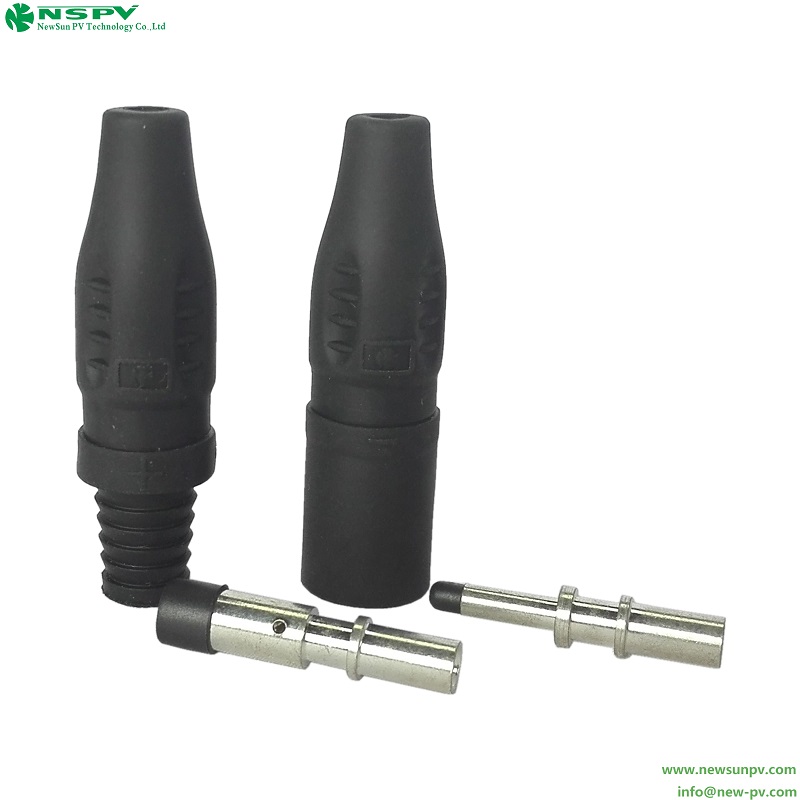

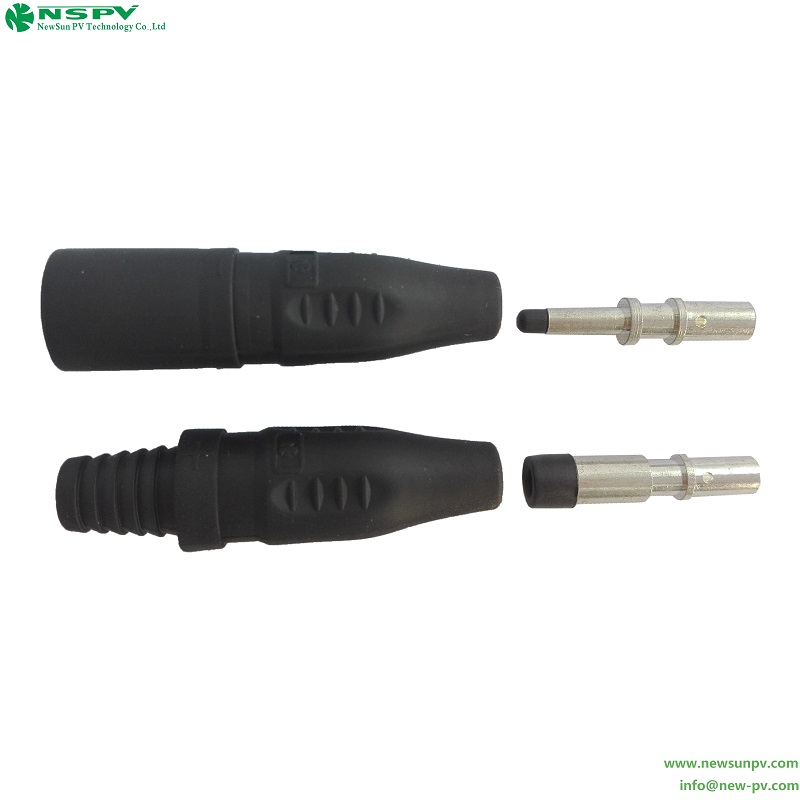

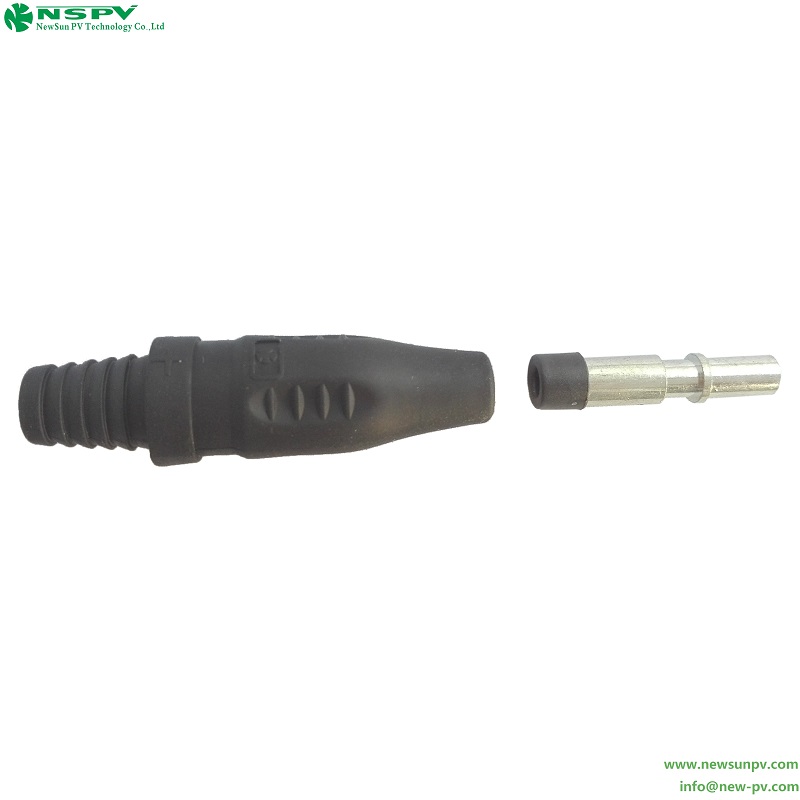

Solar PV3.0 DC Cable rubber Connector
- The PV3.0 DC solar cable connector is used for solar system assemble, the waterproof is IP67, it is a detachable, new type connector, good stable specification, convenient to assemble.
- INQUIRY
Descriptions
PV3.0 Solar Connector Product Specifications
| Product Specifications | |
| Insulation material | PPE |
| Rated current | 30A |
| Rated voltage | 1000VDC |
| Test voltage | 6KV(50Hz,Imin) |
| Typical contact resistance | ≤0.5mΩ |
| Contact material | copper, Tin, Plated |
| Degree of protection | IP67 |
| Safety degree | II |
| Flames class | UL94-V0 |
| Material RTI | 110°c |
| Withdrawal force | ≥50N |
| Insertion force | ≤50N |
| Ambient temperature range | -40°c until+85°c |
| Suitable cable cross sections | 2.5~6.0mm²(14AWG~10AWG) |
| Pin dimensions | Φ3.0 |
Advantages
Weatherproof and waterproof
Anti-aging and anti-ultraviolet radiation
Standard module design, discretionary assembly
