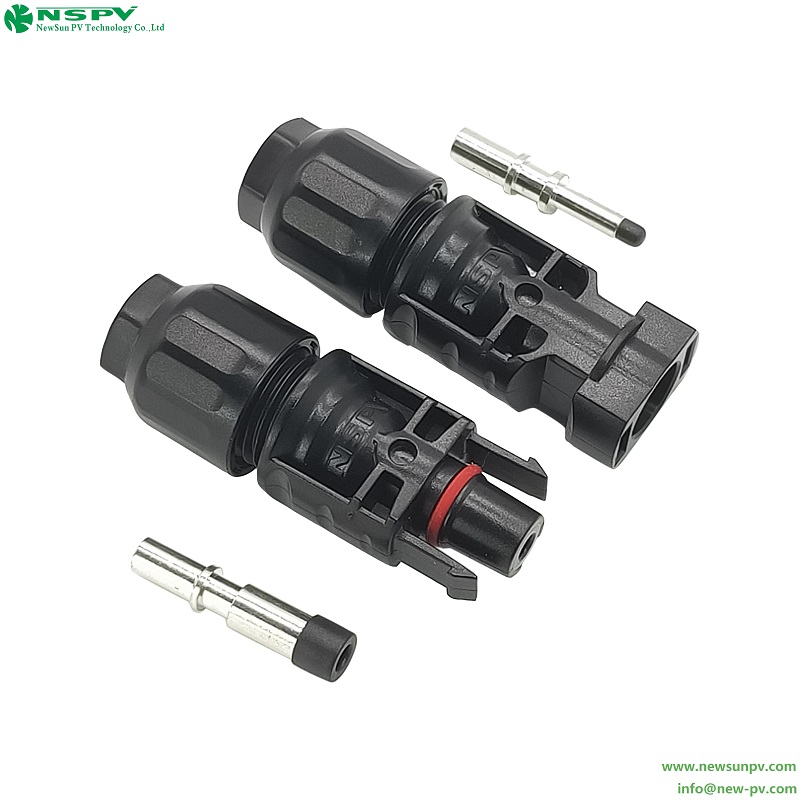

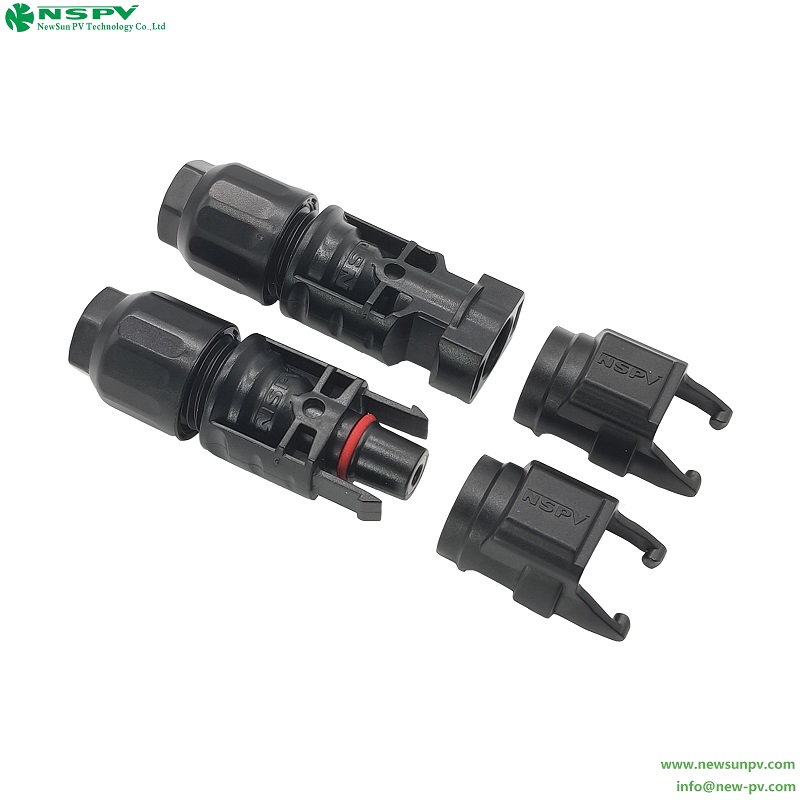

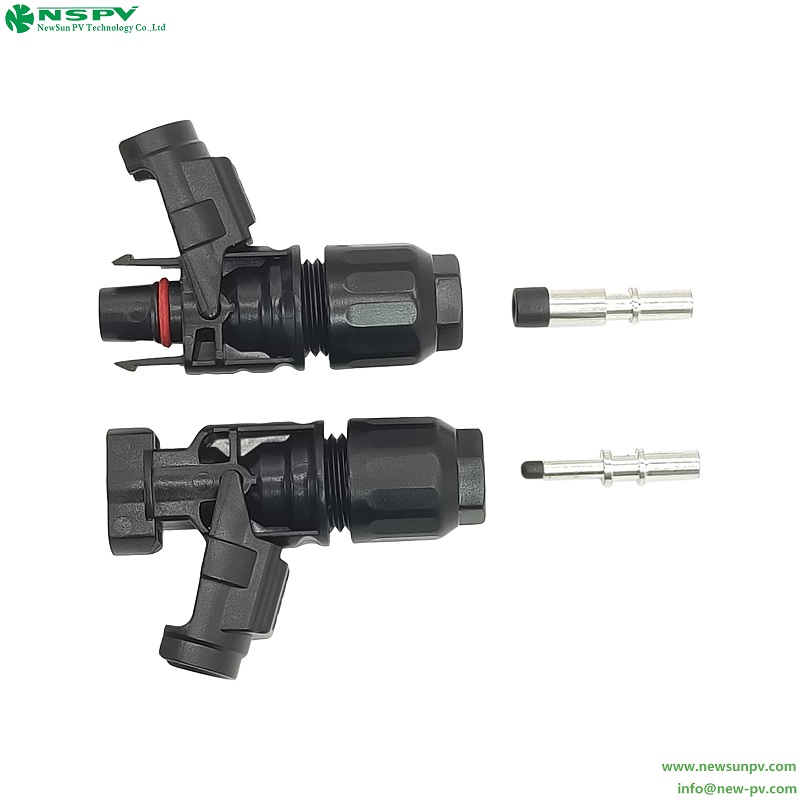

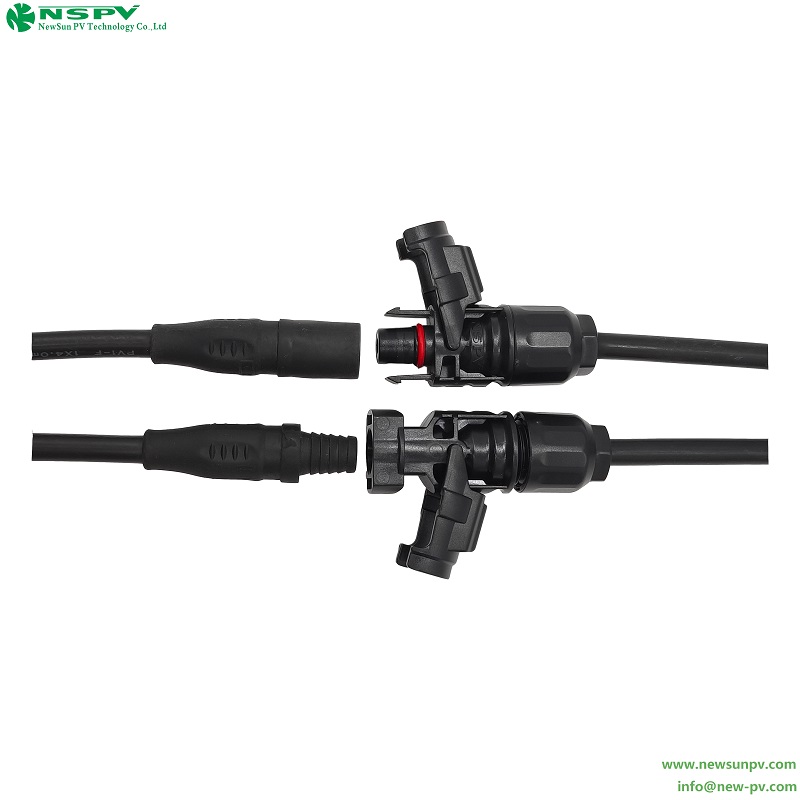

Solar PV3.0 DC Cable connector with buckle
- The PV3.0 DC solar cable connector is used for solar system assemble, the waterproof is IP67,new type connector, good stable specification, convenient to assemble.
- INQUIRY
Product Description
Materials
Insulation | PPE |
Color | Black |
Loop | Ruber |
Contacts | Copper, tin plated |
Electrical Data
Rated current | 30A |
Rated voltage | 1000V DC |
Contact resistance | ≤0.5mΩ |
| Suitable Cable size | 2.5~6mmsq(10AWG~14AWG) |
Enviromental
Degree of protection | IP67 |
Standards | TUV |
Ambient temperature range | -40°C until +85°C |
Material RTI | 110°C |
Flame class | UL94-V0 |
Safty class | II |
Pin dimensions | 4mm |
Advantages
Simple, quick installation
Standard module design, discretionary assembly
Anti-aging and anti-ultraviolet radiation
Weatherproof and waterproof
