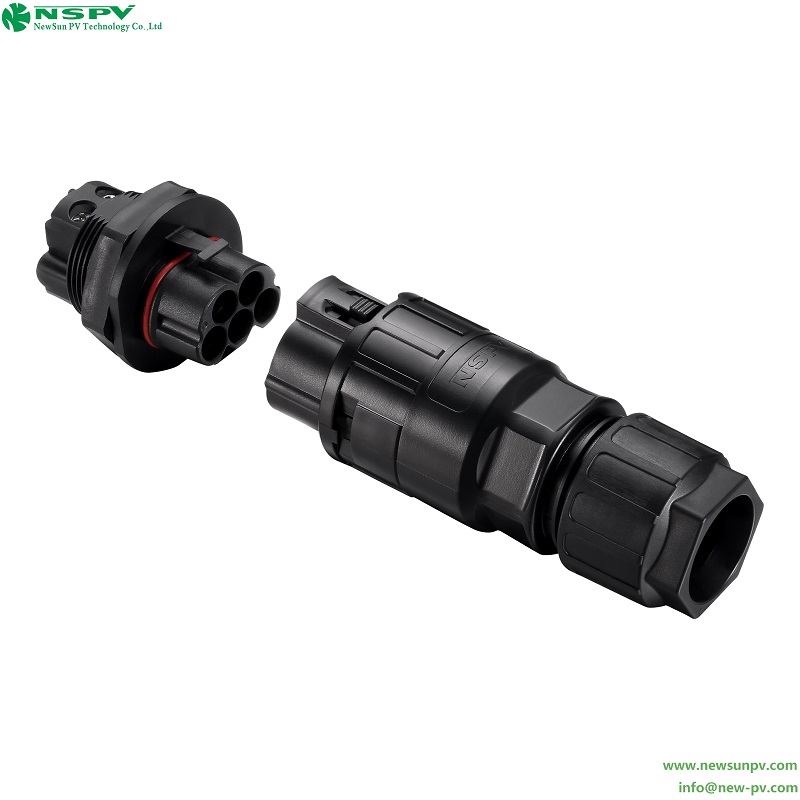

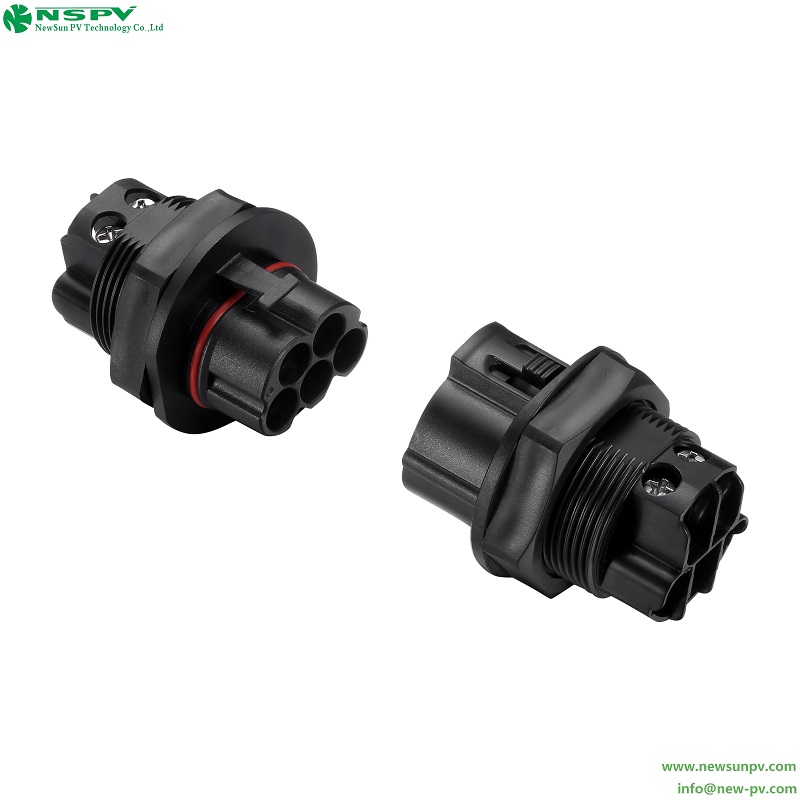

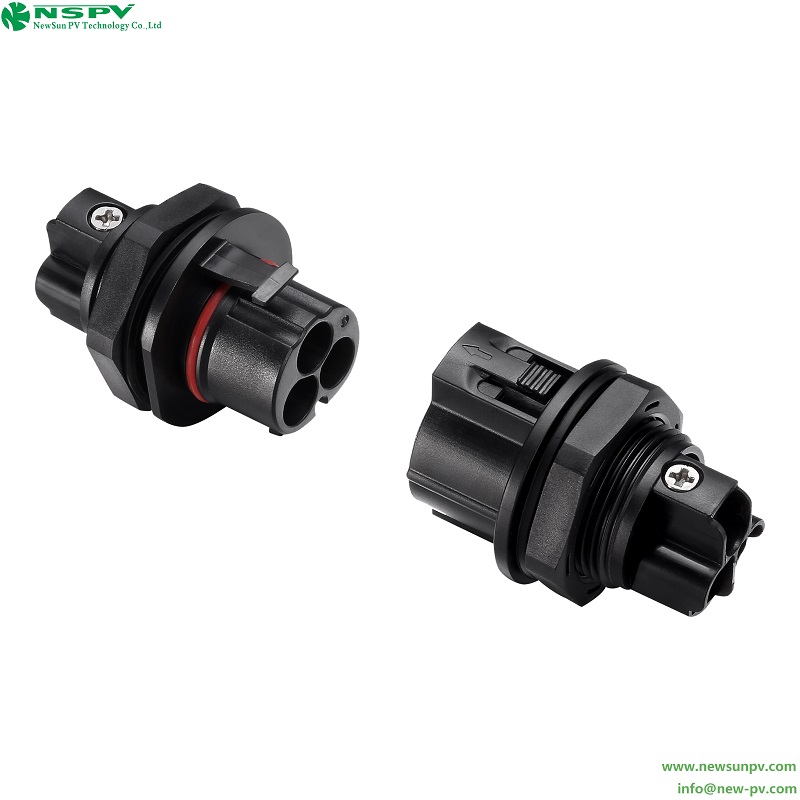

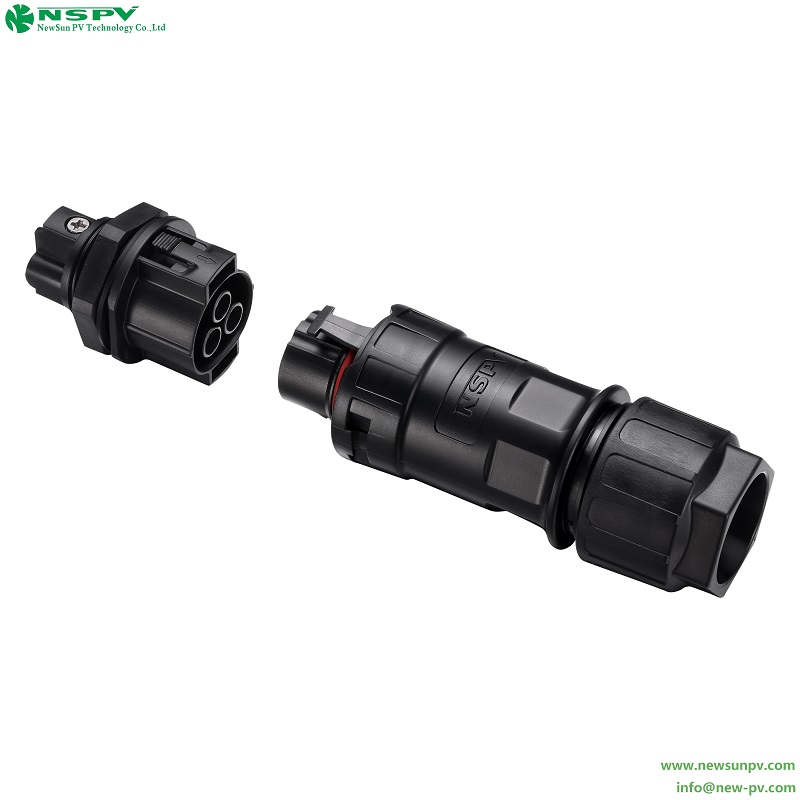

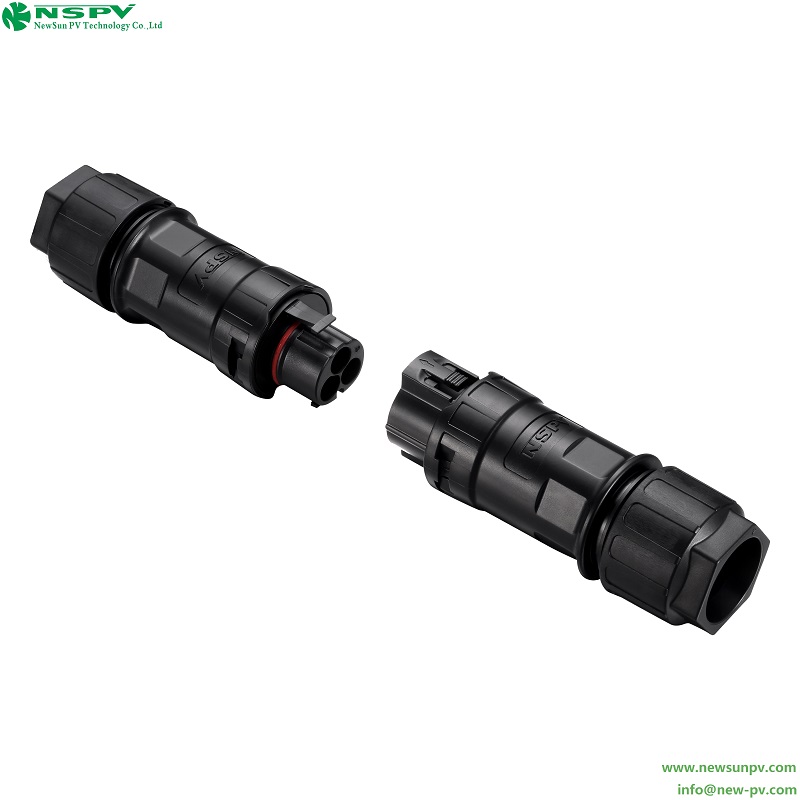

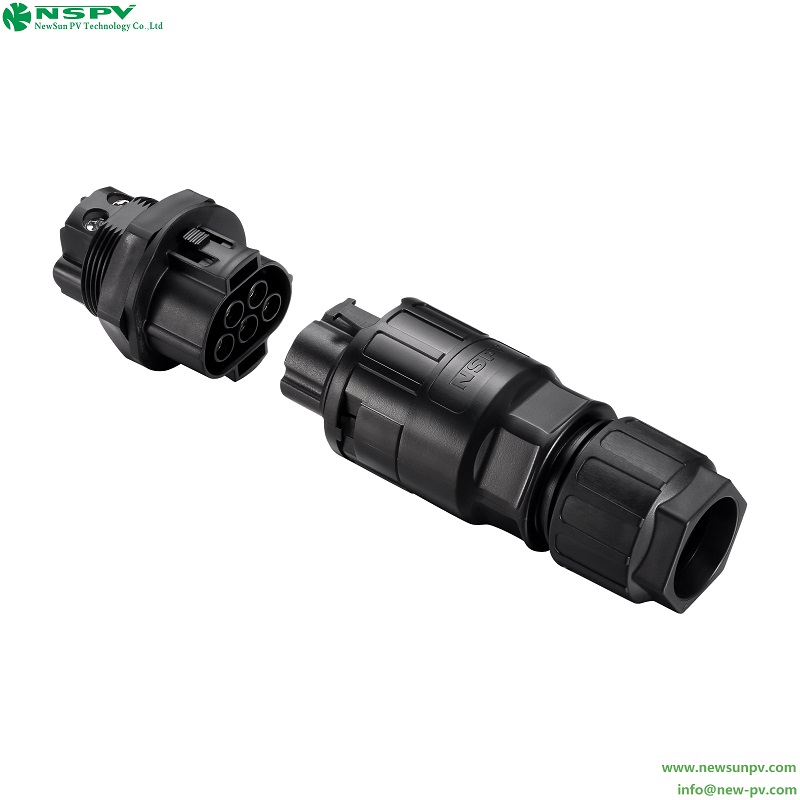

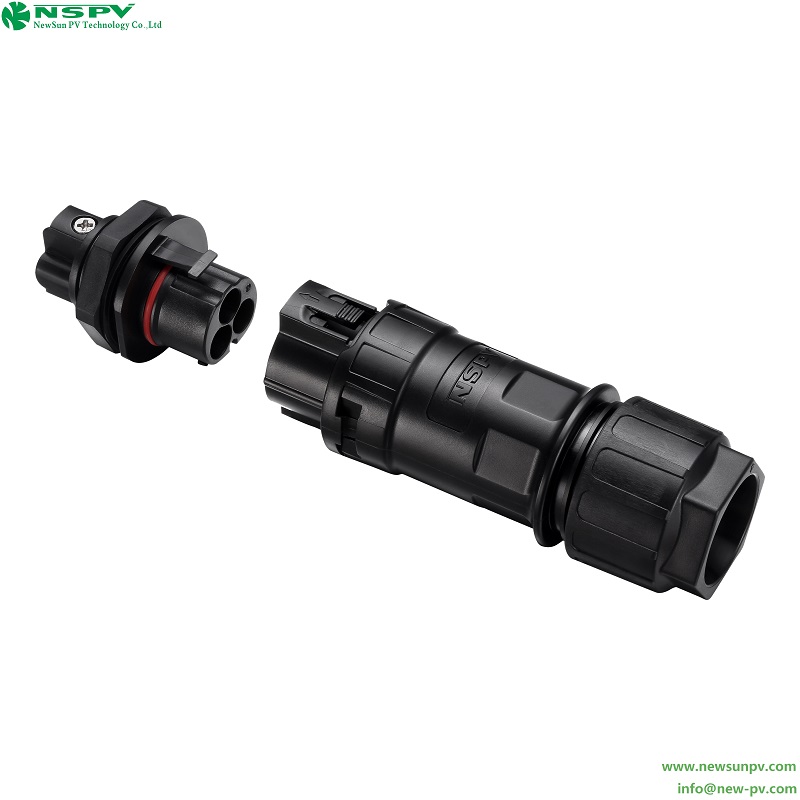

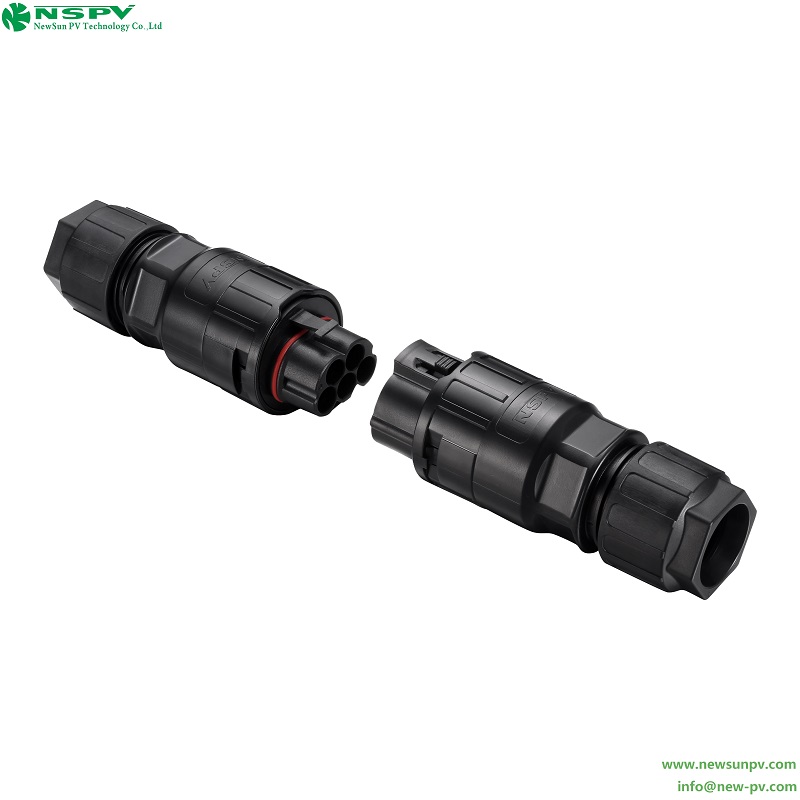

Solar AC 3P/5P Connector(new type)

  • The solar AC connector protection degree is IP68, it's convenient to assemble and disassemble.
  • INQUIRY

Product specification

Insulation materialPPE/PA
Rated currentMax.50A
Rated voltage500VAC
Dielectric withstand voltage4KV
Typical contact resistance

<5mohm

Contact materialCopper,Tin plated
Degree of protectionIP68
Flame classUL94-V0
Contaction typeScrew/Crimp
Contaction size/number of contact4*3
Ambient temperature range-40℃until...+85℃
suitable cable cross sections2.5~10mm2
Suitable cable OD Max.21mm
StandardEN 61984/CE
