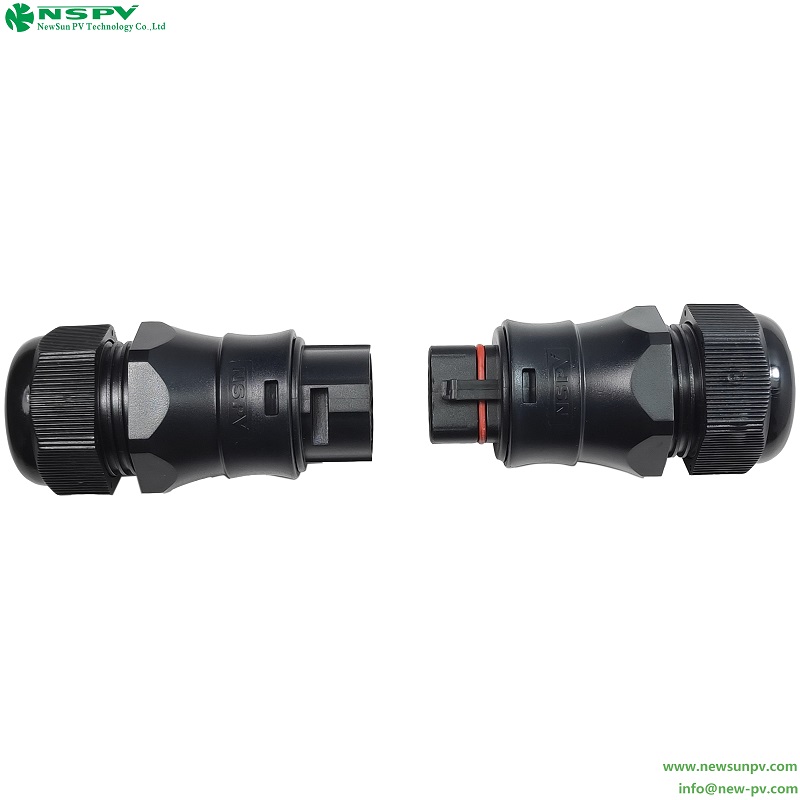

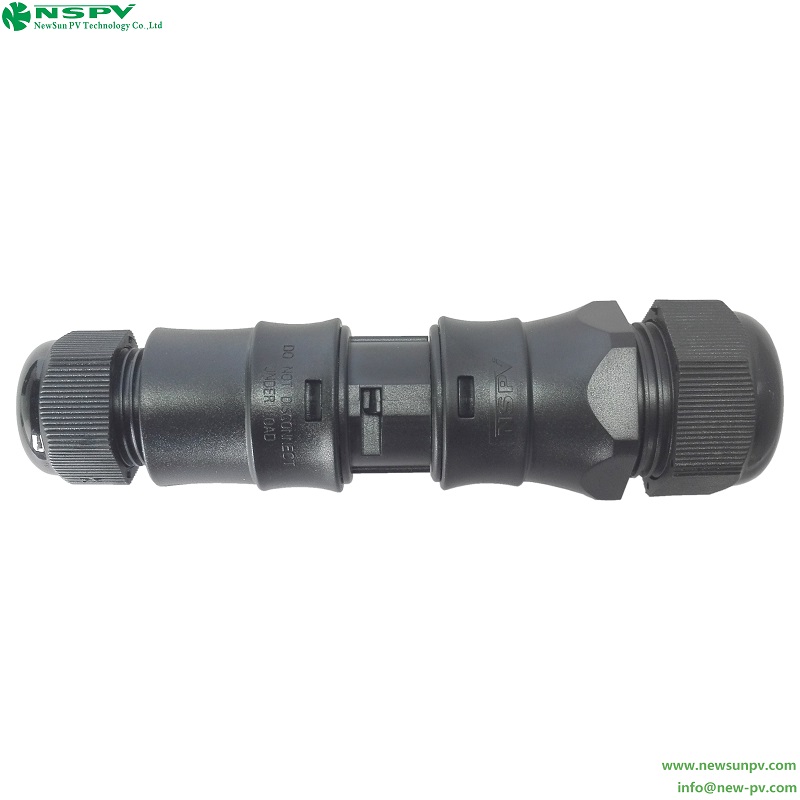

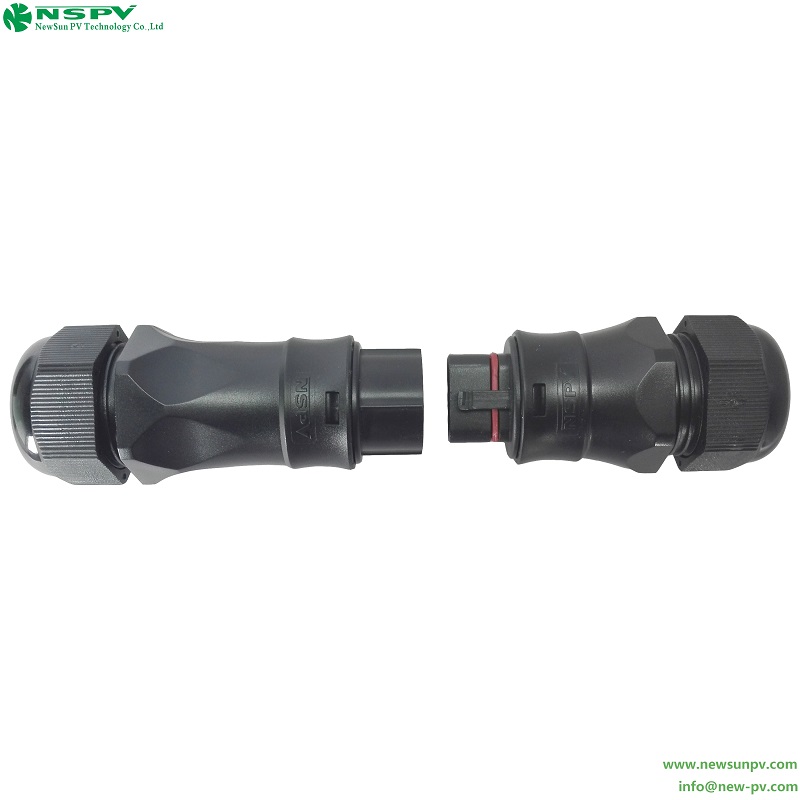

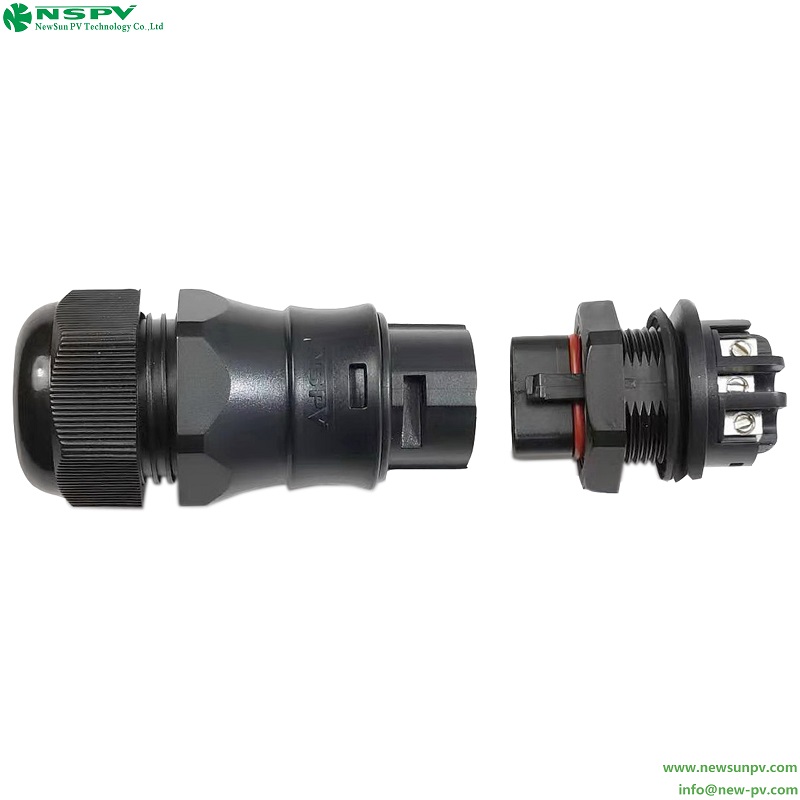

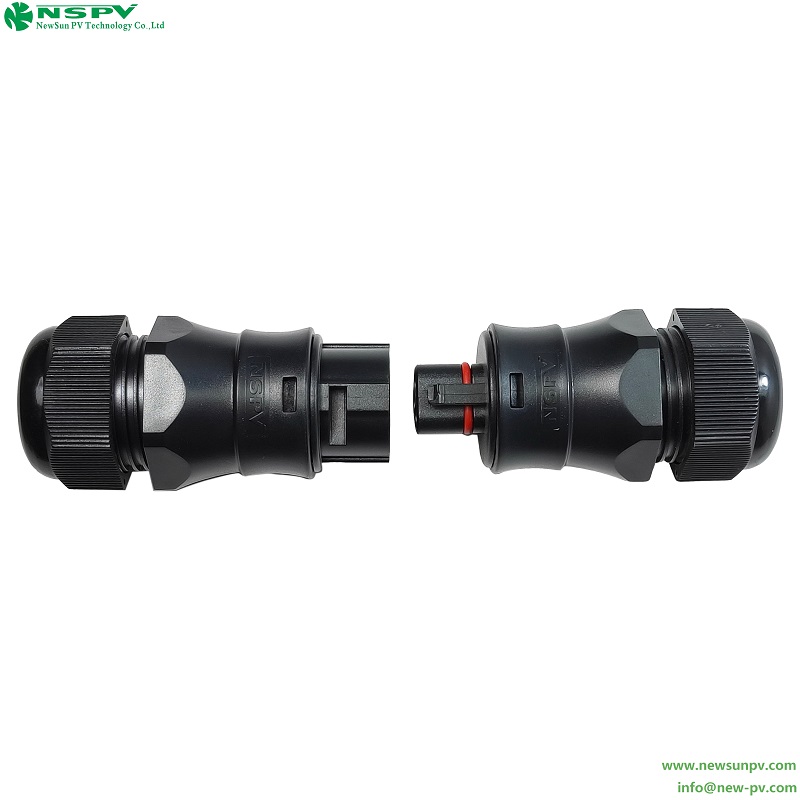

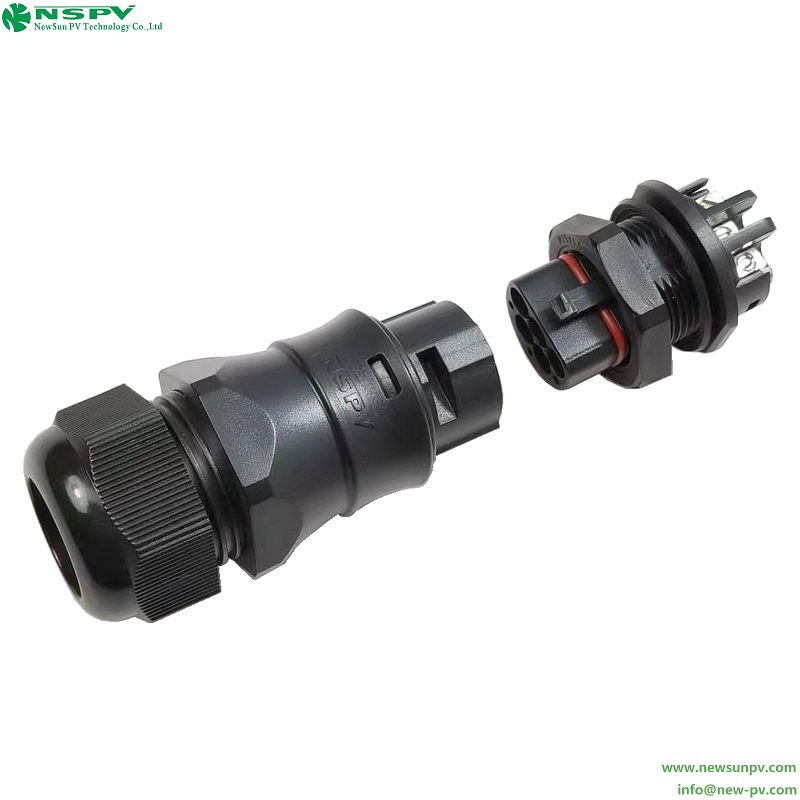

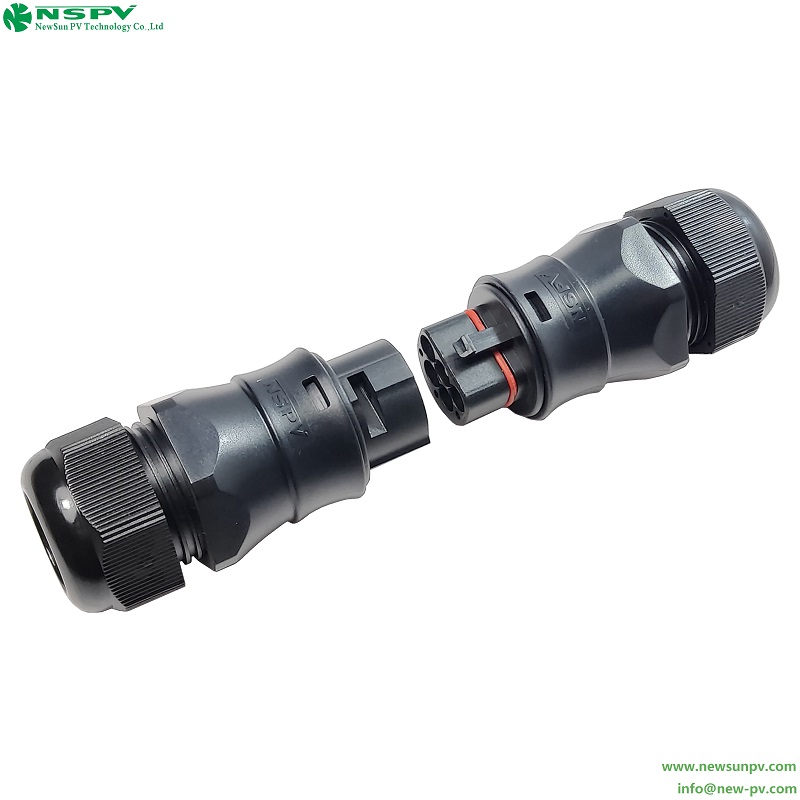

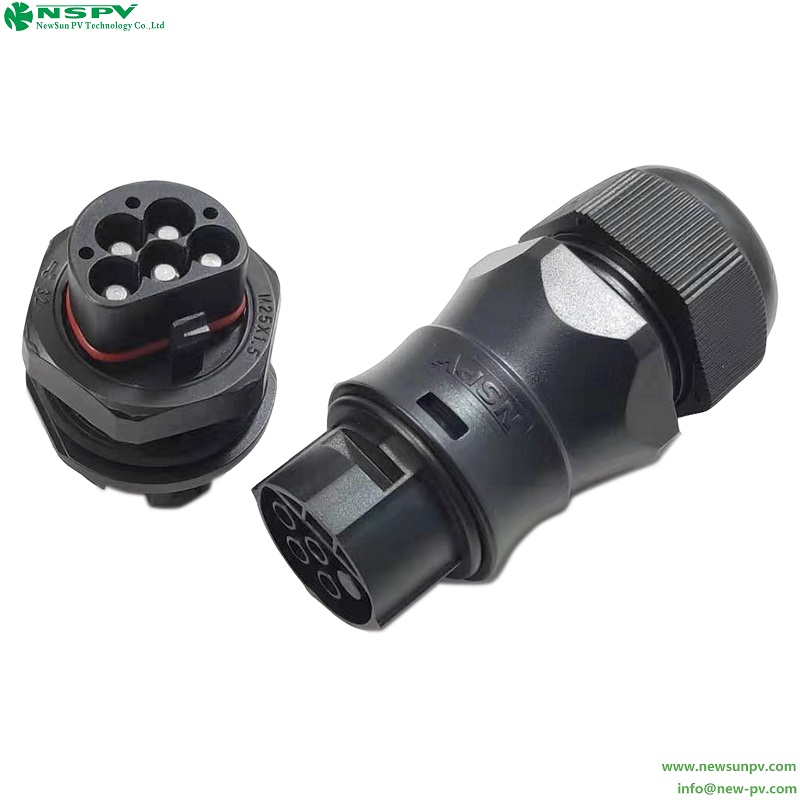

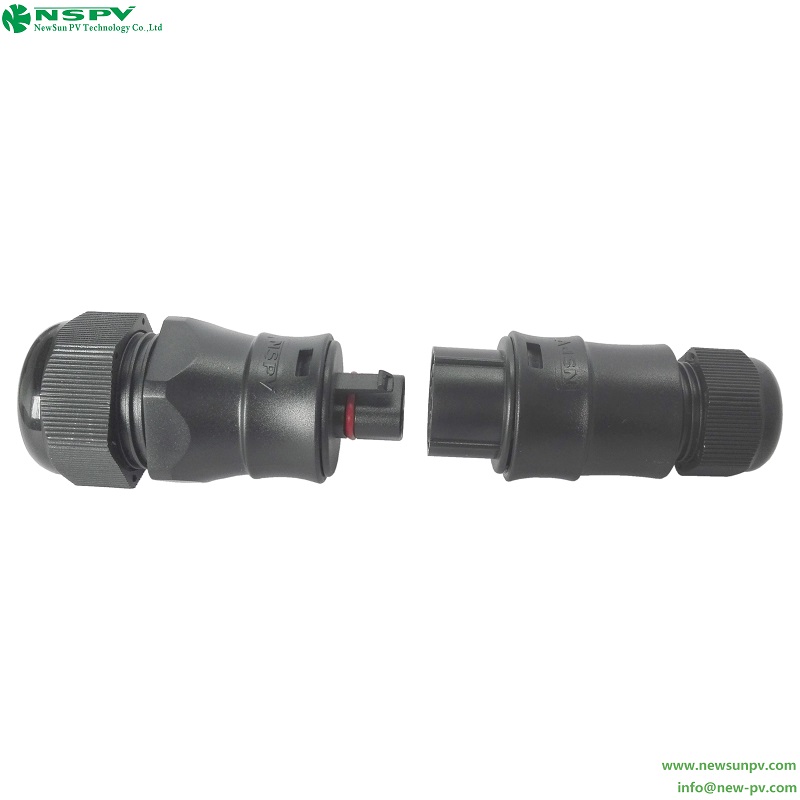

Solar AC 3P/5P Connector(old type)

  • The solar AC connector protection degree is IP68, it's convenient to assemble and disassemble.
  • INQUIRY

Specifications

Electric AC connector Date Details

Insulation material : PPE

Rated current : 35A

Rated voltage : 500V  AC

Contact material : Copper,Tin Plated

Suitable for protection class :  2

IP code : IP67

Contact resistance : ≤1mΩ

Flame class : UL94-V0

Ambient temperature range : -40°C until +90°C

Suitable cable cross sections  : 2.5~6mmsq(10AWG~14AWG)

Material RTI : 110°C

Pin dimensions  : Ø3.6*5



Advantages

Simple, quick installation

Standard module design, assembled discretionarily

With the capacity of anti-aging and anti-ultraviolet radiation

Meet the requirement of outdoor condition

The product has been approved by TUV
