PV edge connector

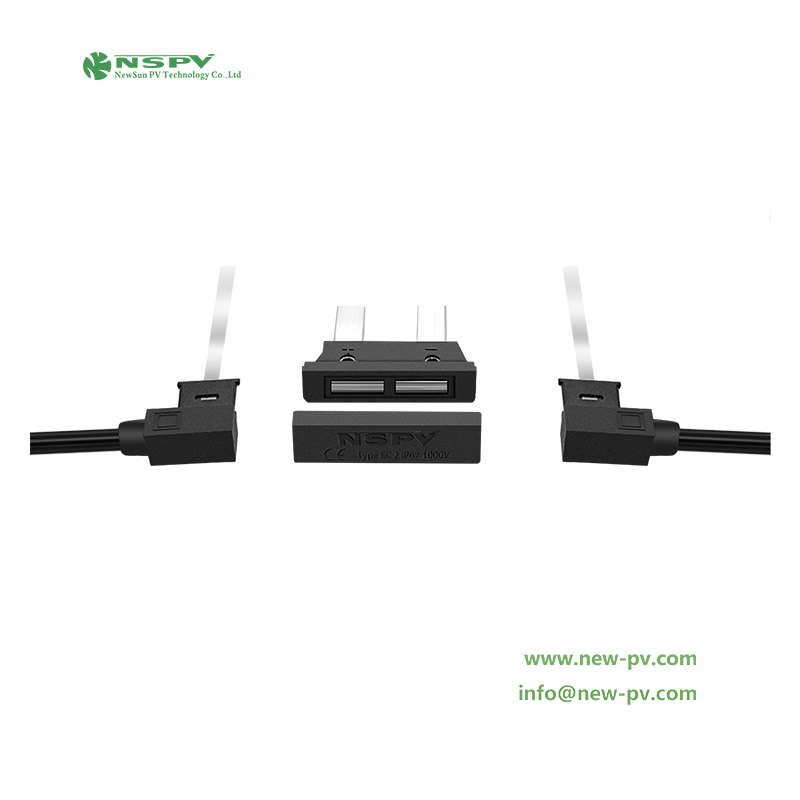

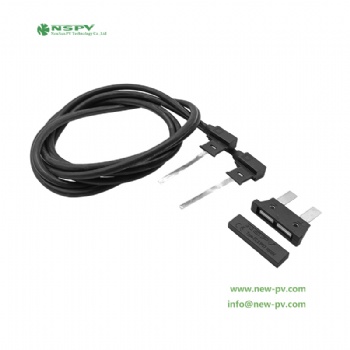

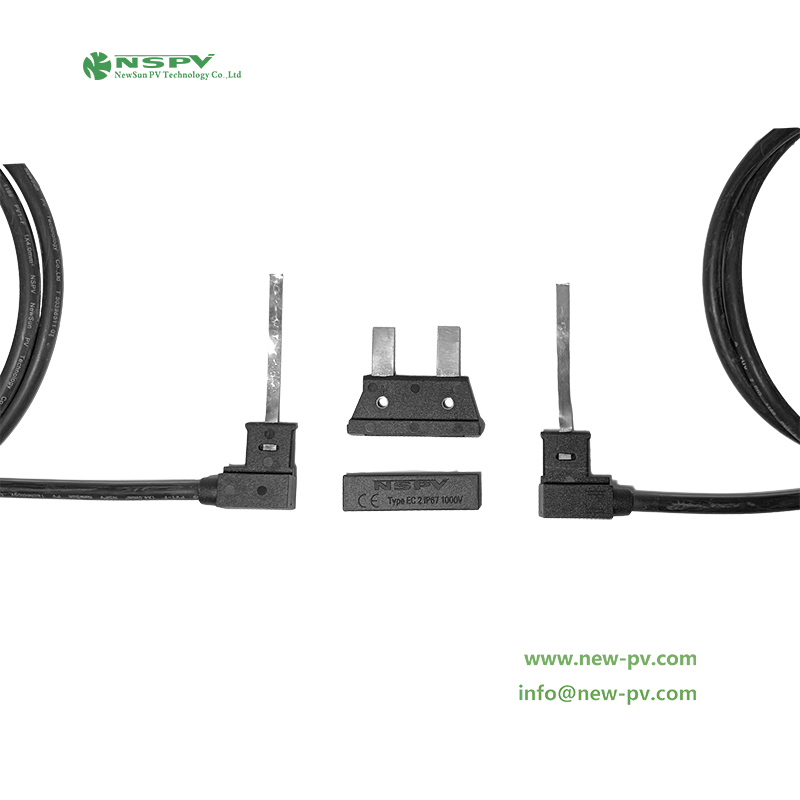

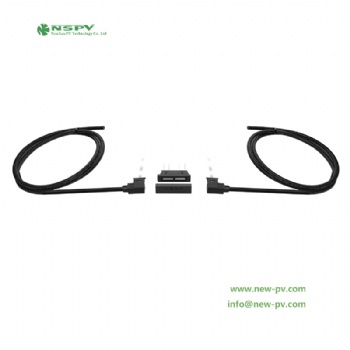

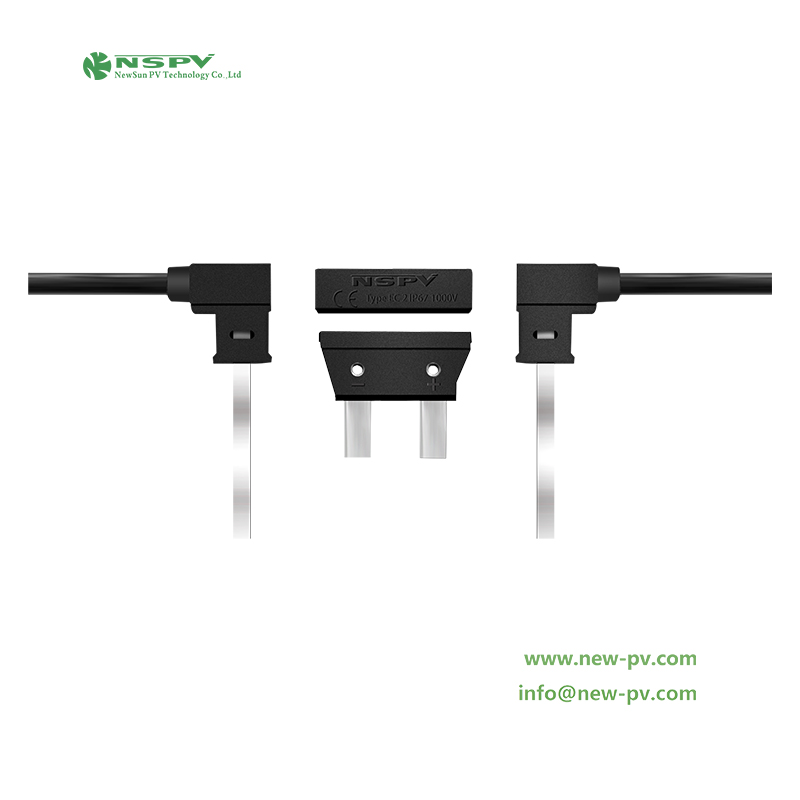

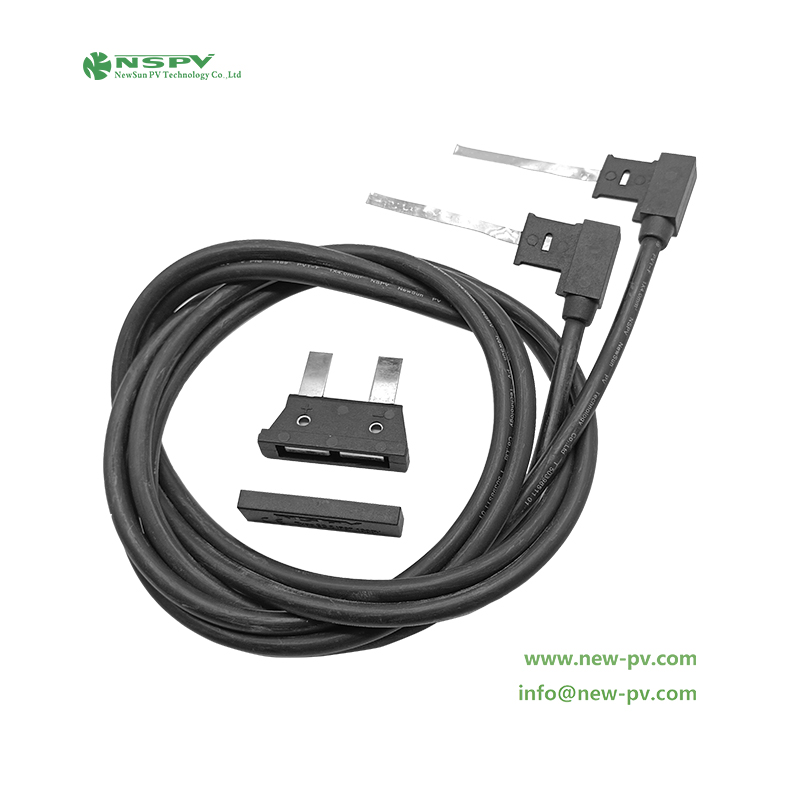

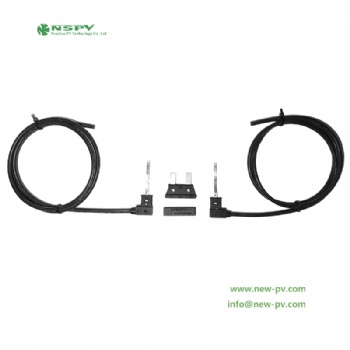

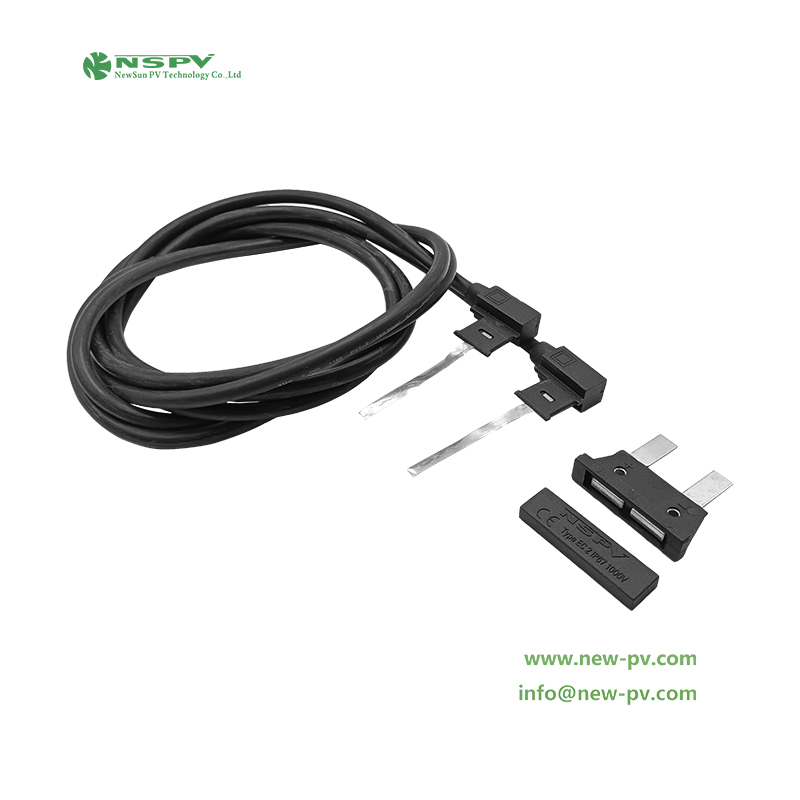

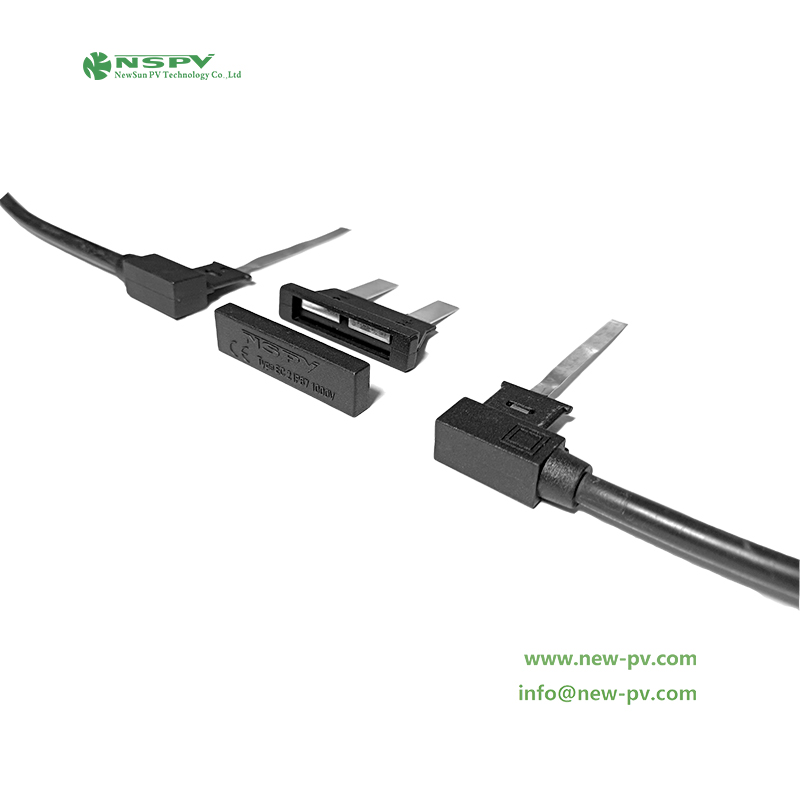

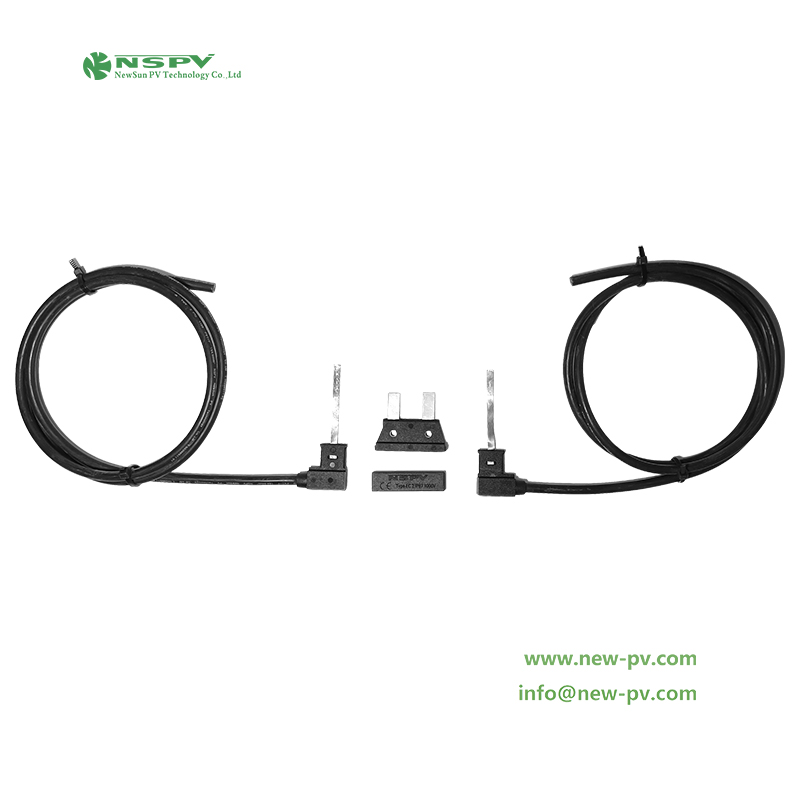

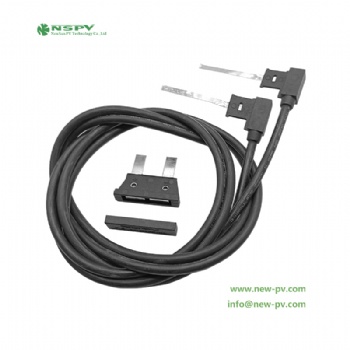

PV edge connector for solar bifacial modules EC1+2
- The slimline PV edge connectors can be mounted on the edge of double-sided panels without obscuring any solar cells.
- INQUIRY
EC1+EC2 PV Edge Connector specifications
| BOX Material | PA/CU | Flame Class | UL94-V0 |
| Rated impulse voltage | 16KV | Ambient temperature range | -40℃…+85℃(IEC) |
| Rated voltage | 1000V&1500VDC | Suitable cable cross sections | 2.5~4mm2/14~12AWG |
| Test voltage | 8kV(50Hz,Imin) | Overvoltage category/Pollution degree | CATIII/2 |
| Typical contact resistance | ≤ 0.25mΩ | Upper limiting temperature | 110℃(IEC) |
| Contact material | Copper,Tin plated | Installation type | Outdoor,UV resistant(F1) |
| Degree of protection | IP68(In potting) | Connecting system | Soldering |
| Safety degree | II | Reference standard | TUV/CE(IEC62852:2014) |
