PV edge connector

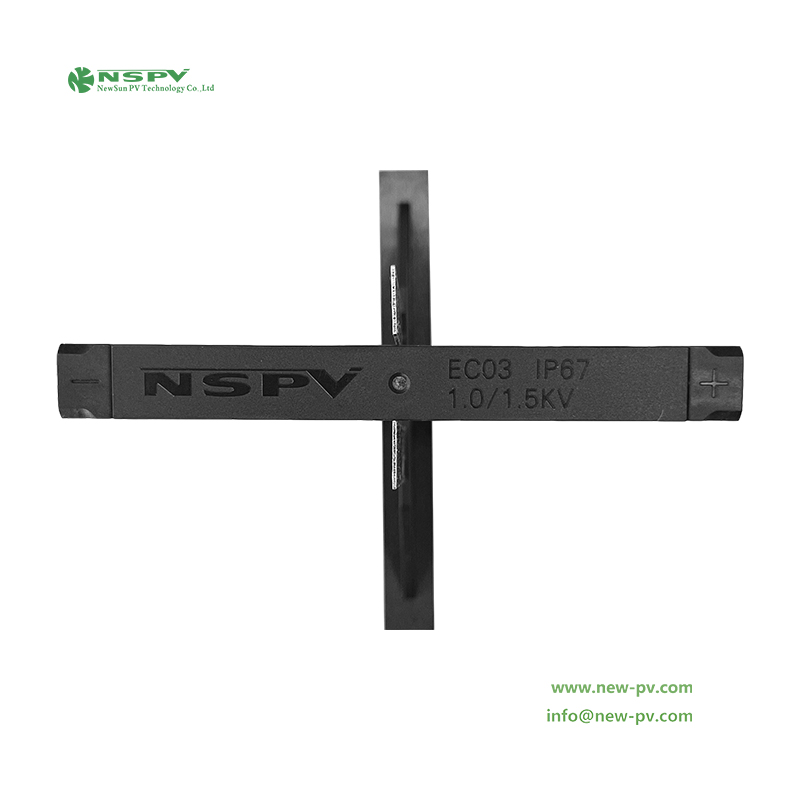

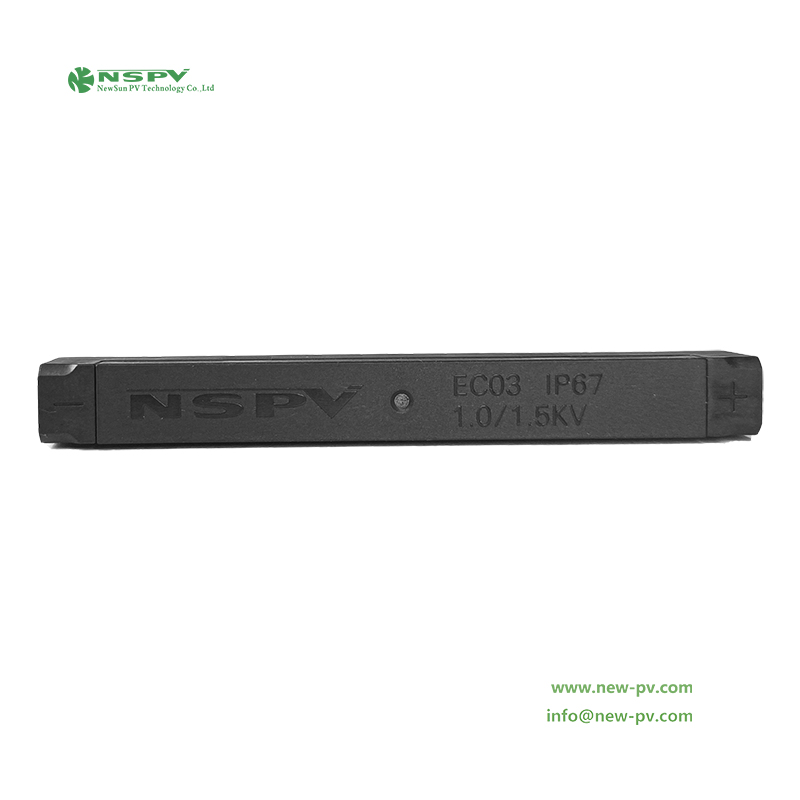

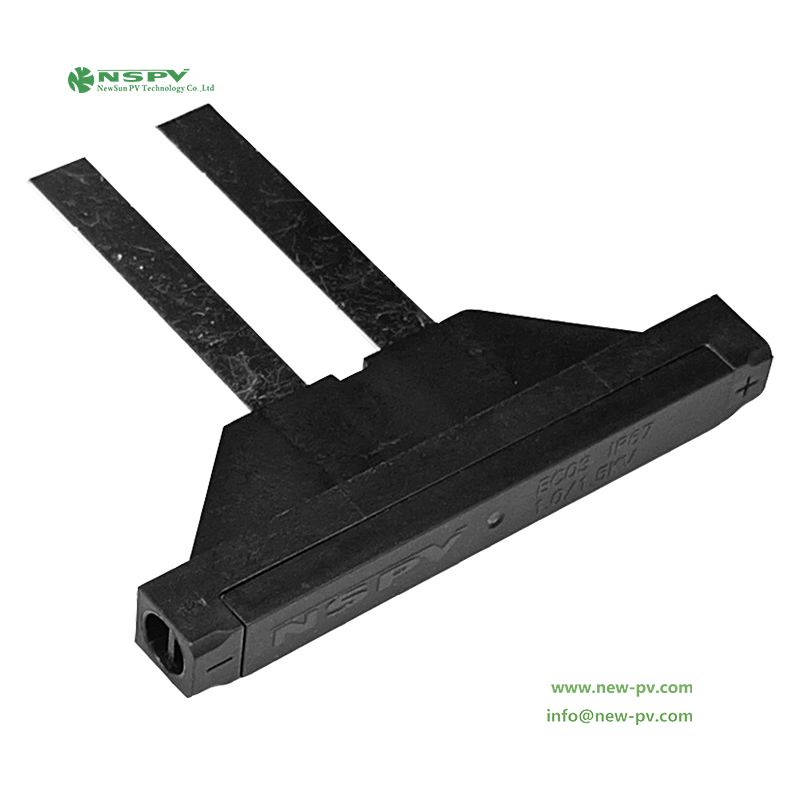

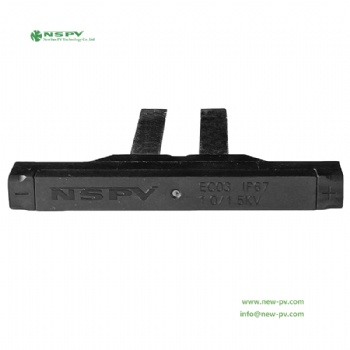

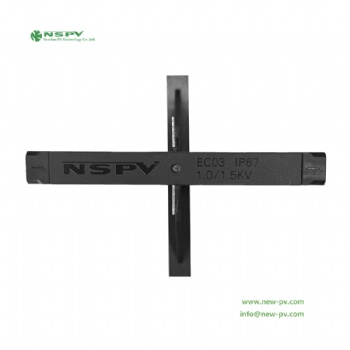

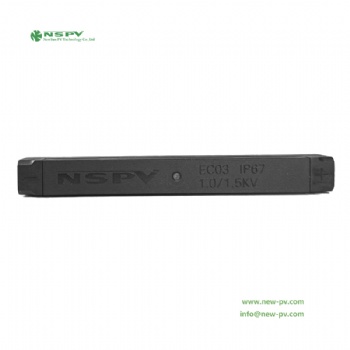

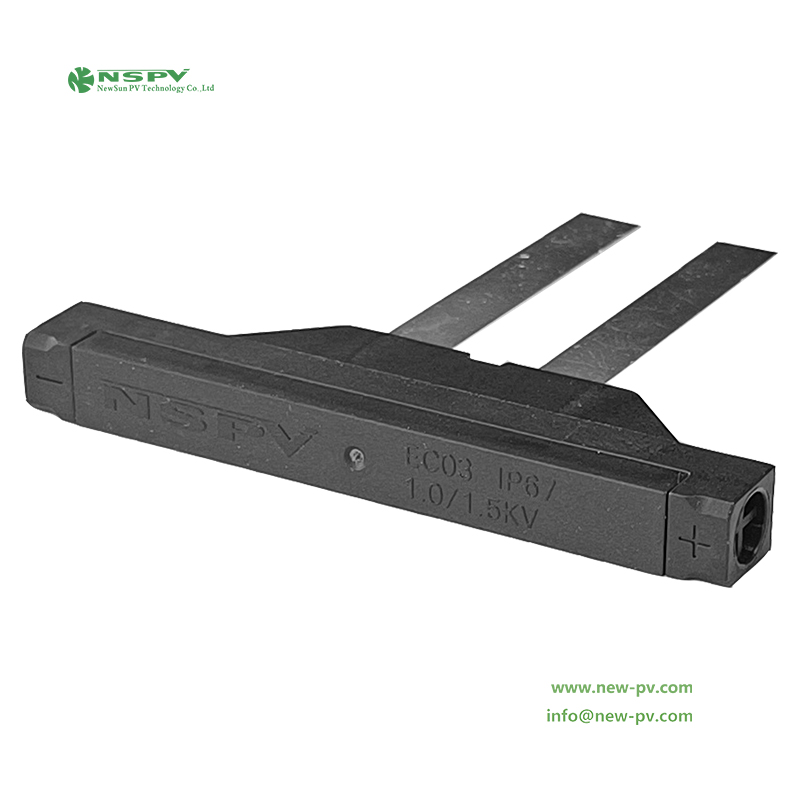

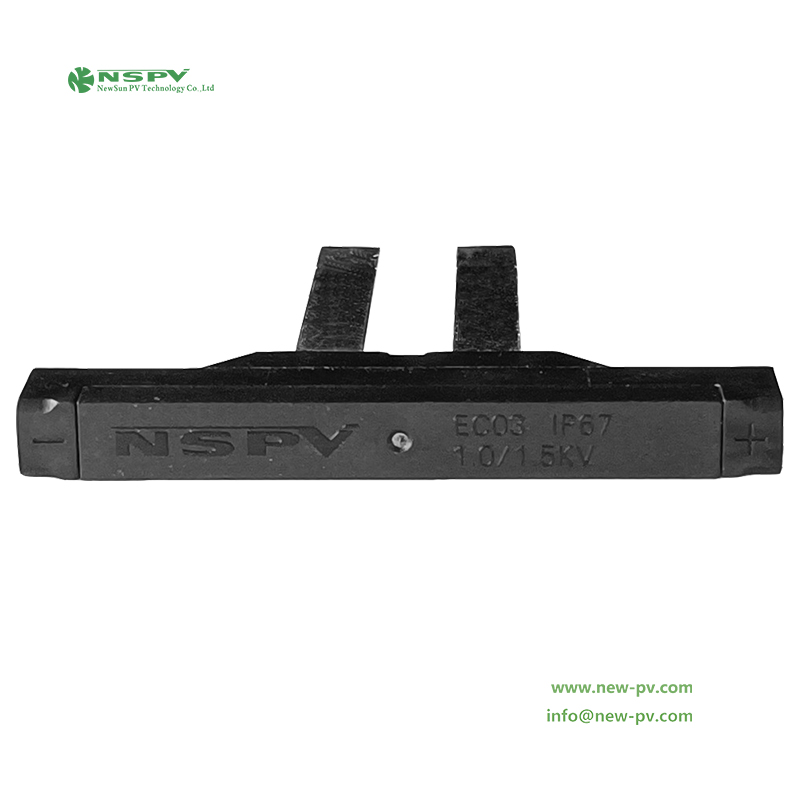

PV edge connector for solar bifacial modules EC03

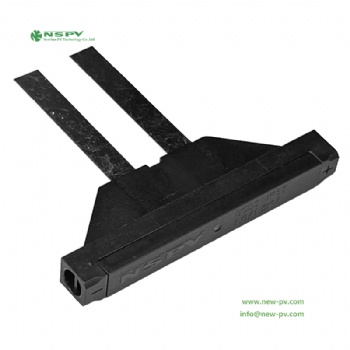

- The slimline PV edge connectors can be mounted on the edge of double-sided panels without obscuring any solar cells.
- INQUIRY
EC03 PV Edge Connector specifications
| BOX Material | PA/CU | Flame Class | UL94-V0 |
| Rated current | Max.15A(Diode 20A) | Ambient temperature range | -40℃…+85℃(IEC) |
| Rated voltage | 1000V&1500VDC | Suitable cable cross sections | 2.5~4mm2/14~12AWG |
| Test voltage | 8kV(50Hz,Imin) | Diode Number | Each 1PC |
| Typical contact resistance | ≤ 0.25mΩ | Upper limiting temperature | 120℃(IEC) |
| Contact material | Copper,Tin plated | Range of cable gland(mm) | O.D.:5.5 |
| Degree of protection | IP67(In potting) | Ribbons size(mm) | 2x7.0 |
| Safety degree | II | Connection of bus ribbons | Soldering |
