Terminal Block

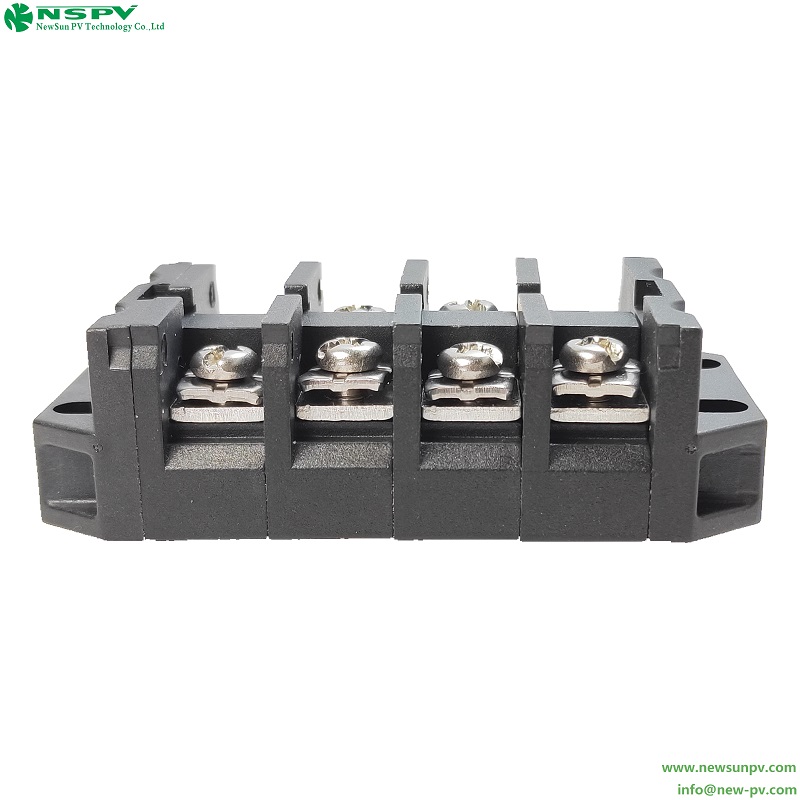

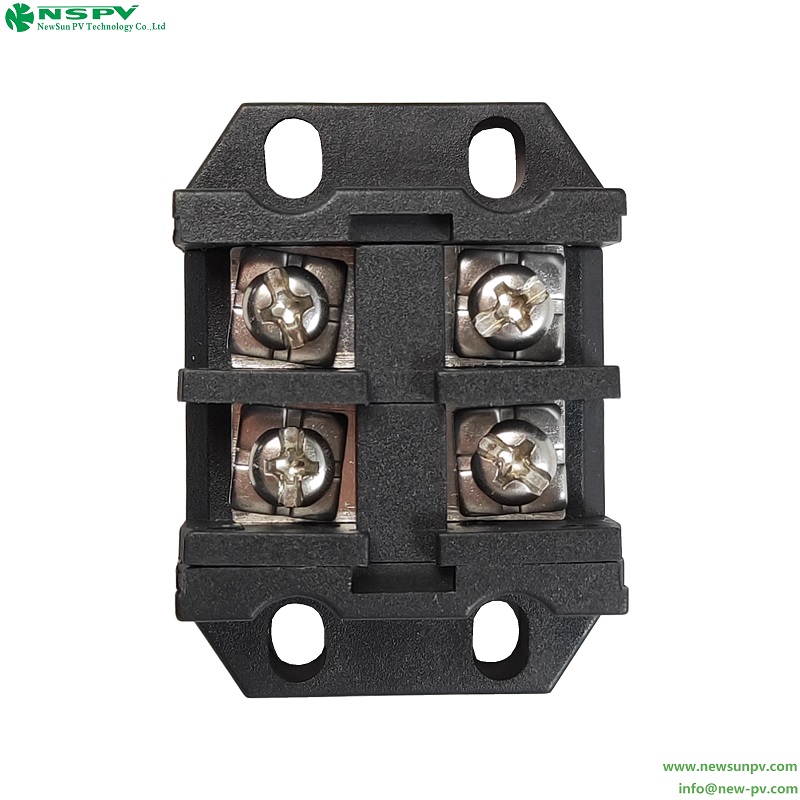

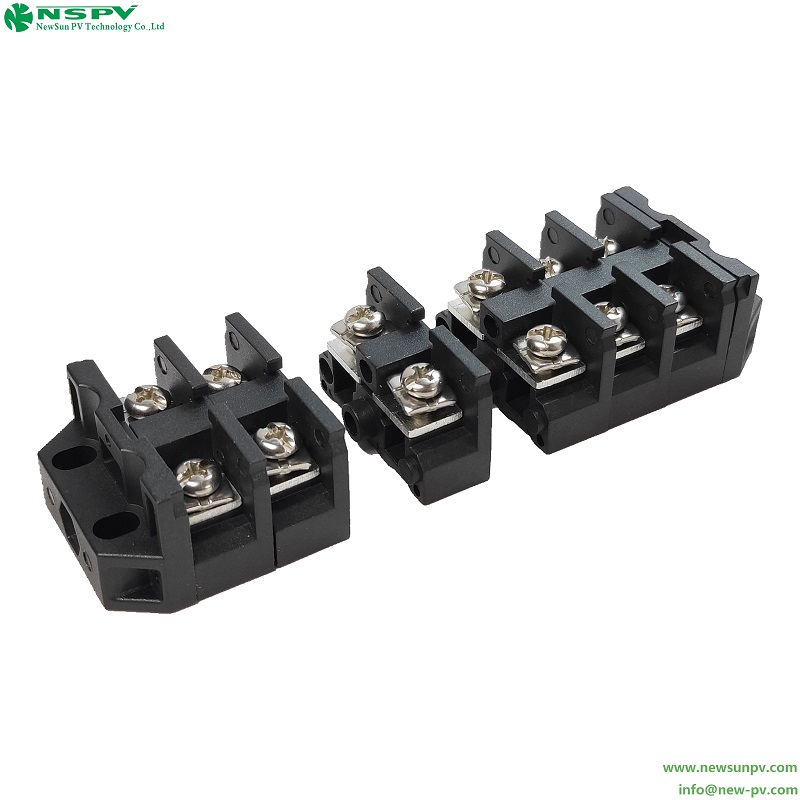

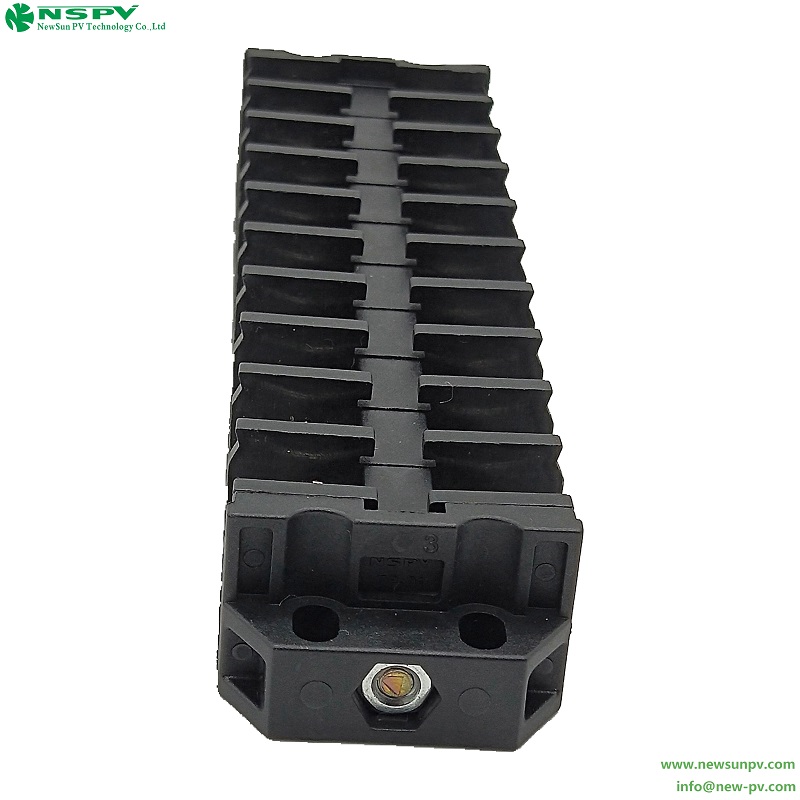

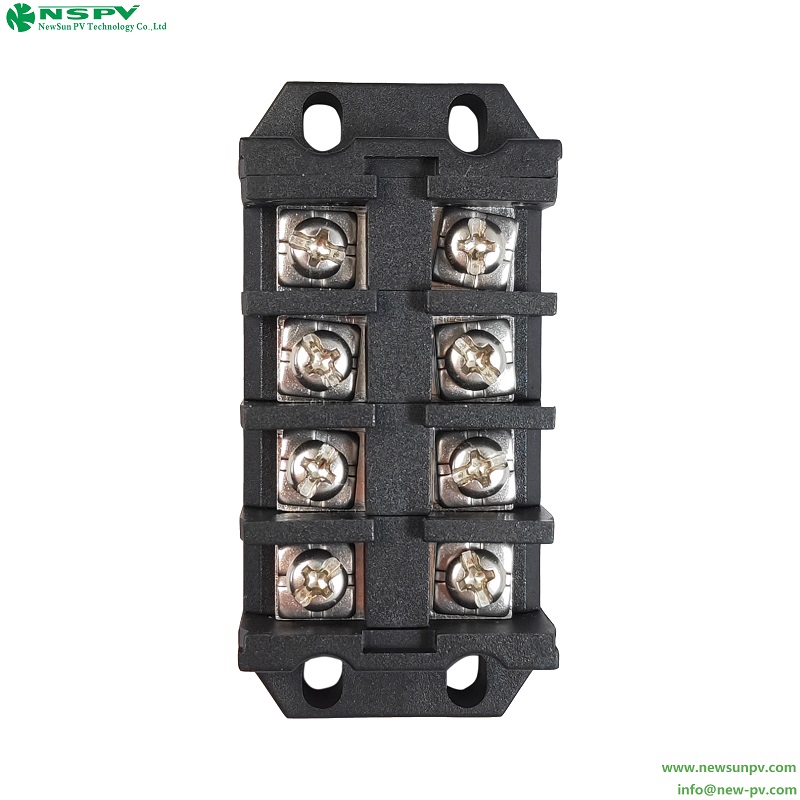

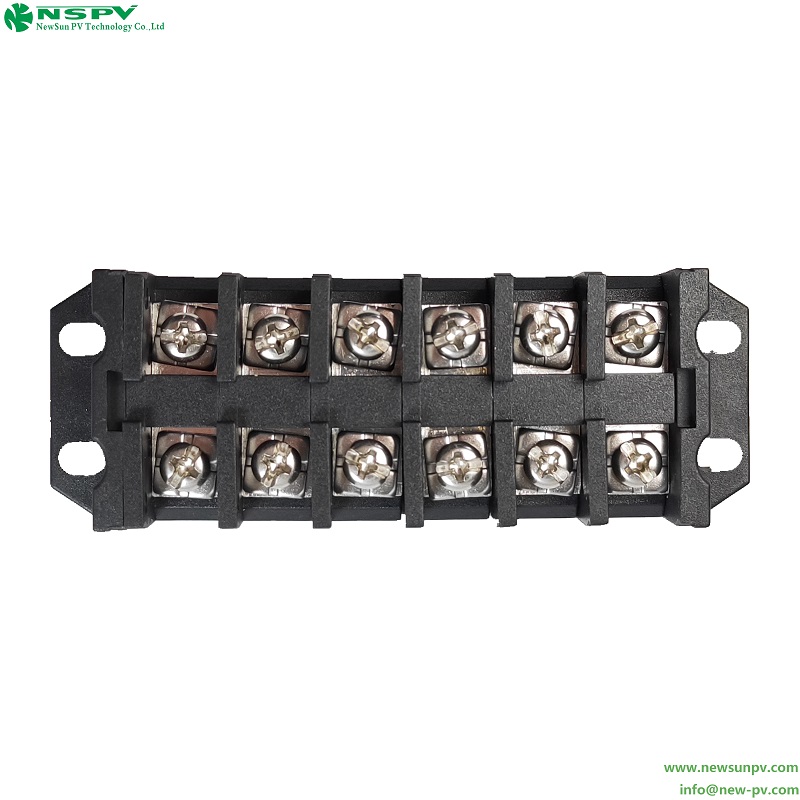

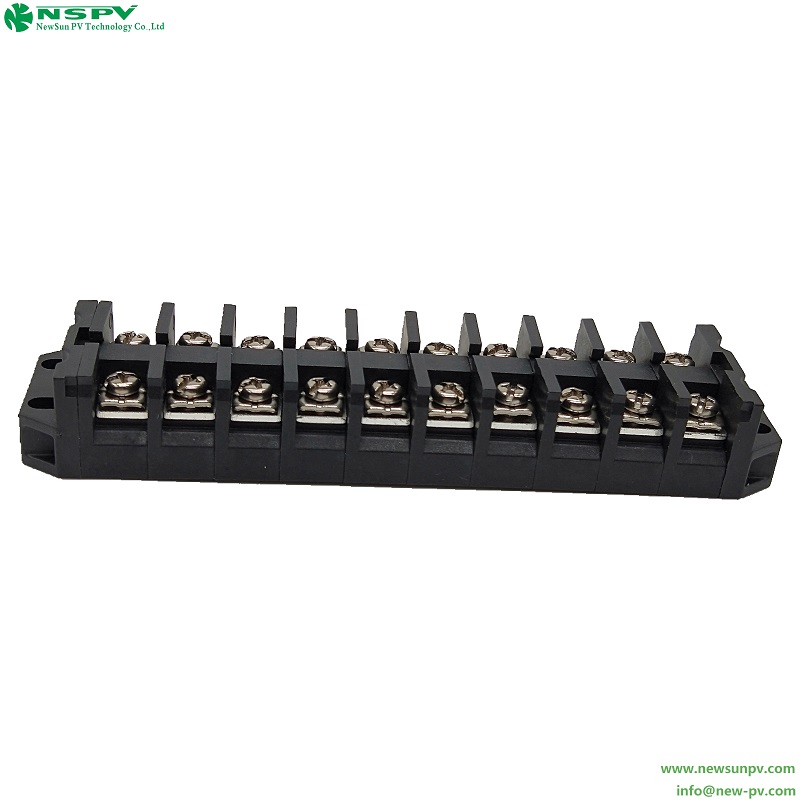

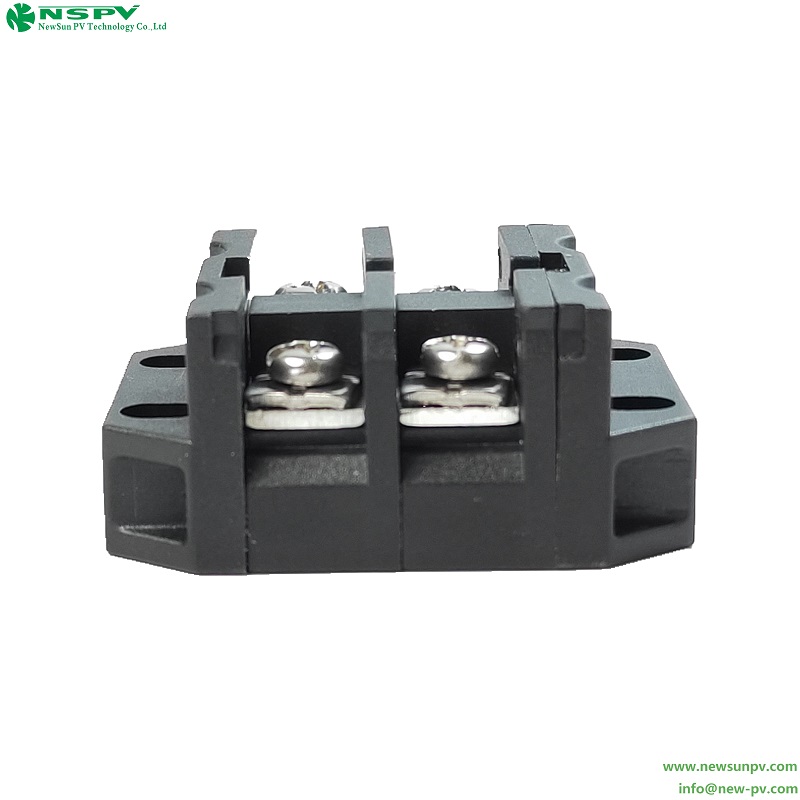

Terminal Block 2-20P
- A terminal base of the wire connection between the internal external automatic instrument panel with signal system and the electric protection device.
- It is characterized by screws on both sides of the terminal base.
- INQUIRY
Specifications
| TB Terminal Block 2-20P | |||
| Product Specifications | |||
| Insulation material | PBT | Ambient temperature range | -40℃…+90℃ |
| Rated current/Voltage(DC) | Max.:50A/1000VDC | Storage temperature | -40℃…+90℃ |
| Rated current/Voltage(AC) | Max.:60A/690VAC | Connecting system | Lock connection |
| Test voltage | 4kV(50Hz,Imin) | Rise in temperature | 30℃ |
| Contact material | Copper,Tin plated | Nut cap locking force | 0.2-0.6Nm |
| Flame class | UL94-V0 | ||
