Solar cable harness assembly

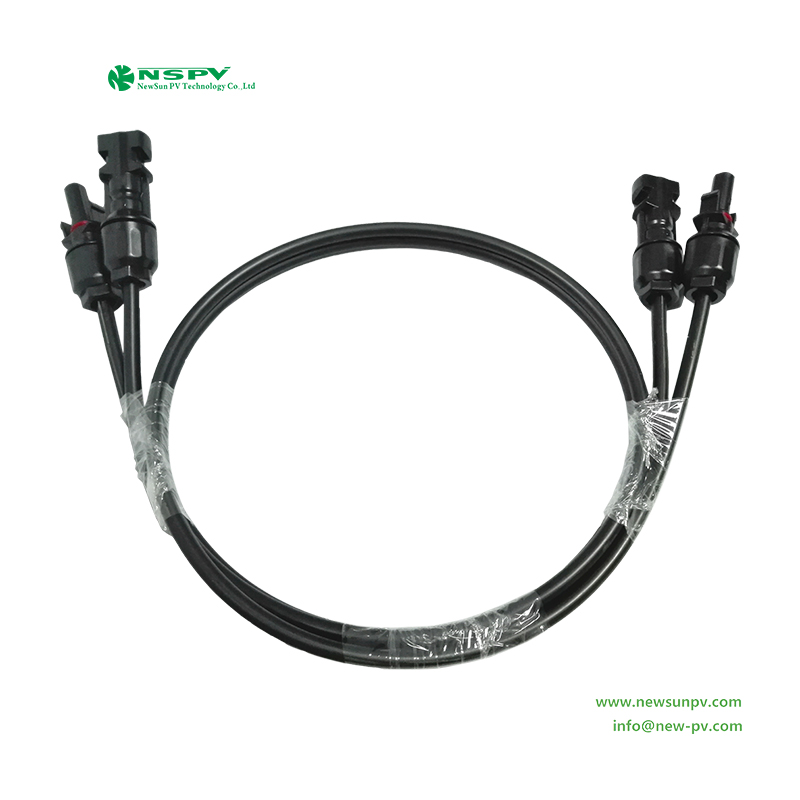

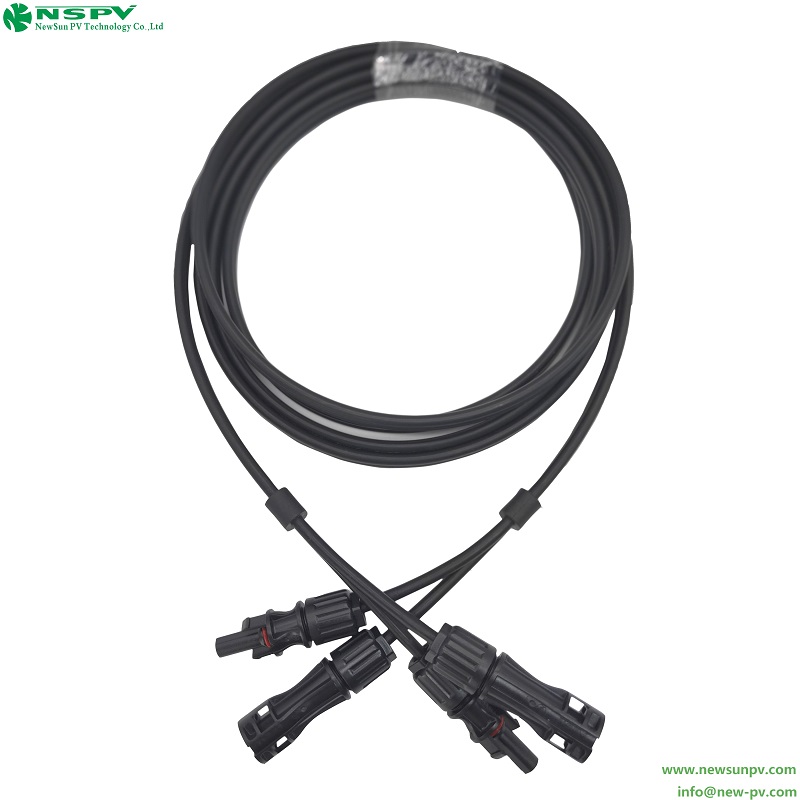

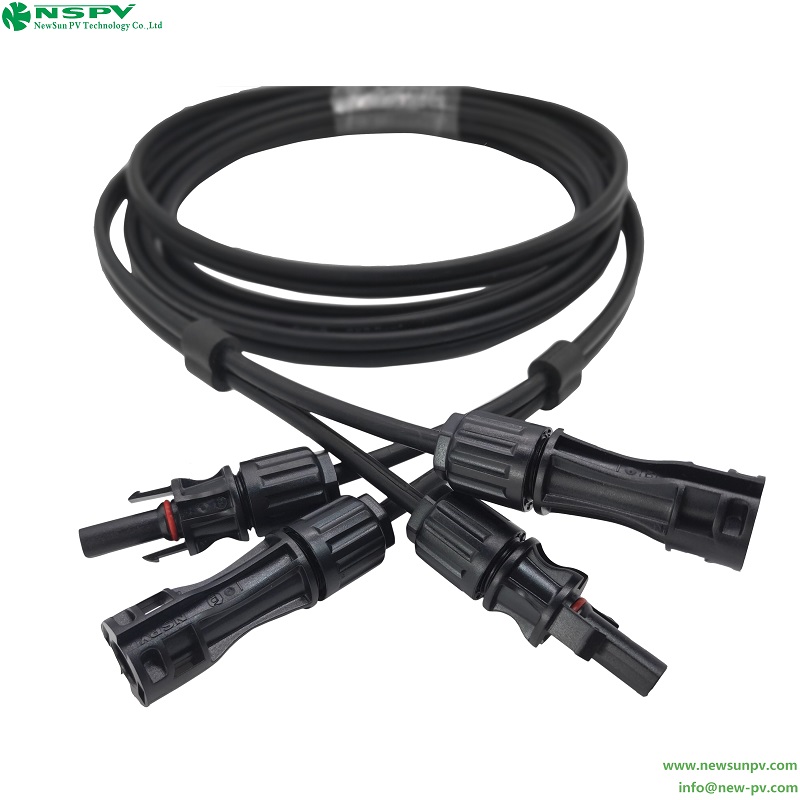

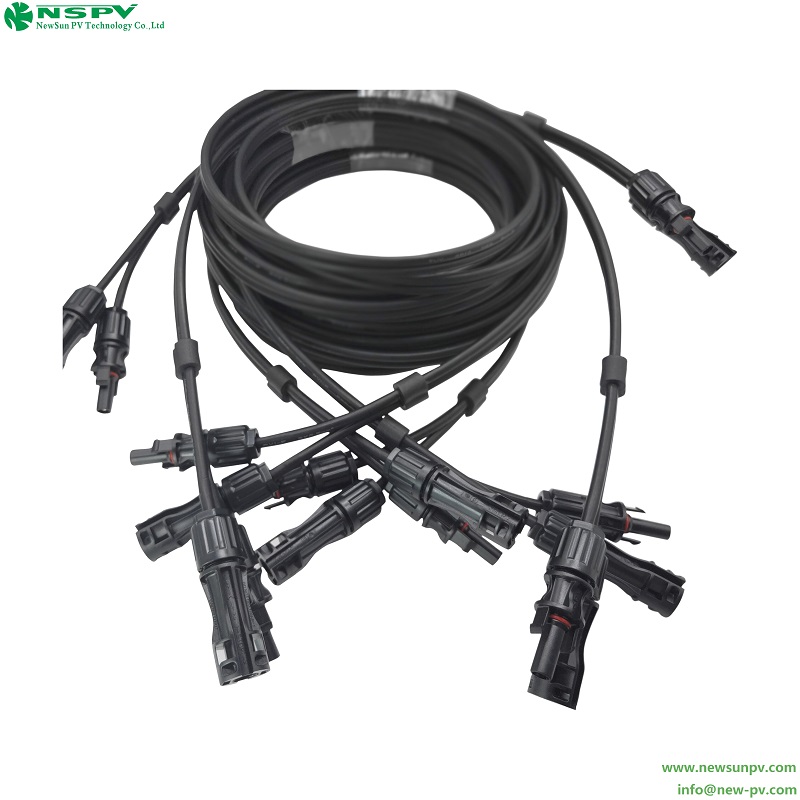

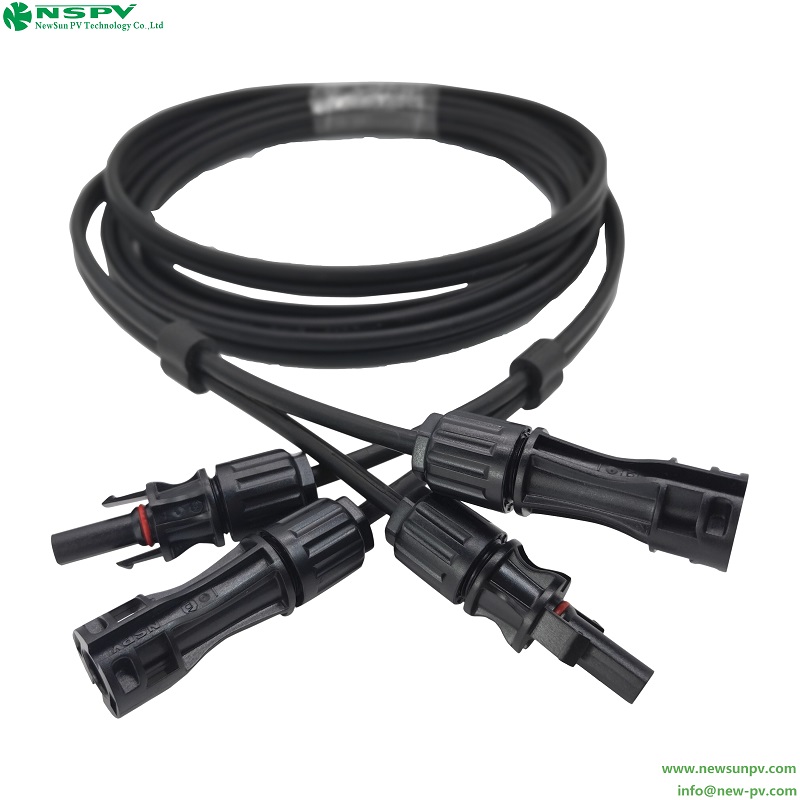

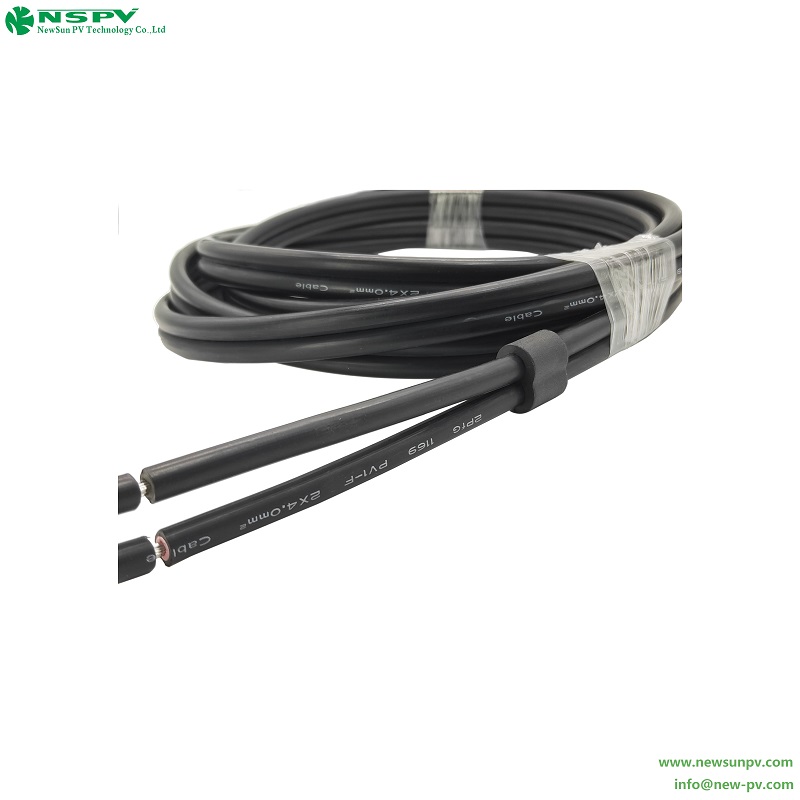

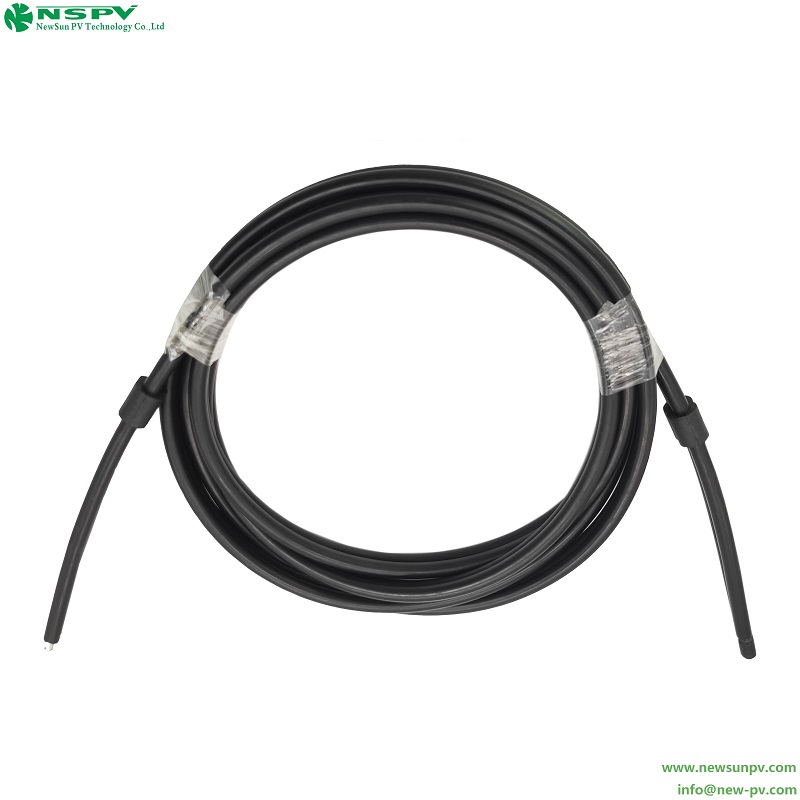

Twin cable with connectors
- Solar cable harness is used for solar system, the waterproof is IP68. It is a new type connector, detachable, good stable specification and convenient to assemble.
- INQUIRY
Specifications
| Insulation material | PPE/TPE |
| Rated current | 30A |
| Rated voltage | 1000V(IEC) 600(UL) |
| Test voltage | 6KV(50Hz,Ⅰmin) |
| Typical contact resistance | ≤5mΩ |
| Contact material | Copper, Tin plated |
| Degree of protection | IP67 |
| Safety degree | Ⅱ |
| Overvoltage category/Pollution degree | CATⅢ/2 |
| Flame class | UL94-V0 |
| Ambient temperature range | -40℃-+85℃(IEC) |
| Suitable cable cross sections | 2.5/4.0/6.0mm² |
| Temperature limits | 110℃(IEC) |
