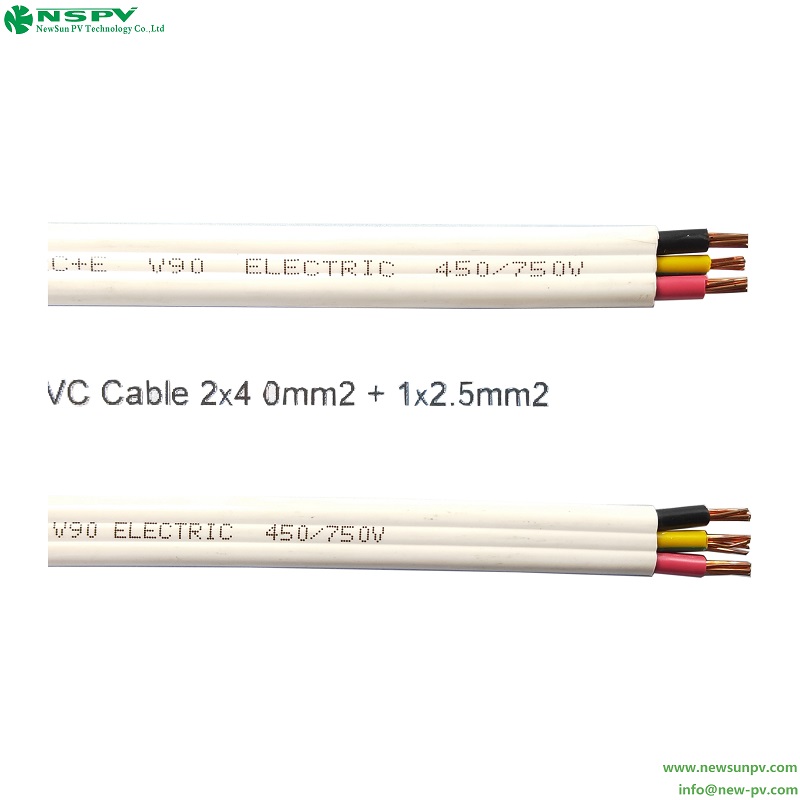

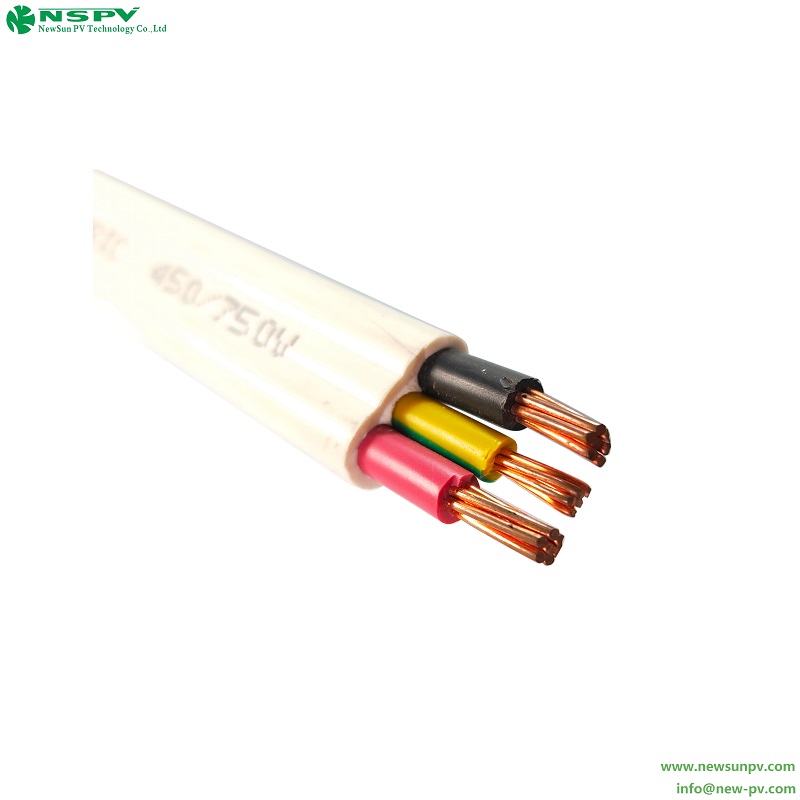

Twin and Earth AC cable

Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.
INQUIRY

Product's Name		Twin and Earth AC cable 2x4.0mm2+1x2.5mm2
Specification		2x4.0mm2+1x2.5mm2
Construction
Item		Unit	Details
Conductor	Material		CU
	Composition	No./mm	27/0.85+17/0.67
	O.D.	mm	2.512+2.011
Insulation	Material		PVC,V-90
	Nom.Thick	mm	0.82+0.72
	O.D.	mm	4.12+3.41
	Color		Red / Black / Yellow and green
Jacket	Material		PVC,5V-90
	Nom.Thick	mm	1.2
	O.D.	mm	6.5*14.4（± 0.3)
	Color		White
