TUBE Types

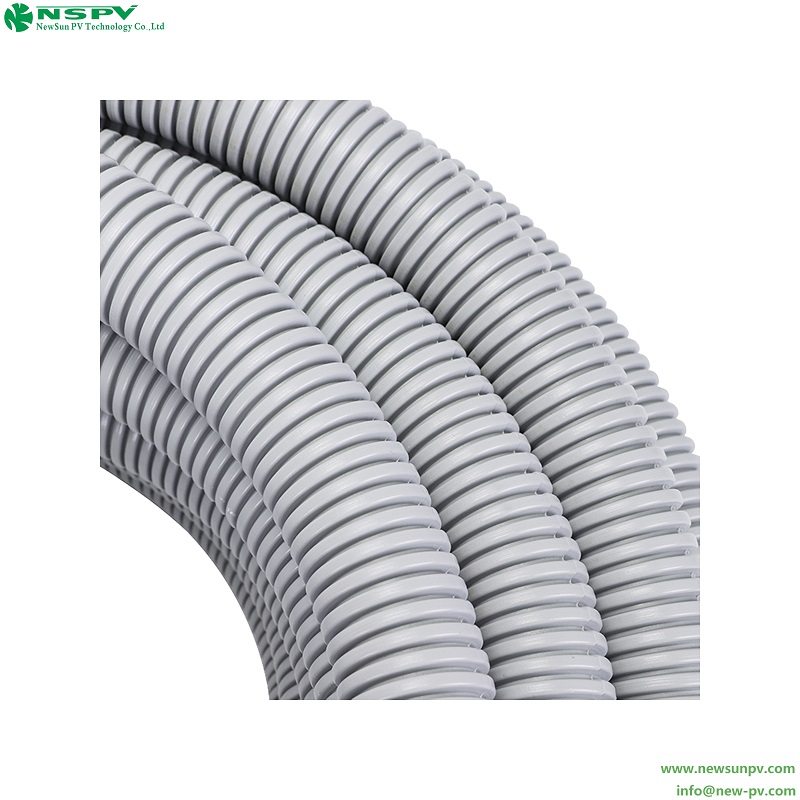

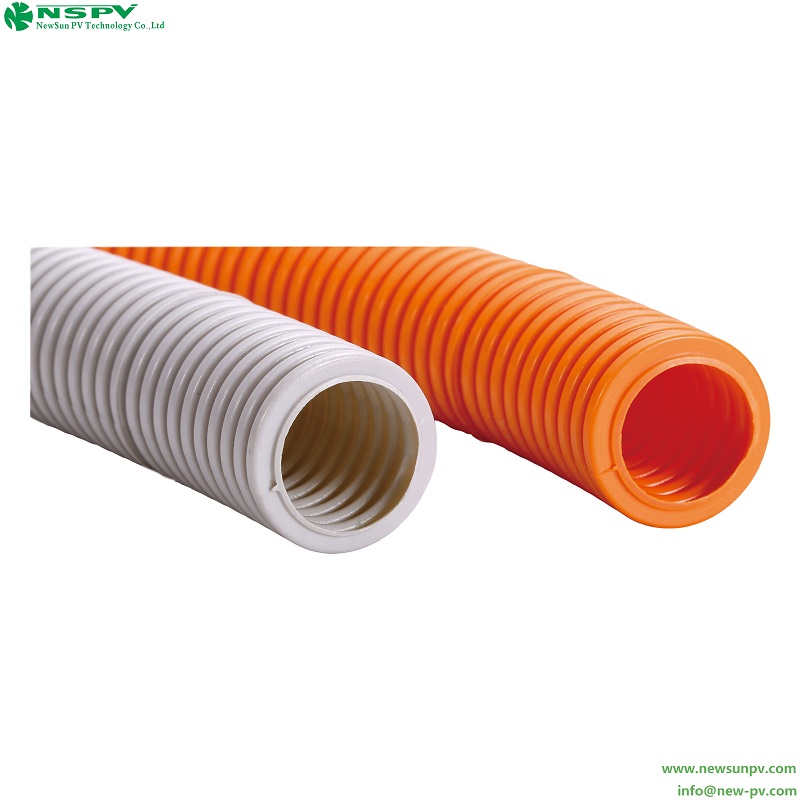

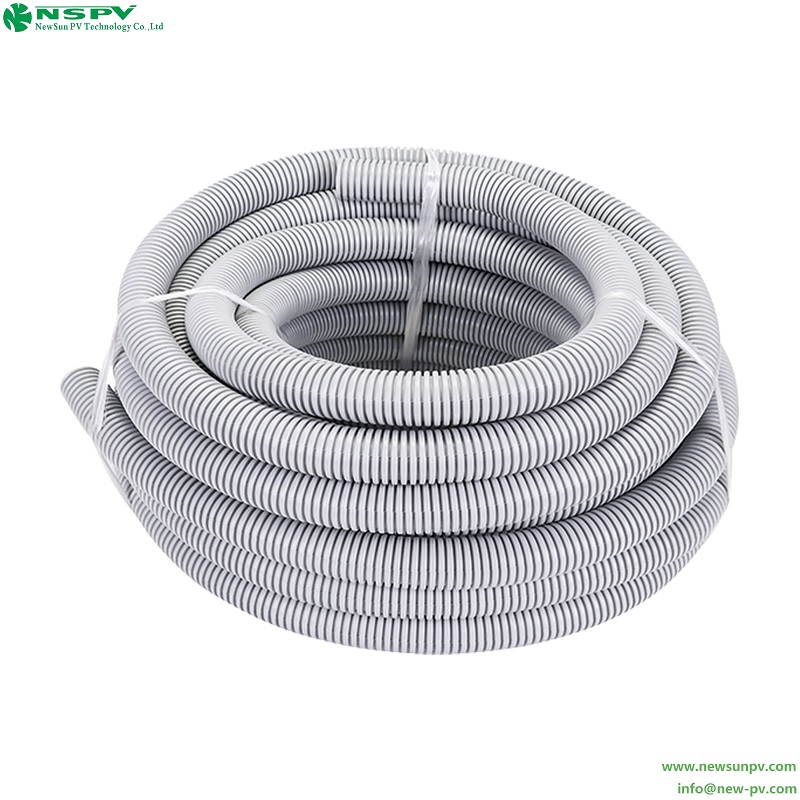

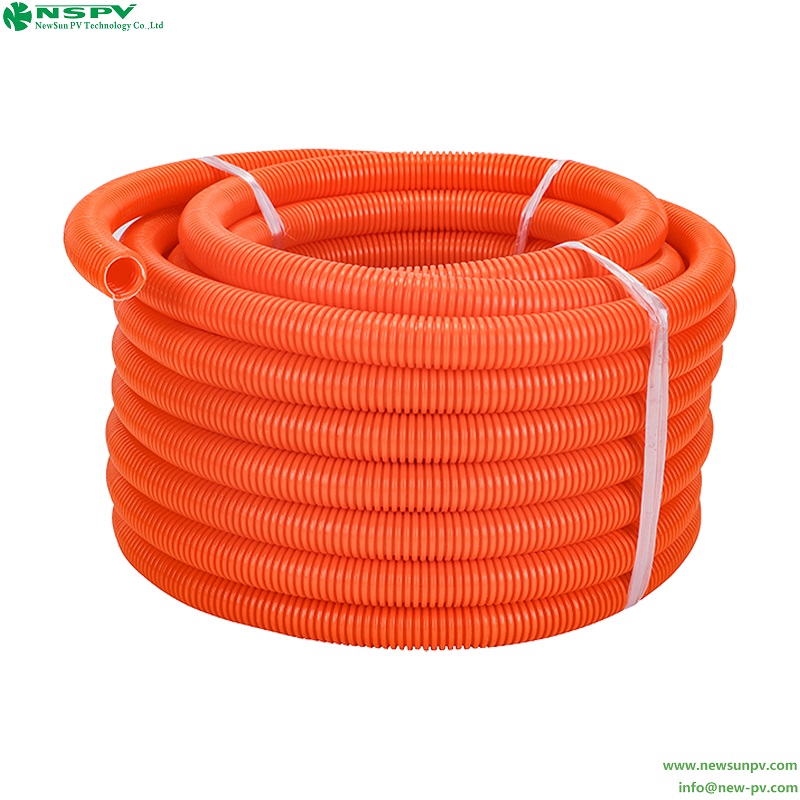

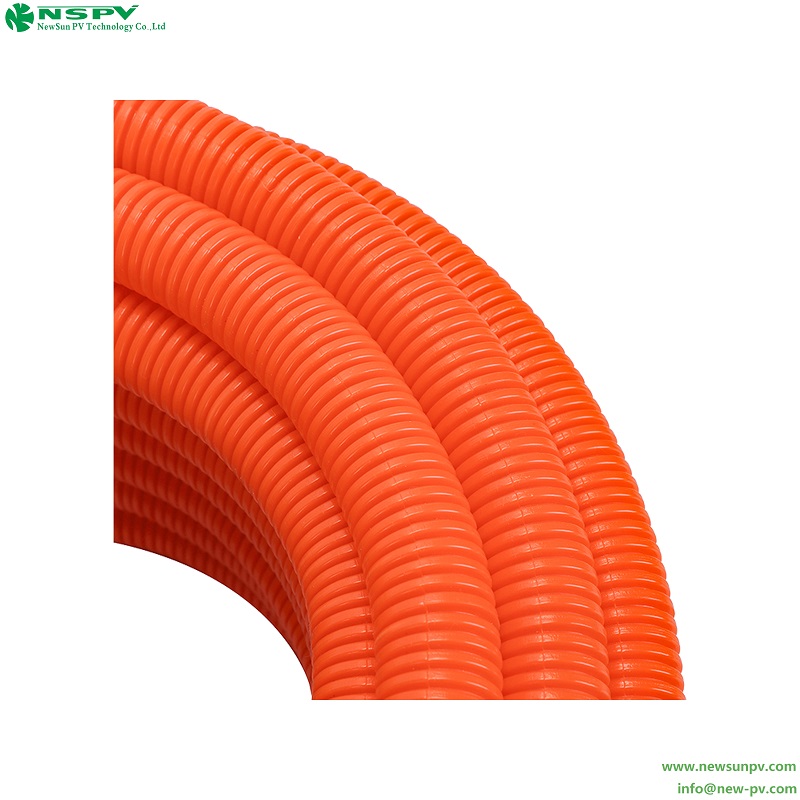

Solar 25mm corrugated pipe-HD/MD
- The corrugated pipe-HD/MD use to protect the solar cable, it can extend the life of accessories
- INQUIRY
Specifications
| Item | Size(MM) | Outer DIA | Inner DIA | Weight(G)/M | Package | Cbm/Roll(M3) | Printing Requirements |
| PVC CORRUGATED CONDUIT MD GREY UV | 20 | 20MM | 14.5MM | 60 | 50M/Roll | 0.03 | SOLAR P.V. Medium Duty UV AS/NZS 5033: 2012(T) AS/NZS 2053:5 -5 Deg + 60 Deg |
| 25 | 25MM | 19.5MM | 110 | 50M/Roll | 0.05 | ||
| 32 | 32MM | 24MM | 155 | 25M/Roll | 0.04 | ||
| 40 | 40MM | 32.6MM | 190 | 25M/Roll | 0.065 | ||
| 50 | 50MM | 41.8MM | 230 | 25M/Roll | 0.073 | ||
| PVC CORRUGATED CONDUIT HD ORANGE | 20 | 20MM | 14.5MM | 100 | 50M/Roll | 0.03 | SOLAR P.V. Heavy Duty UV AS/NZS 5033: 2012(T) AS/NZS 2053:5 -5 Deg + 60 Deg |
| 25 | 25MM | 19.5MM | 155 | 50M/Roll | 0.05 | ||
| 32 | 32MM | 24MM | 210 | 25M/Roll | 0.04 | ||
| 40 | 40MM | 32.1MM | 230 | 25M/Roll | 0.065 | ||
| 50 | 50MM | 41.4MM | 320 | 25M/Roll | 0.073 |
