Solar 1000VDC PV4.0 DC Panel Connector
- The PV4.0 DC solar cable connector is used for solar system assemble, the waterproof is IP67, it is a detachable, new type connector, good stable specification, convenient to assemble.
- INQUIRY
Specifications
PV4.0 DC Solar Panel Connector Product Specifications
| Product Specifications | |
| Insulation material | PPE/PA |
| Rated current | 30A |
| Rated voltage | 1000VDC |
| Test voltage | 6KV(50Hz,Imin) |
| Typical contact resistance | ≤0.25mΩ |
| Contact material of MC4 connector | Copper, Tin Plated |
| Degree of protection | IP67 |
| Safety degree | II |
| Flames class | UL94-V0 |
| Material RTI | 110°c |
| Withdrawal force | ≥50N |
| Insertion force | ≤50N |
| Ambient temperature range | -40°c until+85°c |
| Suitable cable cross sections | 2.5~6.0mm²(14AWG~10AWG) |
| Pin dimensions | Φ4.0 |
Advantage:
Simple and easy to install
Standard design to assemble discretionarily
Anti-aging and UV-resistant
Outdoor used

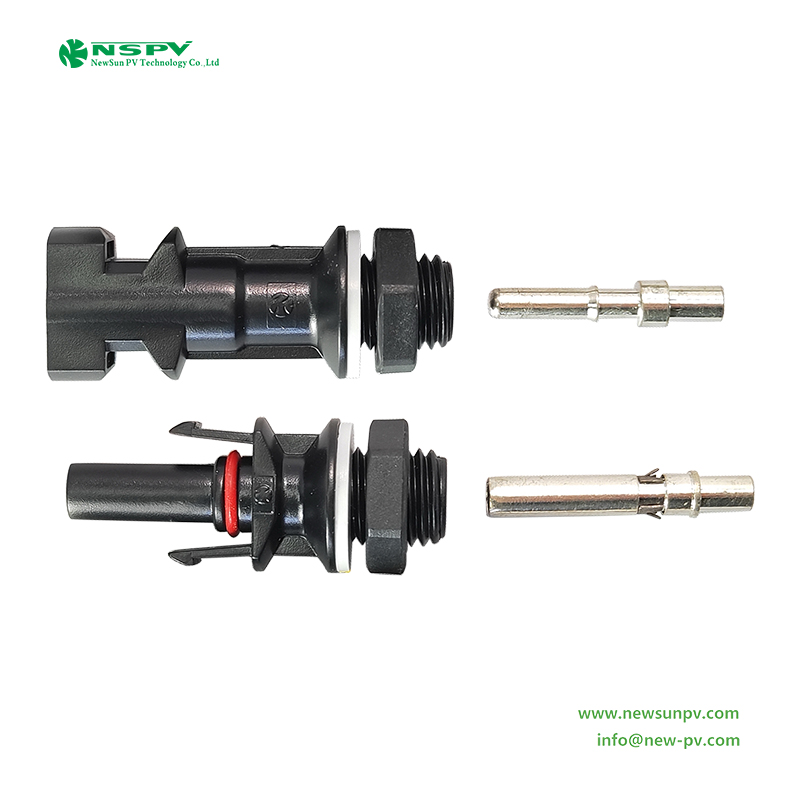

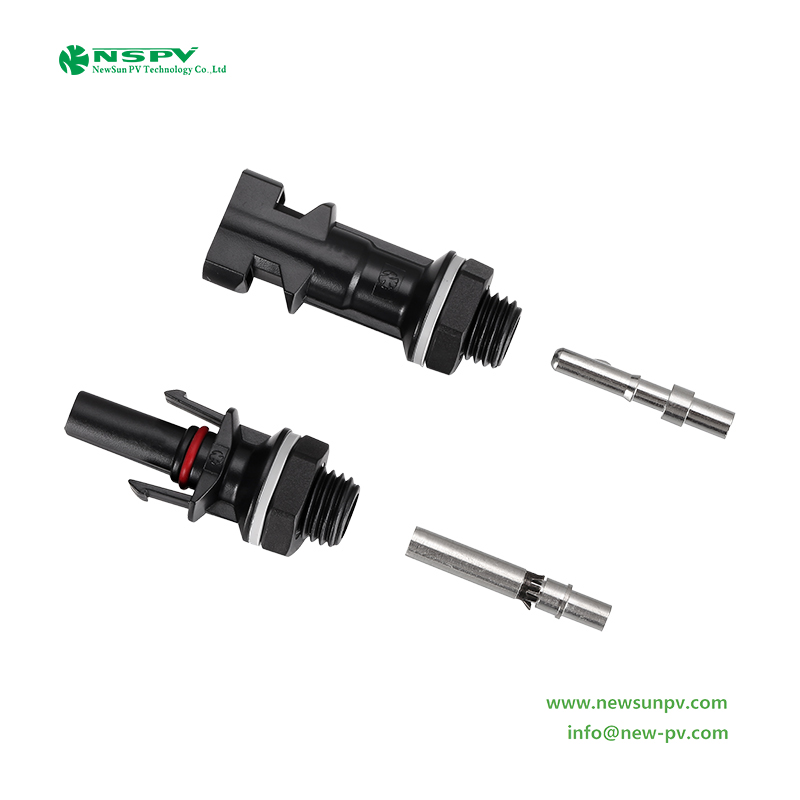

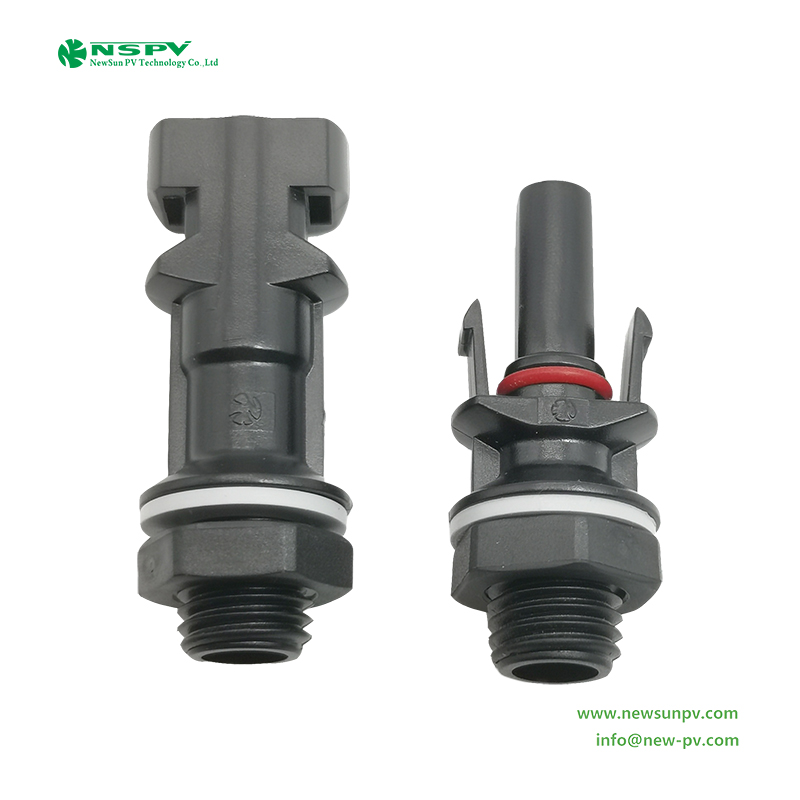

Picture:
