solar tools

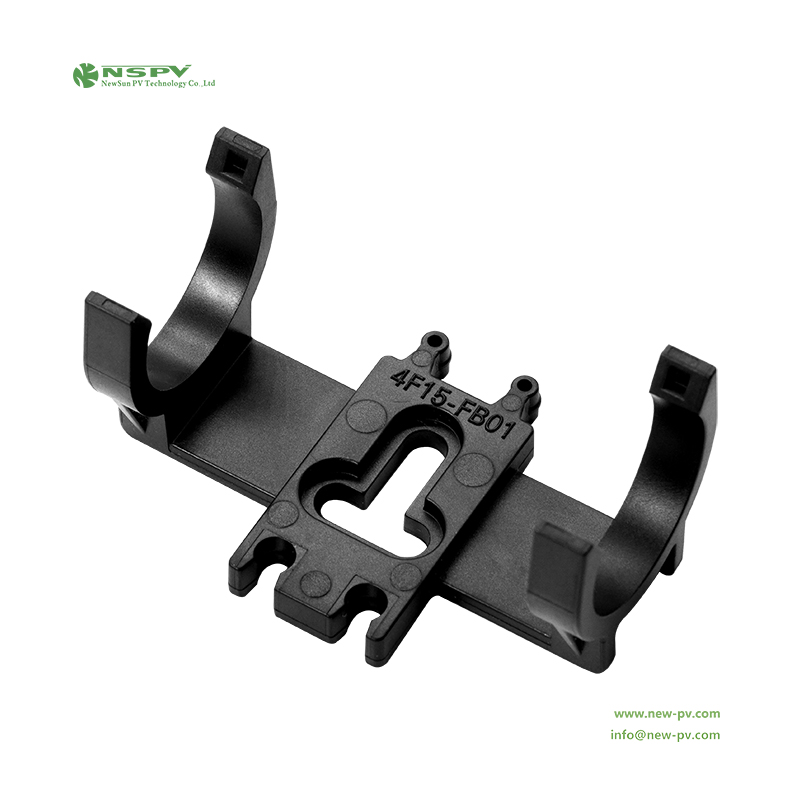

1500VDC solar fuse connector fixing base

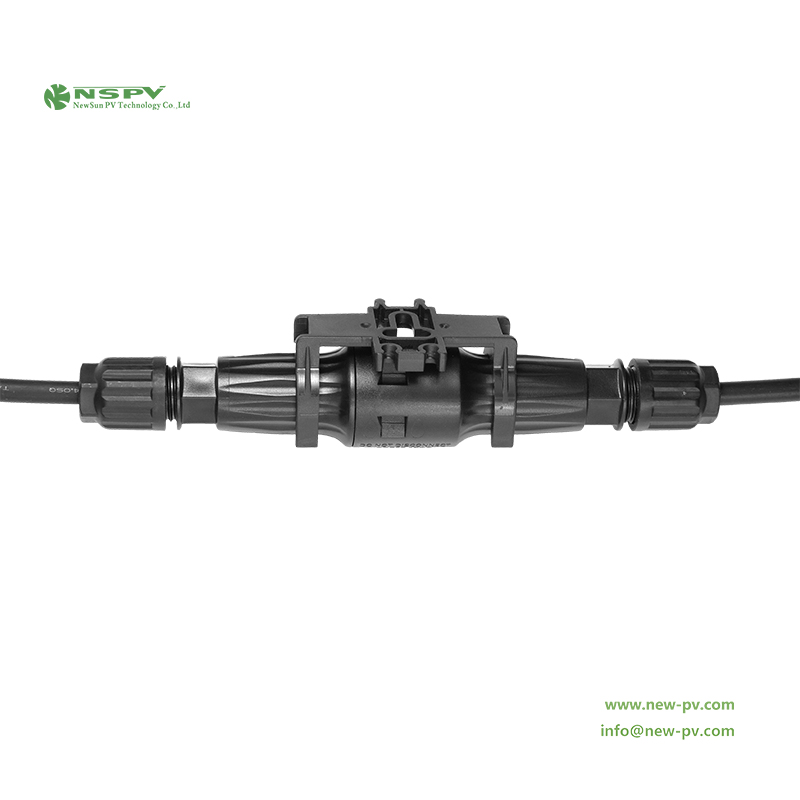

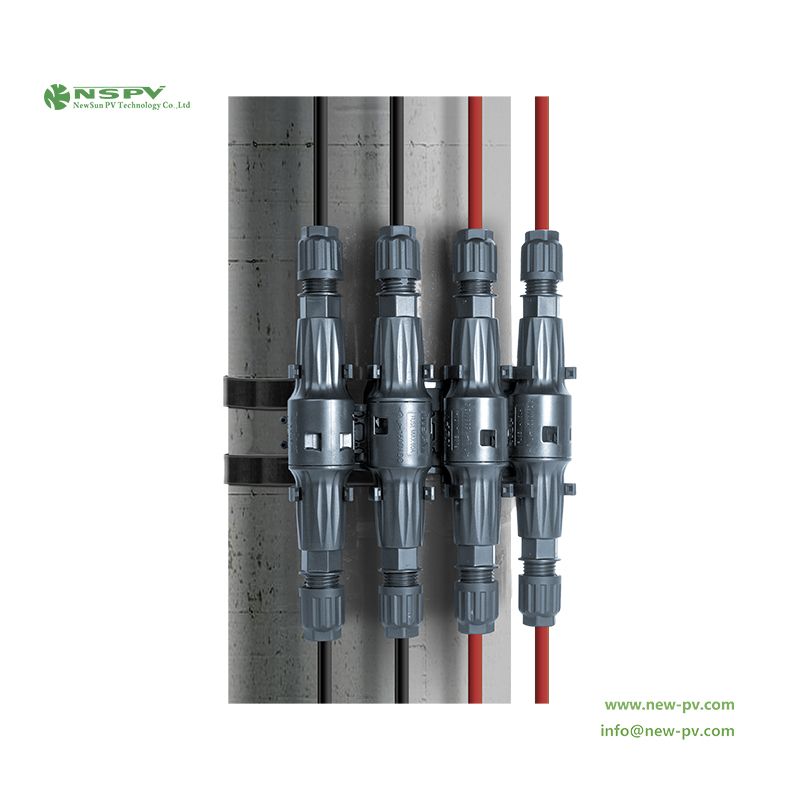

- 1500VDC solar fuse connector fixing base is used with cable ties and screws to fix the connector in order to stabilize internal fuses.
- INQUIRY
1500VDC PV 4.0 Fuse Connector Fix Base
| Body material | PC/PA/PBT | Flame class | UL94-V0 |
| Suitable connector part no. | 4F0-15,4F1-15,4F2-15 and 4F3-1 | Ambient temperature range | -40℃…+85℃(IEC) |
| Cable tie size(Max.) | 13(W)*2.5(T) mm | Fix screw size | M4*L(As required) |
