1000VDC PV4.0光伏连接器 > 光伏1000VDC PV4.0 线端连接器 >
光伏1000VDC PV4.0线端连接器
- PV4.0光伏连接器主要用于光伏系统的安装，防护等级为IP67，可拆卸，较高的稳定性，安装简单方便
- 在线咨询
Specification:
额定电流..............................................................30A
额定电压.............................................................1000V
测试电压................................................................6kv(50Hz,lmin
连接器接触电阻....................................................≤ 0.55m
导体材料............................................................Copper,Tin plated
防护等级............................................................IP2X/IP67
安全等级.............................................................II
防火等级.................................................................UL94-V0
RTI.......................................................................110°C
拔出力..................................................................≥ 50N
插入力..................................................................≤ 50N
环境温度范围......................................................-40°C until+85°C
端子尺寸...............................................................4.0
适配线缆规格.......................................................2.5/4.0/6.0mm2
Advantage:
简单，易于安装
标准设计, 可任意安装
具有抗老化、抗紫外线辐射能力
符合户外条件要求

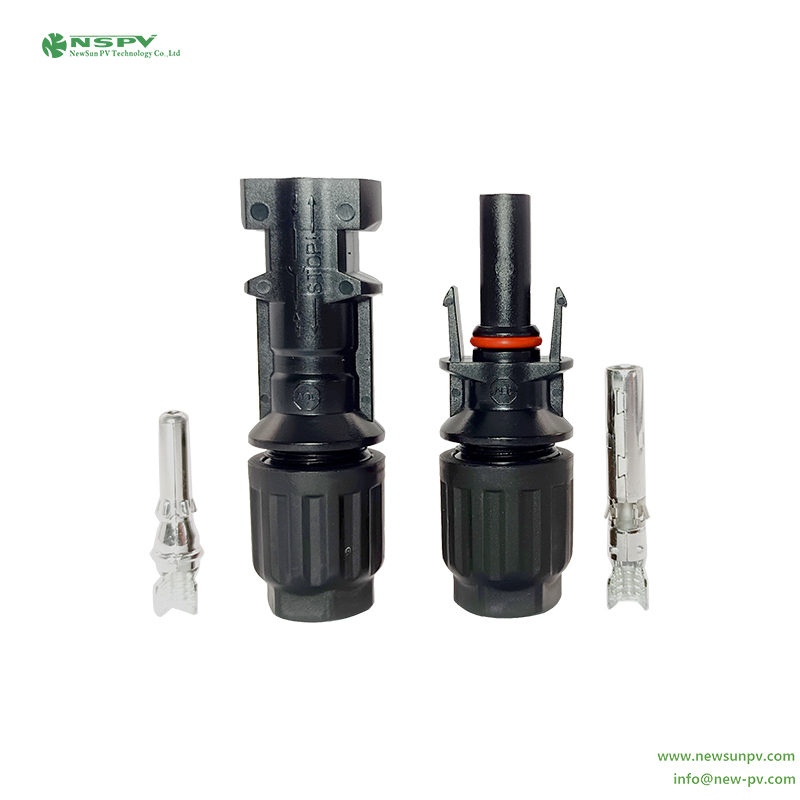

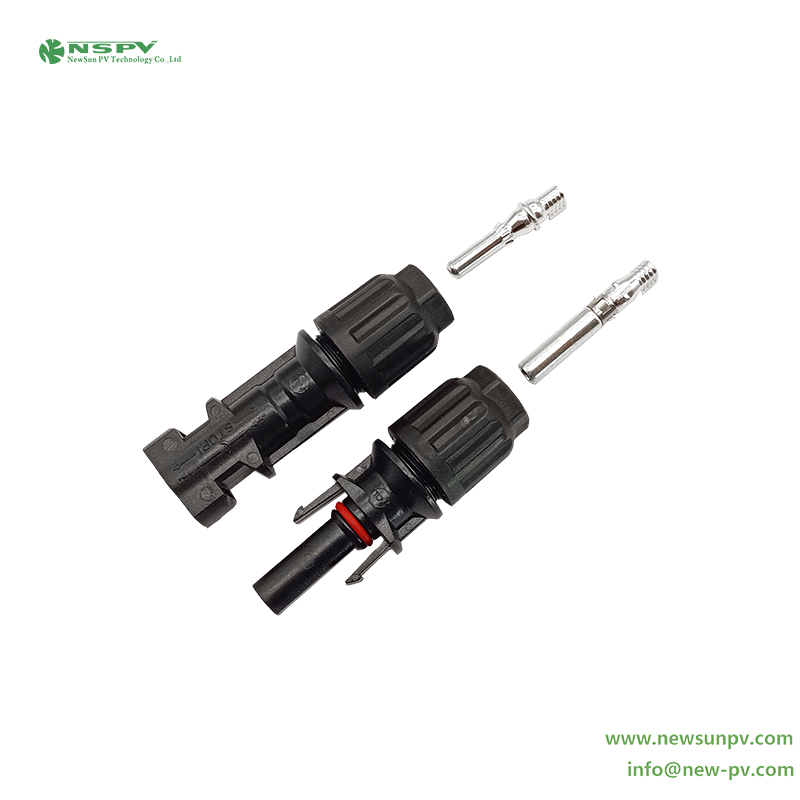

Picture show:
